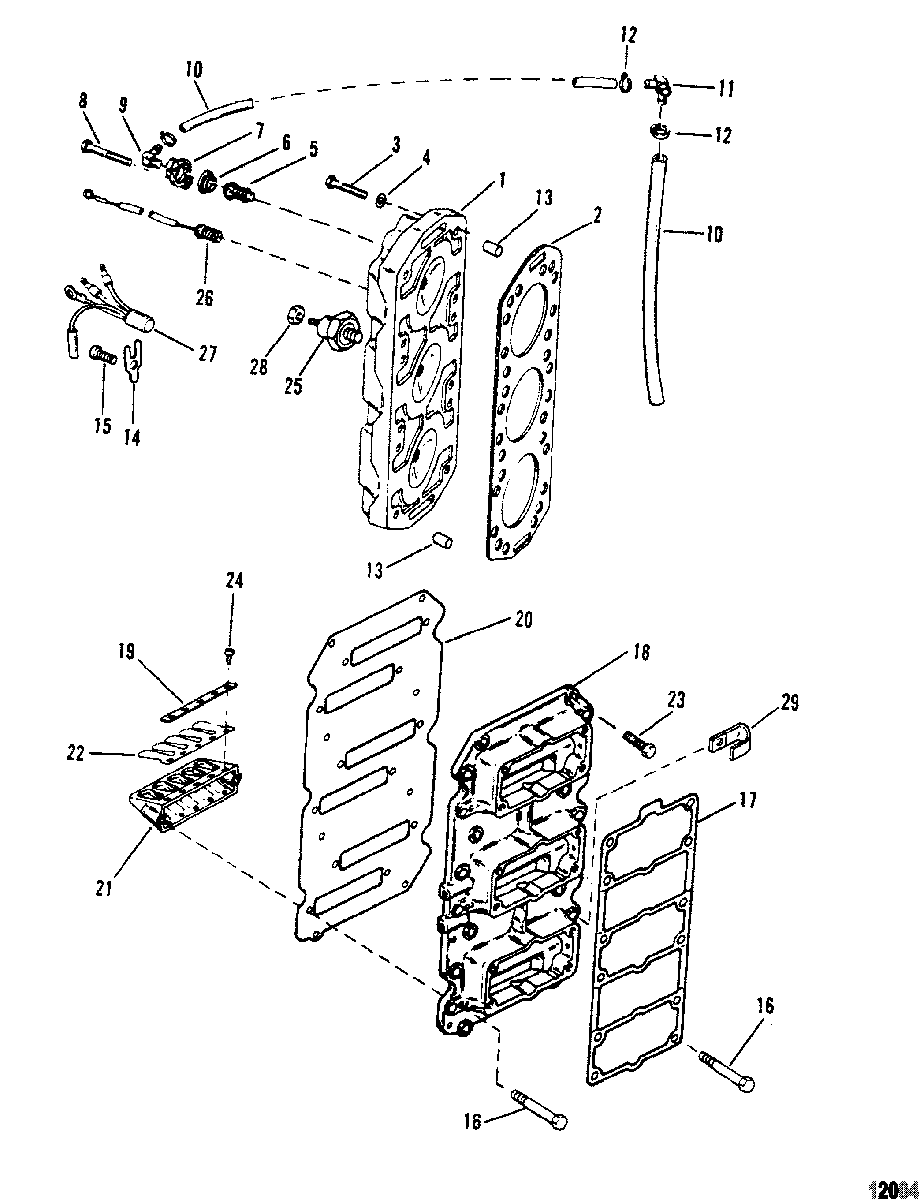

Reed Block And Cylinder Head для Mercury - V-150XRI (EFI) 0D082000 THRU 0G303045
-
№АртикулНазвание
-
1900-8M0143213 CYLINDER HEAD (Casting #18488C3)
(150) SN# 0D262673 & BelowCYLINDER HEAD (Casting #18488C3)
(150) SN# 0D262673 & Below -
1900-8M0143213 CYLINDER HEAD (Casting #18488C3)
(175) SN# 0D262673 & BelowCYLINDER HEAD (Casting #18488C3)
(175) SN# 0D262673 & Below -
1900-8M0143213 CYLINDER HEAD (Casting #18488C3)
(200) SN# 0D262673 & BelowCYLINDER HEAD (Casting #18488C3)
(200) SN# 0D262673 & Below -
118488F2 HEAD (Casting #18488C2)
(200XL/CXL) SN# 0D246107 THRU 0G052594HEAD (Casting #18488C2)
(200XL/CXL) SN# 0D246107 THRU 0G052594 -
1900-8M0143213 CYLINDER HEAD (Casting #18488C4)
(150/175) SN# D262674 & UpCYLINDER HEAD (Casting #18488C4)
(150/175) SN# D262674 & Up -
1900-8M0143213 CYLINDER HEAD (Cast #18488C4)
(200) SN# D26674 THRU G052594CYLINDER HEAD (Cast #18488C4)
(200) SN# D26674 THRU G052594 -
118488F2 CYLINDER HEAD ASSEMBLY (Casting #18488C5)
(200) SN# G052595 & UpCYLINDER HEAD ASSEMBLY (Casting #18488C5)
(200) SN# G052595 & Up -
227-822844T05 GASKETGASKET
-
310-98534 SCREW, (.375-16 x 2.30)
(QTY. OF 24 ON 150/175)SCREW, (.375-16 x 2.30)
(QTY. OF 24 ON 150/175) -
310-13450 SCREW, (.375-16 x 2.30)
(200) SN# G146482 & BelowSCREW, (.375-16 x 2.30)
(200) SN# G146482 & Below -
310-827426 SCREW
(200) SN# G146483 & UpSCREW
(200) SN# G146483 & Up -
412-25909 WASHER, (.406 x .812 x .065), Use Where ApplicableWASHER, (.406 x .812 x .065), Use Where Applicable
-
575692 THERMOSTATTHERMOSTAT
-
627-62386001 GASKETGASKET
-
790390A1 COVER KITCOVER KIT
-
810-35386 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
922-687271 FITTING, (.250-18) 90 Degree - BrassFITTING, (.250-18) 90 Degree - Brass
-
1032-77653101 HOSE, (24.500 Inches Bulk)HOSE, (24.500 Inches Bulk)
-
1122-68728 FITTINGFITTING
-
1254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1317-63779 PIN, Dowel (.250 x .625)PIN, Dowel (.250 x .625)
-
14137151 RETAINERRETAINER
-
1510-98257 SCREW, (.312-18 x .500)SCREW, (.312-18 x .500)
-
1610-55715 SCREW, (.250-20 x .880)SCREW, (.250-20 x .880)
-
1610-90197 SCREW, (.250-20 x 1.125)SCREW, (.250-20 x 1.125)
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
1727-167371 GASKETGASKET
-
1817735A2 ADAPTOR PLATE ASSEMBLYADAPTOR PLATE ASSEMBLY
-
19961832 CLAMP, ReedCLAMP, Reed
-
2027-146972 GASKETGASKET
-
2175953 REED BLOCKREED BLOCK
-
2234-75362A1 REED ASSEMBLYREED ASSEMBLY
-
2310-28668 SCREW, (.250-20 x .875) Stainless SteelSCREW, (.250-20 x .875) Stainless Steel
-
2410-823588 SCREW, (#8-32 x .250)SCREW, (#8-32 x .250)
-
25825164A1 SENSOR ASSEMBLY, Detonation
Black (200) SN# D239647 & BelowSENSOR ASSEMBLY, Detonation
Black (200) SN# D239647 & Below -
25825164 SENSOR, Detonation
Gray (200) SN# D239648 THRU G146482SENSOR, Detonation
Gray (200) SN# D239648 THRU G146482 -
25826858 SENSOR, Knock
(200) SN# G146483 & UpSENSOR, Knock
(200) SN# G146483 & Up -
2697465 SENDER, Temperature, StarboardSENDER, Temperature, Starboard
-
2713536A6 SENSOR ASSEMBLY, Temperature, Port (4-Wire)SENSOR ASSEMBLY, Temperature, Port (4-Wire)
-
2811-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2954-55098 J CLIPJ CLIP
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
