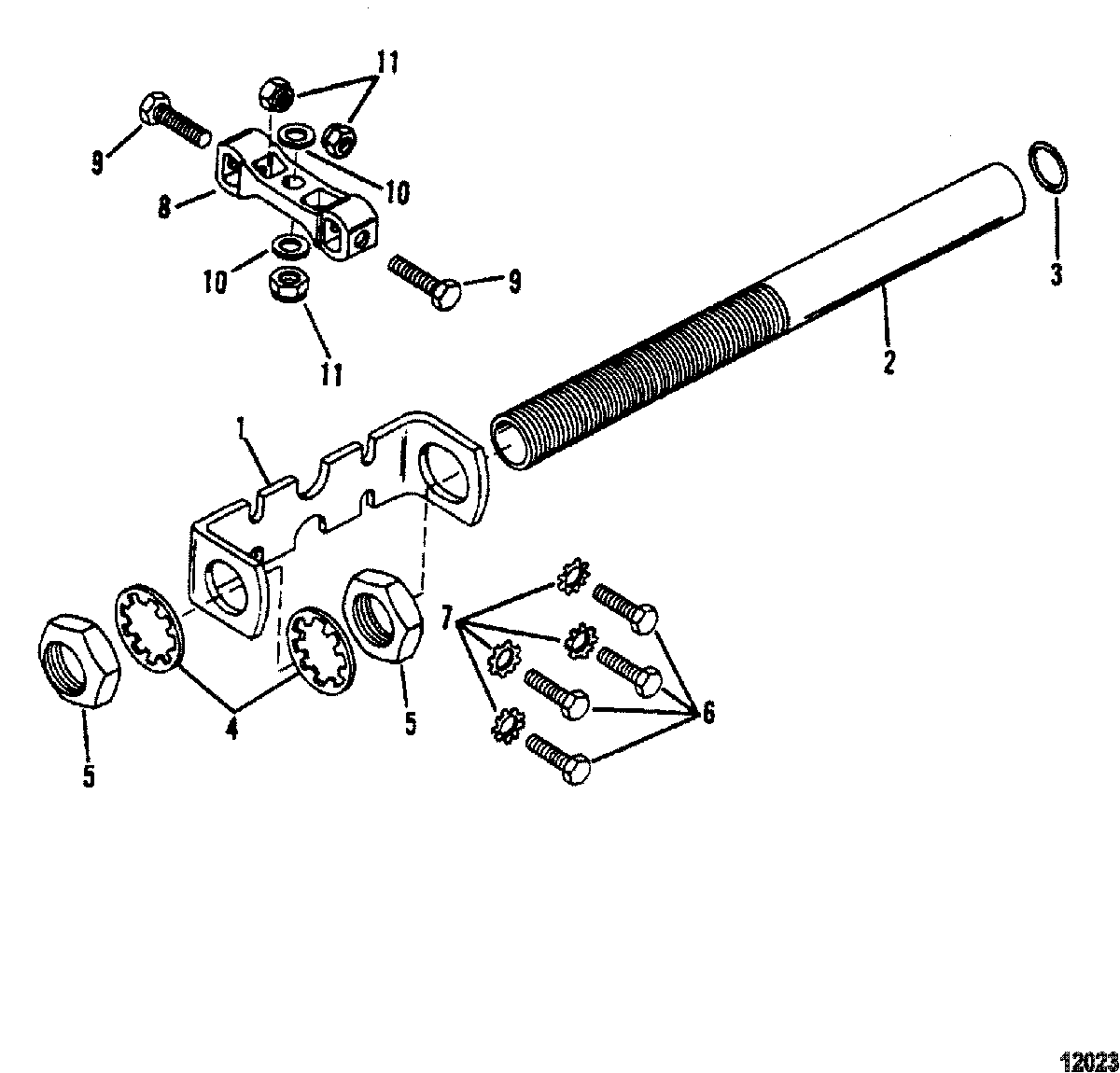

Steering Attaching Kit для Mercury - V-150XRI (EFI) 0D082000 THRU 0G303045
-
№АртикулНазвание
-
-92876A8 ATTACHING KIT, Steering, SingleATTACHING KIT, Steering, Single
-
141055A1 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
271565A2 TUBE ASSEMBLYTUBE ASSEMBLY
-
325-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
413-821203 LOCKWASHERLOCKWASHER
-
511-8M0041651 NUT, (.875-14)NUT, (.875-14)
-
610-38601 SCREW, (.250-28 x 1.250)SCREW, (.250-28 x 1.250)
-
713-93702 WASHER, (.250 External Star)WASHER, (.250 External Star)
-
8850791T COUPLINGCOUPLING
-
910-73732 SCREW, (.375-24 x 1.120)SCREW, (.375-24 x 1.120)
-
1012-34931 WASHER, (.406 x .734 x .063) Stainless SteelWASHER, (.406 x .734 x .063) Stainless Steel
-
1111-8M0042636 NUT, (.375-24)NUT, (.375-24)
