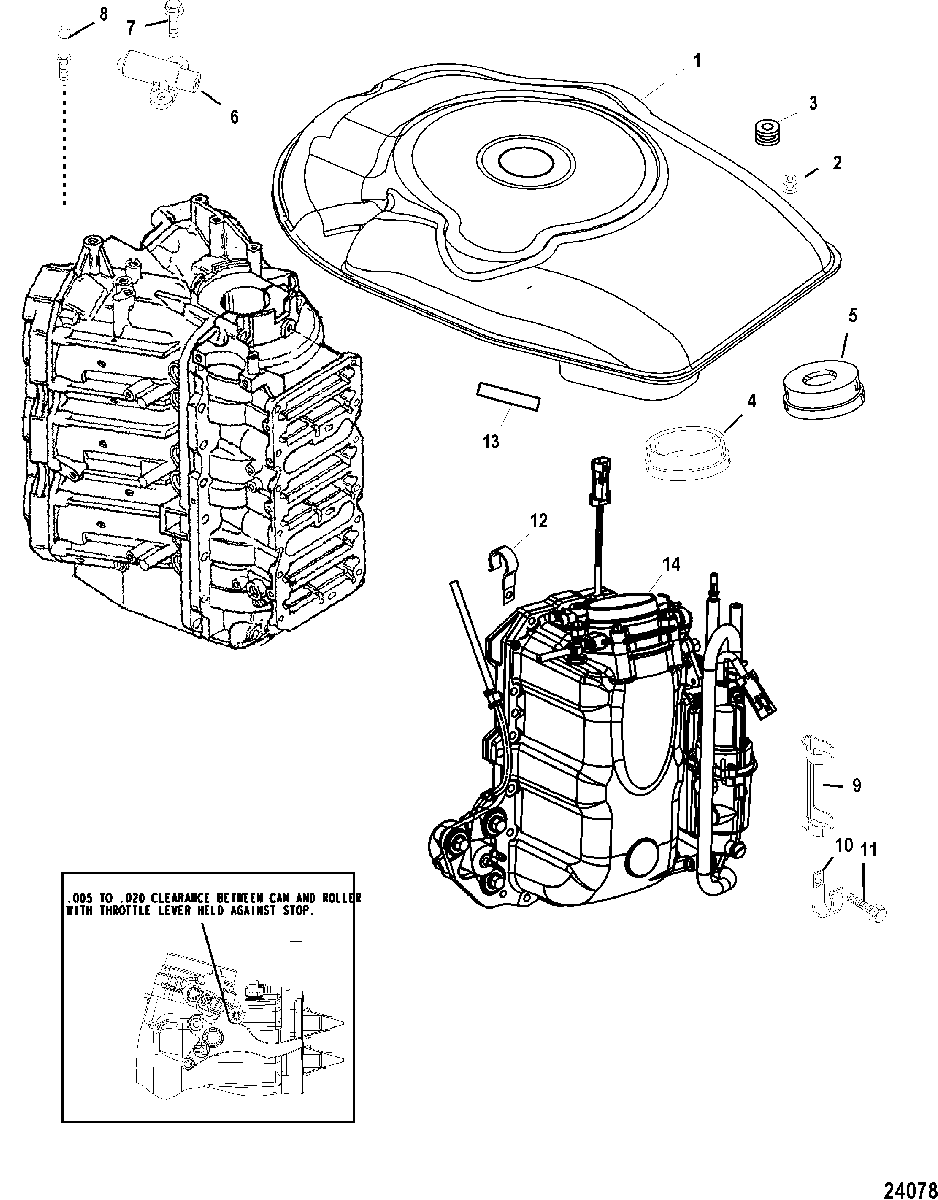

AIR HANDLER для Mercury - V-175 EFI (2.5L) 0T409000 THRU 0T800999
-
№АртикулНазвание
-
1880194T05 COVER ASSEMBLYCOVER ASSEMBLY
-
225-840525 GROMMETGROMMET
-
325-20116 GROMMETGROMMET
-
425-855613 GROMMET
(175/200)GROMMET
(175/200) -
525-882840 GROMMET
(150)GROMMET
(150) -
68M0082988 SENSORSENSOR
-
710-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
88215832 PIN, SpecialPIN, Special
-
98261151 CLAMP, ConnectorCLAMP, Connector
-
1054-883080 J CLIPJ CLIP
-
1110-817504 SCREW, (.250-20 x 1.500) Stainless SteelSCREW, (.250-20 x 1.500) Stainless Steel
-
1254-55098 J CLIPJ CLIP
-
1337-881865 DECAL, Caution-Start in GearDECAL, Caution-Start in Gear
-
14880131T05 AIR HANDLER ASSEMBLY
(See Breakdown on Air Handler Components)AIR HANDLER ASSEMBLY
(See Breakdown on Air Handler Components) -
-883511T04 POWERHEAD ASSEMBLY
(150)POWERHEAD ASSEMBLY
(150) -
-883600T04 POWERHEAD ASSEMBLY
(175/200)POWERHEAD ASSEMBLY
(175/200)
