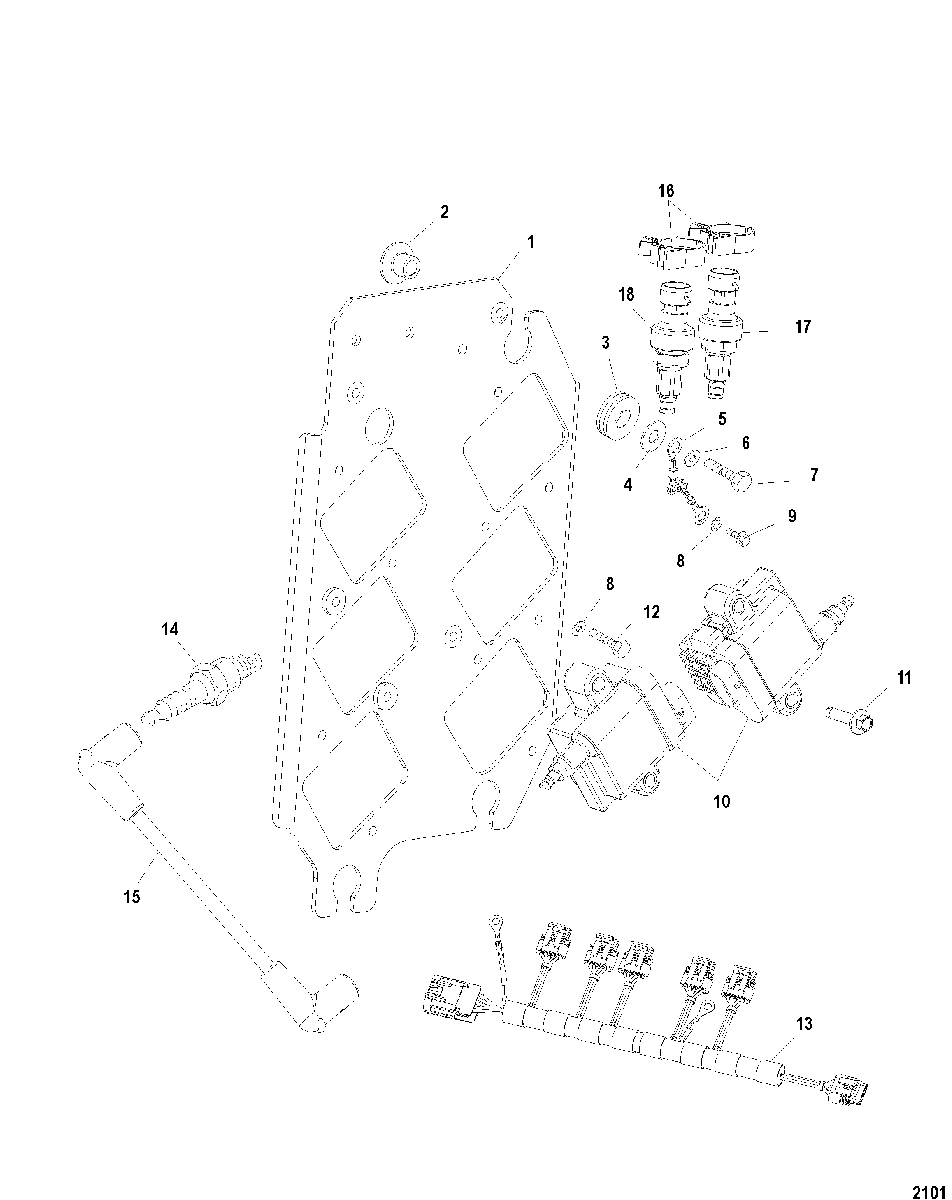

COIL PLATE ASSEMBLY для Mercury - V-175 EFI (2.5L) 0T409000 THRU 0T800999
-
№АртикулНазвание
-
-NSS NOT SOLD SEPARATE, Coil Plate Assembly-CompleteNOT SOLD SEPARATE, Coil Plate Assembly-Complete
-
1880188F1 PLATE, CoilPLATE, Coil
-
223-8502341 BUSHINGBUSHING
-
325-833155 GROMMETGROMMET
-
412-49436 WASHERWASHER
-
584-858414A1 CABLE ASSEMBLY, BraidedCABLE ASSEMBLY, Braided
-
612-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
710-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
910-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
10300-8M0077471 COIL KITCOIL KIT
-
1110-82129130 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
1210-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
1384-882757T1 HARNESS ASSEMBLY, CoilHARNESS ASSEMBLY, Coil
-
-879346A51 HARNESS ASSEMBLY, 5 PinHARNESS ASSEMBLY, 5 Pin
-
1433-14814Q SPARK PLUG, (NGK # BPZ8HS-10)SPARK PLUG, (NGK # BPZ8HS-10)
-
1584-881908T CABLE SET, Hi TensionCABLE SET, Hi Tension
-
1654-883066 CLIP, (.865)CLIP, (.865)
-
17881879A7 SENSOR KIT, (0-50 PSI)
(TAN)SENSOR KIT, (0-50 PSI)
(TAN) -
18881879T11 SENSOR, (0 - 100 PSI)
(BLACK)SENSOR, (0 - 100 PSI)
(BLACK)
