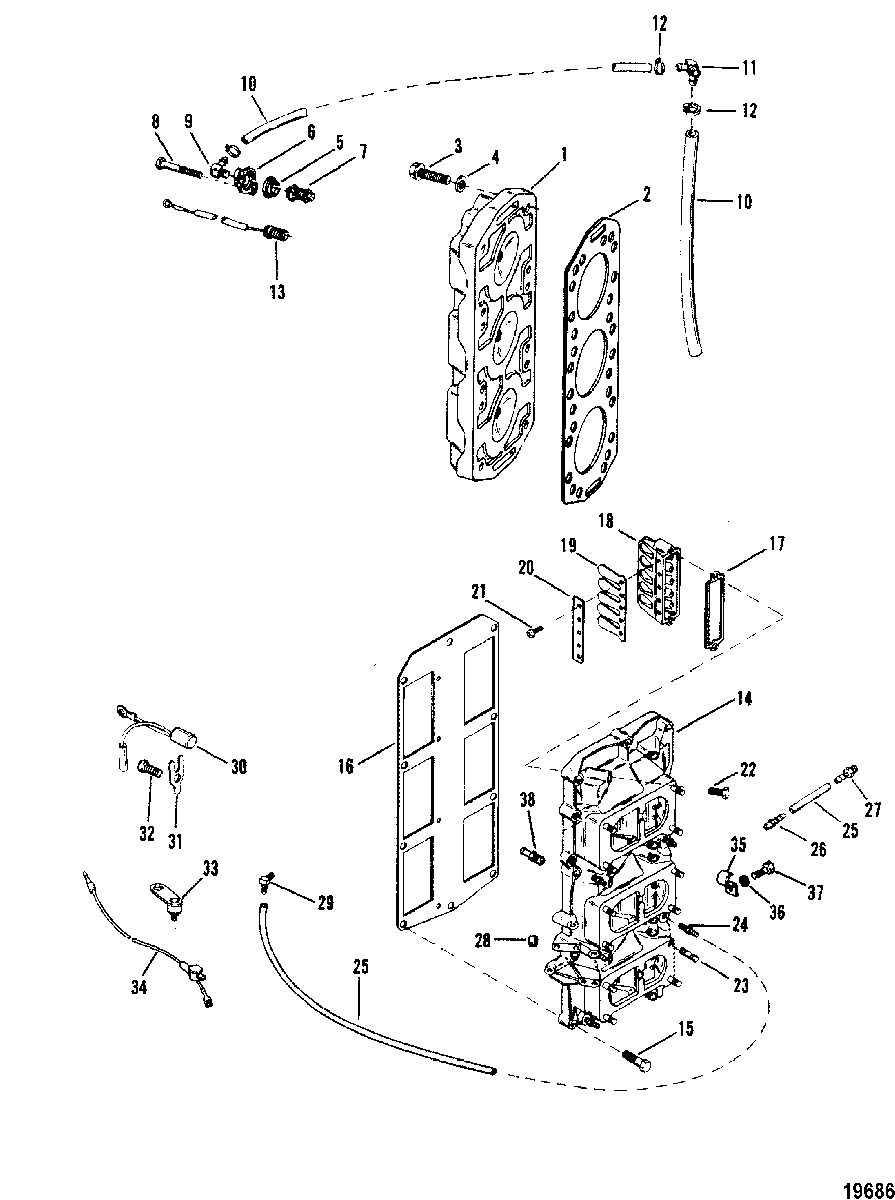

REED BLOCK AND CYLINDER HEAD для Mercury - V-175 0C100861 THRU 0C239552
-
№АртикулНазвание
-
115221A5 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
227-41247T01 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
310-98534 SCREW, (.375-16 x 2.30), CYLINDER HEADSCREW, (.375-16 x 2.30), CYLINDER HEAD
-
412-25909 WASHER, (.406 x .812 x .065), CYLINDER HEAD SCREWWASHER, (.406 x .812 x .065), CYLINDER HEAD SCREW
-
527-62386001 GASKET, THERMOSTATGASKET, THERMOSTAT
-
690390A1 COVER KIT, THERMOSTATCOVER KIT, THERMOSTAT
-
775692 THERMOSTATTHERMOSTAT
-
810-35386 SCREW, (.312-18 x 1.00), THERMOSTAT COVERSCREW, (.312-18 x 1.00), THERMOSTAT COVER
-
922-687271 FITTING, (.250-18) 90 Degree - Brass, WATER HOSESFITTING, (.250-18) 90 Degree - Brass, WATER HOSES
-
1032-77653101 HOSE, (24.500 Inches Bulk), WATER DISTRIBUTIONHOSE, (24.500 Inches Bulk), WATER DISTRIBUTION
-
1122-68728 FITTING, THERMOSTAT COVER TO WATER HOSESFITTING, THERMOSTAT COVER TO WATER HOSES
-
1254-816311T TIE STRAP, WATER HOSESTIE STRAP, WATER HOSES
-
1397465 SENDER, Temperature (STARBOARD)SENDER, Temperature (STARBOARD)
-
1499747A9 HOUSING, REED BLOCKHOUSING, REED BLOCK
-
1510-24878 SCREW, (.250-20 x 1.25), REED BLOCK HOUSINGSCREW, (.250-20 x 1.25), REED BLOCK HOUSING
-
1510-69093 SCREW, (.250-20 x 1.50), REED BLOCK HOUSINGSCREW, (.250-20 x 1.50), REED BLOCK HOUSING
-
1510-69067 SCREW, (.250-20 x 1.375), REED BLOCK HOUSINGSCREW, (.250-20 x 1.375), REED BLOCK HOUSING
-
1627-935361 GASKET, REED BLOCK HOUSINGGASKET, REED BLOCK HOUSING
-
1727-657443 GASKET, REED BLOCKGASKET, REED BLOCK
-
1875953 REED BLOCKREED BLOCK
-
1934-75362A1 REED ASSEMBLYREED ASSEMBLY
-
20961832 CLAMP, ReedCLAMP, Reed
-
2110-57583T SCREW, (#8-32 x .375), REEDS TO REED BLOCKSCREW, (#8-32 x .375), REEDS TO REED BLOCK
-
2210-65746 SCREW, (.250-20 x .750), REED BLOCK ATTACHINGSCREW, (.250-20 x .750), REED BLOCK ATTACHING
-
2316-270372 STUD, (.250-28 x 1.125), CARBURETOR MOUNTINGSTUD, (.250-28 x 1.125), CARBURETOR MOUNTING
-
2421-426585 CHECK VALVECHECK VALVE
-
2532-892024122 TUBING, (20.00 Feet Bulk), BLEED LINETUBING, (20.00 Feet Bulk), BLEED LINE
-
2622-56759 CONNECTOR, BLEED HOSE (PRESS-IN)CONNECTOR, BLEED HOSE (PRESS-IN)
-
2721-64871A2 CHECK VALVECHECK VALVE
-
2821-42657A3 CHECK VALVECHECK VALVE
-
2922-15133 FITTING, BLEED HOSE TO CYLINDER BLOCK (90 DEG.)FITTING, BLEED HOSE TO CYLINDER BLOCK (90 DEG.)
-
3013536A7 SENSOR ASSEMBLY, Temperature (PORT)
(MERCURY/MARINER)SENSOR ASSEMBLY, Temperature (PORT)
(MERCURY/MARINER) -
31137151 RETAINER (QTY. OF 1 W/SEA RAY)RETAINER (QTY. OF 1 W/SEA RAY)
-
3210-98257 SCREW, (.312-18 x .500) (QTY. OF 1 W/SEA RAY)SCREW, (.312-18 x .500) (QTY. OF 1 W/SEA RAY)
-
33187531 SENDER, Temperature
(SEA RAY)SENDER, Temperature
(SEA RAY) -
3484-88824A8 CABLE ASSEMBLY, TEMPERATURE SENDER
(SEA RAY)CABLE ASSEMBLY, TEMPERATURE SENDER
(SEA RAY) -
3554-23567 CLIP (9/16")CLIP (9/16")
-
3554-26404 CLAMP (1")CLAMP (1")
-
368M0084613 C WASHERC WASHER
-
3710-62568 SCREW, (#10-16 x .375)SCREW, (#10-16 x .375)
-
3822-64705 FITTINGFITTING
-
-27-11338A88 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
