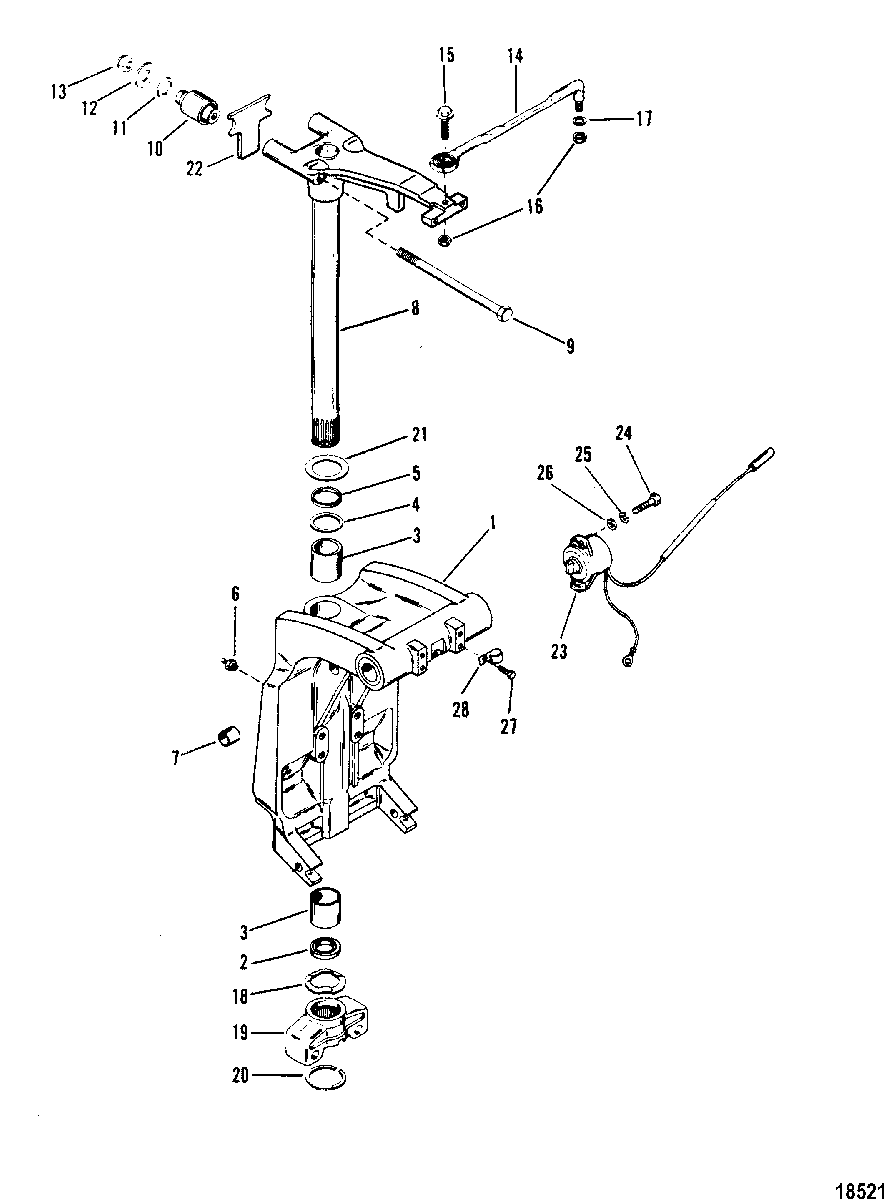

SWIVEL BRACKET AND STEERING ARM для Mercury - V-175 0C100861 THRU 0C239552
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY
(BLACK)SWIVEL BRACKET ASSEMBLY
(BLACK) -
11499-8M0102865 SWIVEL BRACKET ASSEMBLY
(GRAY)SWIVEL BRACKET ASSEMBLY
(GRAY) -
226-87735 SEAL, Oil, SWIVEL BRACKET (LOWER)SEAL, Oil, SWIVEL BRACKET (LOWER)
-
323-818764 BUSHING, SWIVEL BRACKET (LOWER AND UPPER)BUSHING, SWIVEL BRACKET (LOWER AND UPPER)
-
425-33466 O-RING, SWIVEL BRACKET (UPPER)O-RING, SWIVEL BRACKET (UPPER)
-
523-67668 SPACER, SWIVEL BRACKET (UPPER)SPACER, SWIVEL BRACKET (UPPER)
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
817-8M0132731 SWIVEL PIN ASSEMBLY, BlackSWIVEL PIN ASSEMBLY, Black
-
817-8M0132731 SWIVEL PIN ASSEMBLY, GraySWIVEL PIN ASSEMBLY, Gray
-
910-8M0000491 SCREW, (.437-20 x 7.50), STEERING ARM TO UPPER MOUNTSCREW, (.437-20 x 7.50), STEERING ARM TO UPPER MOUNT
-
1077326 MOUNT, RUBBER - UPPER
(LONG)MOUNT, RUBBER - UPPER
(LONG) -
1077326 MOUNT, RUBBER - UPPER
(X-LONG)MOUNT, RUBBER - UPPER
(X-LONG) -
1112-66921 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1212-78688 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1311-34933 NUT, (.437-20) Stainless Steel, UPPER MOUNT BOLTNUT, (.437-20) Stainless Steel, UPPER MOUNT BOLT
-
1492876A12 LINK ASSEMBLY, Steering
(MERCURY AND MARINER)LINK ASSEMBLY, Steering
(MERCURY AND MARINER) -
1510-849838 SCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARM
(MERCURY AND MARINER)SCREW, (.375-24 x 1.25), STEERING LINK TO STEERING ARM
(MERCURY AND MARINER) -
1611-8M0042636 NUT, (.375-24), STEERING LINK SCREW
(MERCURY AND MARINER)NUT, (.375-24), STEERING LINK SCREW
(MERCURY AND MARINER) -
1712-34931 WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM
(MERCURY AND MARINER)WASHER, (.406 x .734 x .063) Stainless Steel, STEERING LINK TO STEERING ARM
(MERCURY AND MARINER) -
1813-78854 WAVE WASHER, BOTTOM YOKEWAVE WASHER, BOTTOM YOKE
-
19878182T01 YOKE ASSEMBLY, Bottom
(BLACK)YOKE ASSEMBLY, Bottom
(BLACK) -
19878182T01 YOKE ASSEMBLY, Bottom
(GRAY)YOKE ASSEMBLY, Bottom
(GRAY) -
2053-67684 RING, Retaining, BOTTOM YOKERING, Retaining, BOTTOM YOKE
-
2112-67670 WASHER, THRUST - SWIVEL BRACKETWASHER, THRUST - SWIVEL BRACKET
-
2288882 BUMPER, Top YokeBUMPER, Top Yoke
-
238M0098273 SENDER ASSEMBLY, TrimSENDER ASSEMBLY, Trim
-
2410-852368 SCREW, (#10-24 x .750), TRIM SENDERSCREW, (#10-24 x .750), TRIM SENDER
-
2513-26996 LOCKWASHER, (#10) Stainless Steel, TRIM SENDER SCREWLOCKWASHER, (#10) Stainless Steel, TRIM SENDER SCREW
-
2612-89302 WASHER, (.203 x .406 x .040), TRIM SENDER SCREWWASHER, (.203 x .406 x .040), TRIM SENDER SCREW
-
2710-64014 SCREW, (.250-28 x .500), SWIVEL BRACKETSCREW, (.250-28 x .500), SWIVEL BRACKET
-
2854-54457 J CLIPJ CLIP
-
-27-11338A88 GASKET SET, Engine OverhaulGASKET SET, Engine Overhaul
