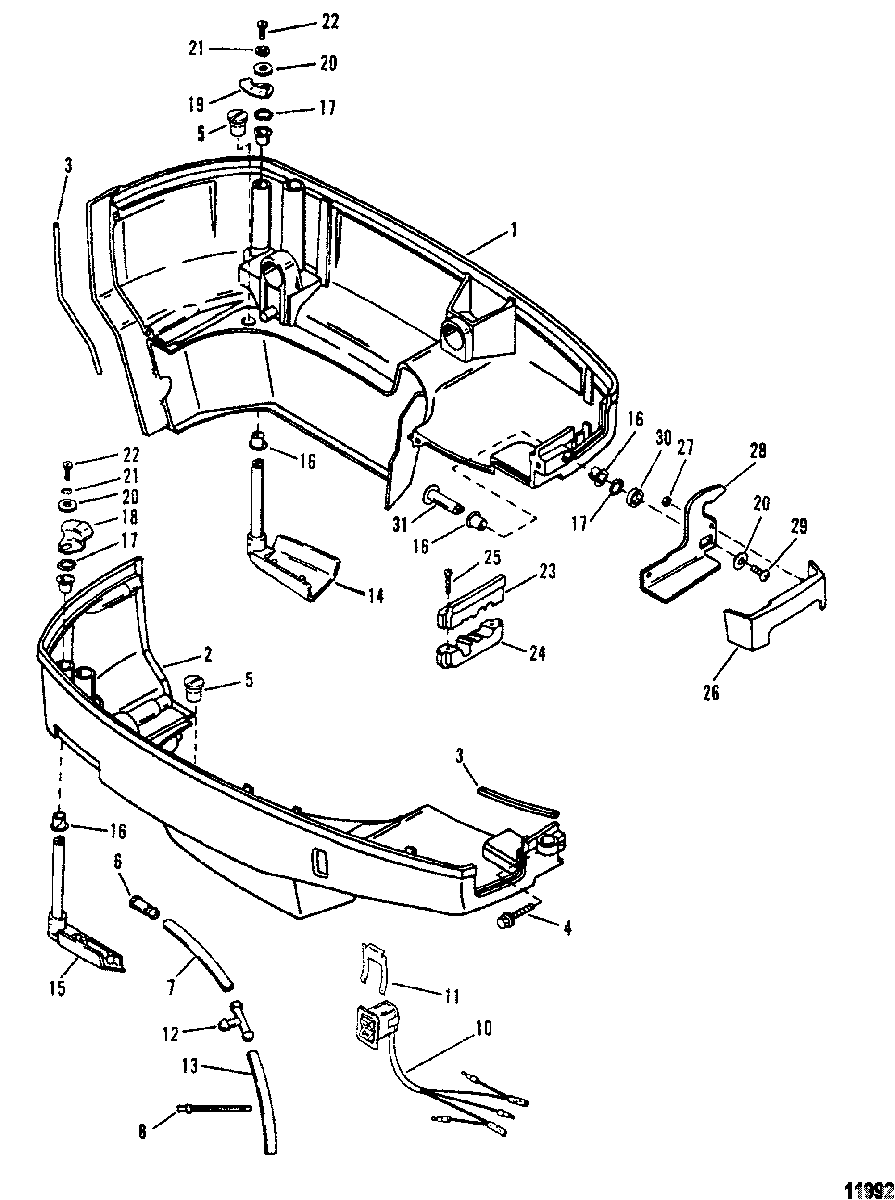

Bottom Cowl для Mercury - V-175XRI (EFI) 0D082000 THRU 0G303045
-
№АртикулНазвание
-
12197-9744A16 BOTTOM COWL ASSEMBLY, Black
(Port)BOTTOM COWL ASSEMBLY, Black
(Port) -
12197-9744A16 BOTTOM COWL ASSEMBLY , Gray
(Port)BOTTOM COWL ASSEMBLY , Gray
(Port) -
12197-9744A16 BOTTOM COWL ASSEMBLY, Tracker
(Port)BOTTOM COWL ASSEMBLY, Tracker
(Port) -
22197-9745A5 BOTTOM COWL ASSEMBLY, Black
(Starboard)BOTTOM COWL ASSEMBLY, Black
(Starboard) -
22197-9745A6 BOTTOM COWL ASSEMBLY, Gray
(Starboard)BOTTOM COWL ASSEMBLY, Gray
(Starboard) -
22197-9745A7 BOTTOM COWL ASSEMBLY, Tracker
(Starboard)BOTTOM COWL ASSEMBLY, Tracker
(Starboard) -
318701A1 SEAL KIT, Bottom CowlsSEAL KIT, Bottom Cowls
-
410-18699 SCREW, (.250-20 x 1.320), Cowl
(Starboard)SCREW, (.250-20 x 1.320), Cowl
(Starboard) -
521-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
622-813613 FITTING, Tell TaleFITTING, Tell Tale
-
732-8M0108355 LINE, (57.00 Inches Bulk), Tell TaleLINE, (57.00 Inches Bulk), Tell Tale
-
854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1087-8M0042301 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
118M0032848 RETAINERRETAINER
-
1222-815914 T-FITTING, Tell TaleT-FITTING, Tell Tale
-
1332-77653101 HOSE, (24.500 Inches Bulk)HOSE, (24.500 Inches Bulk)
-
1419648A2 HANDLE ASSEMBLY, Black
(Port)HANDLE ASSEMBLY, Black
(Port) -
1419648A2 HANDLE ASSEMBLY, Gray
(Port)HANDLE ASSEMBLY, Gray
(Port) -
1419648A7 HANDLE ASSEMBLY, Tracker
(Port)HANDLE ASSEMBLY, Tracker
(Port) -
1519647A3 HANDLE ASSEMBLY, Black
(Starboard)HANDLE ASSEMBLY, Black
(Starboard) -
1519647A3 HANDLE ASSEMBLY, Gray
(Starboard)HANDLE ASSEMBLY, Gray
(Starboard) -
1519647A7 HANDLE ASSEMBLY, Tracker
(Starboard)HANDLE ASSEMBLY, Tracker
(Starboard) -
1623-65830 NYLINERNYLINER
-
1713-99611 WAVE WASHERWAVE WASHER
-
1819369 PAWL
(Starboard)PAWL
(Starboard) -
1919370 PAWL
(Port)PAWL
(Port) -
2012-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
2113-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
2210-73286 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
2354-19749 CLAMP, UpperCLAMP, Upper
-
2454-197481 CLAMP, LowerCLAMP, Lower
-
2510-92799 SCREW, (#10-16 x 1.12)SCREW, (#10-16 x 1.12)
-
2618872A1 COVER ASSEMBLY, BlackCOVER ASSEMBLY, Black
-
2618872A1 COVER ASSEMBLY, GrayCOVER ASSEMBLY, Gray
-
2618872A4 COVER ASSEMBLY, TrackerCOVER ASSEMBLY, Tracker
-
2711-8136921 LOCKNUTLOCKNUT
-
288130764 FRONT HANDLEFRONT HANDLE
-
2910-181921 SCREW, (.250-20 x .875)SCREW, (.250-20 x .875)
-
3023-19666 BUSHINGBUSHING
-
3118727 RODROD
