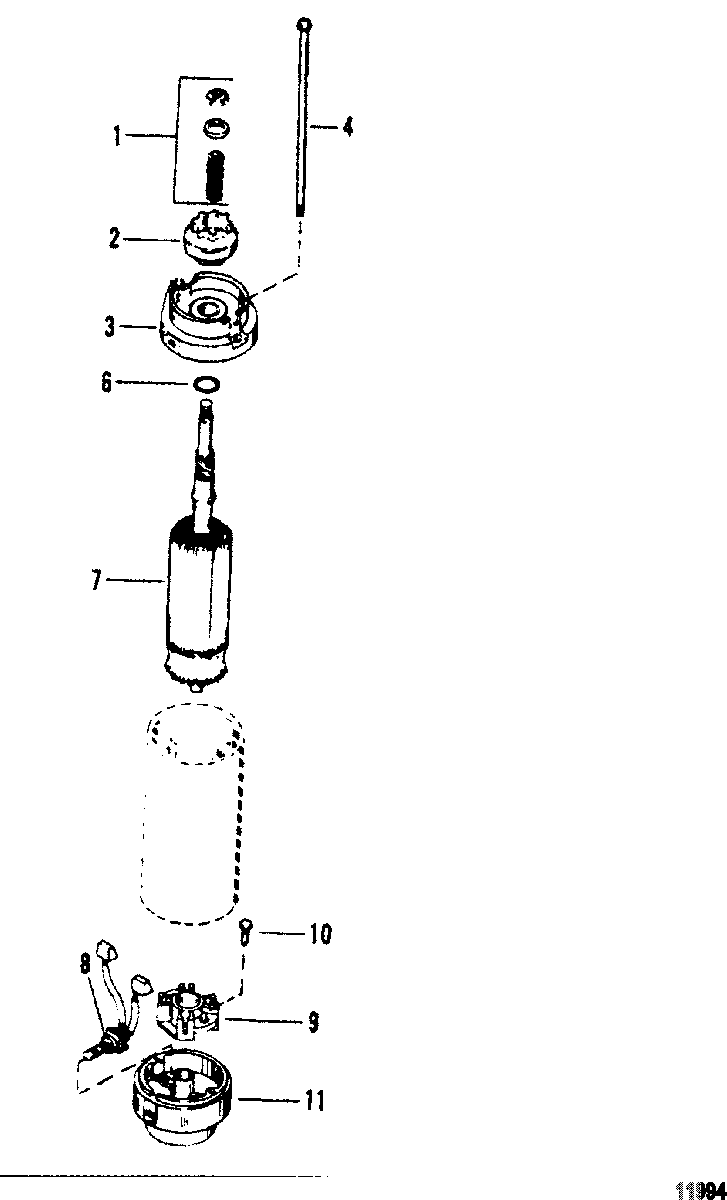

Starter Motor для Mercury - V-175XRI (EFI) 0D082000 THRU 0G303045
-
№АртикулНазвание
-
-50-893893 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
190645 DRIVE KITDRIVE KIT
-
213310T1 PINION ASSEMBLY, DrivePINION ASSEMBLY, Drive
-
375660 PLATEPLATE
-
410-74968 BOLTBOLT
-
5N.S.S. Not Sold Separate, Washer
(American Bosch #WA3122)Not Sold Separate, Washer
(American Bosch #WA3122) -
779216 ARMATUREARMATURE
-
8898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
9898265014 HOLDERHOLDER
-
10N.S.S. Not Sold Separate, Screw
(American Bosch #02441-22-SC-30SM)Not Sold Separate, Screw
(American Bosch #02441-22-SC-30SM) -
1115386001 END CAPEND CAP
