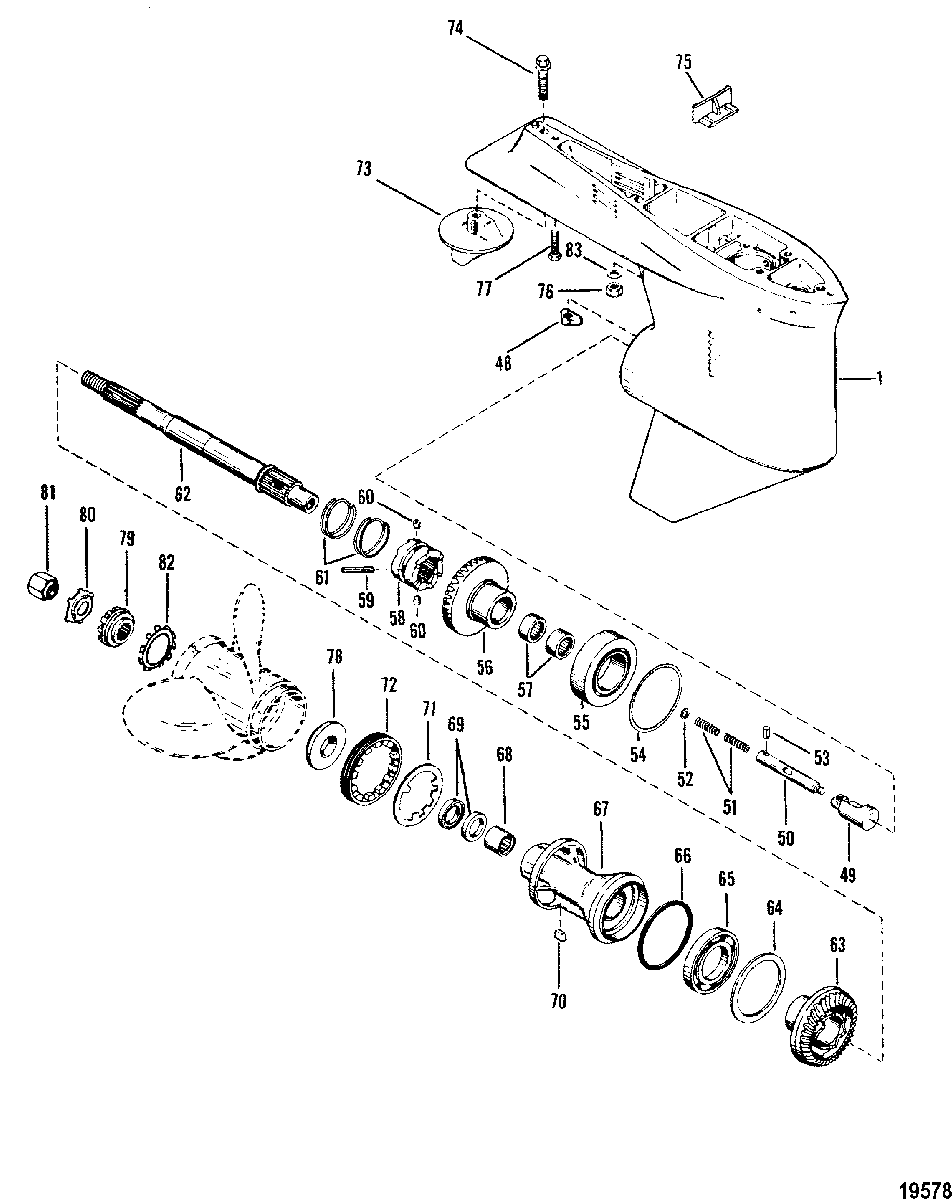

Gear Housing(Prop-Standard Rotation135/150/175/200) для Mercury - V-200 (2.5L) 1991 ONLY 0C291520 THRU 0D081999
-
№АртикулНазвание
-
-1647-9148T81 GEAR HOUSING (LONG) (BLACK)
(135/150)GEAR HOUSING (LONG) (BLACK)
(135/150) -
-1647-9148T82 GEAR HOUSING (X-LONG)(BLACK)
(135/150)GEAR HOUSING (X-LONG)(BLACK)
(135/150) -
-1647-9148T81 GEAR HOUSING (LONG)(GRAY)
(135/150)GEAR HOUSING (LONG)(GRAY)
(135/150) -
-1647-9148T82 GEAR HOUSING (X-LONG) (GRAY)
(135/150)GEAR HOUSING (X-LONG) (GRAY)
(135/150) -
-1647-9148T84 GEAR HOUSING (LONG)(BLACK)
(175/200)GEAR HOUSING (LONG)(BLACK)
(175/200) -
-1647-9148T85 GEAR HOUSING (X-LONG)(BLACK)
(175/200)GEAR HOUSING (X-LONG)(BLACK)
(175/200) -
-1647-9148T84 GEAR HOUSING (LONG)(GRAY)
(175/200)GEAR HOUSING (LONG)(GRAY)
(175/200) -
-1647-9148T85 GEAR HOUSING (X-LONG)(GRAY)
(175/200)GEAR HOUSING (X-LONG)(GRAY)
(175/200) -
11647-9148T47 GEAR HOUSING ASSEMBLY (BLACK)(BASIC)GEAR HOUSING ASSEMBLY (BLACK)(BASIC)
-
11647-9148T47 GEAR HOUSING ASSEMBLY (GRAY) (BASIC)GEAR HOUSING ASSEMBLY (GRAY) (BASIC)
-
48789562 SHIFT CAMSHIFT CAM
-
4989594A1 FOLLOWER, CAMFOLLOWER, CAM
-
5079911A1 ROD, CLUTCH ACTUATORROD, CLUTCH ACTUATOR
-
5124-79910 SPRING, COMPRESSIONSPRING, COMPRESSION
-
5212-78910 WASHER, COMPRESSION SPRINGWASHER, COMPRESSION SPRING
-
5317-8M0084245 PIN, SPRING LOCATORPIN, SPRING LOCATOR
-
5415-47397A1 SHIM SET, BEARING OUTER RACE (.002-3-5-10)SHIM SET, BEARING OUTER RACE (.002-3-5-10)
-
5531-78172A1 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
5643-44102A2 FORWARD GEAR ASSEMBLY
(135/150)FORWARD GEAR ASSEMBLY
(135/150) -
5643-44104T2 FORWARD GEAR ASSEMBLY
(175/200)FORWARD GEAR ASSEMBLY
(175/200) -
5731-73363T ROLLER BEARING (5/8")ROLLER BEARING (5/8")
-
5731-549281 ROLLER BEARING (1")ROLLER BEARING (1")
-
5852-8M0100493 RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
5917-8M0084243 PIN, Cross, RATCHET TO PROPELLER SHAFTPIN, Cross, RATCHET TO PROPELLER SHAFT
-
6017-78909 PIN, Detent, RATCHETPIN, Detent, RATCHET
-
6124-78962 SPRING, RETAINING-CROSS PINSPRING, RETAINING-CROSS PIN
-
6244-94148 PROPELLER SHAFTPROPELLER SHAFT
-
63NSS NOT SOLD SEPARATE, Reverse Gear (Part of 43-44102A2 or 43-44104A2)NOT SOLD SEPARATE, Reverse Gear (Part of 43-44102A2 or 43-44104A2)
-
64681001 RING, Thrust, BEARING CARRIERRING, Thrust, BEARING CARRIER
-
6530-88957T BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
6625-31534 O-RING, BEARING CARRIERO-RING, BEARING CARRIER
-
6743567T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
6831-30956T ROLLER BEARING, BEARING CARRIERROLLER BEARING, BEARING CARRIER
-
6926-76868 SEAL, BEARING CARRIERSEAL, BEARING CARRIER
-
7028-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
7114-79447 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
728M2000347 RETAINER, GEAR HOUSINGRETAINER, GEAR HOUSING
-
7397-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSINGTRIM TAB ASSEMBLY, GEAR HOUSING
-
7410-66024 SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSINGSCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING
-
758M0039169 FILLER BLOCKFILLER BLOCK
-
7611-34933 NUT, (.437-20)NUT, (.437-20)
-
7710-65210 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
7710-74727 SCREW, (.375-16 X 6.00)SCREW, (.375-16 X 6.00)
-
7812-835467Q01 THRUST HUBTHRUST HUB
-
7912-31211Q03 WASHER, SplinedWASHER, Splined
-
8014-816629Q TAB WASHERTAB WASHER
-
8111-52707Q1 NUT, PropellerNUT, Propeller
-
8213-423511 LOCKWASHER, ToothedLOCKWASHER, Toothed
-
8312-45176 WASHER, (.453 x .812 x .105)WASHER, (.453 x .812 x .105)
-
-26-89238A2 SEAL KITSEAL KIT
-
-27-815791A92 GASKET SET
(135/150)GASKET SET
(135/150) -
-27-815791A92 GASKET SET
(XR4/Magnum II/175)GASKET SET
(XR4/Magnum II/175) -
-27-815791A92 GASKET SET
(200)GASKET SET
(200)
