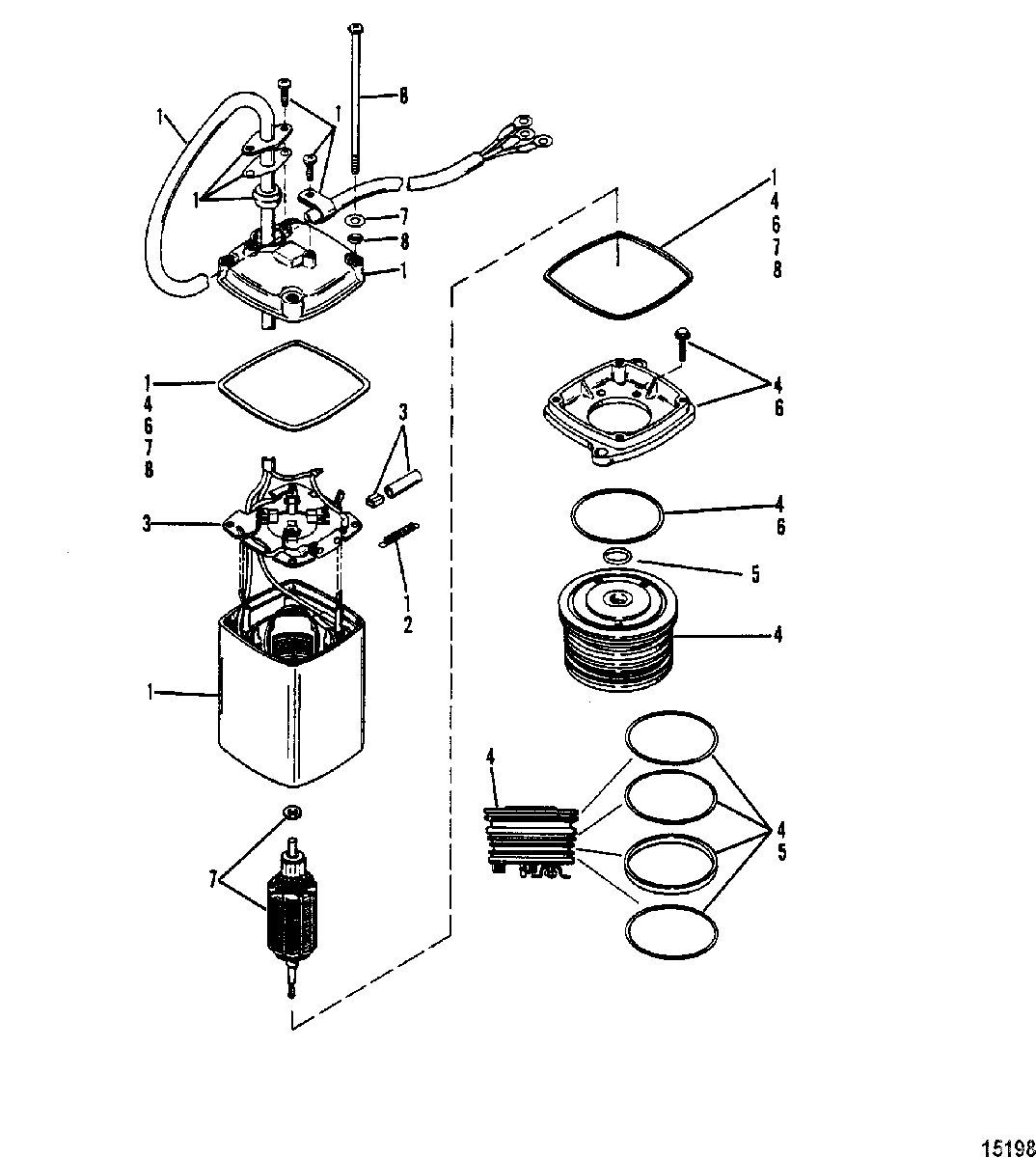

Power Trim Pump(Use With Design I Power Trim Pump) для Mercury - V-200 (2.5L) 1991 ONLY 0C291520 THRU 0D081999
-
№АртикулНазвание
-
-826729A10 PUMP AND MOTORPUMP AND MOTOR
-
1826729A10 FRAME AND FIELD KITFRAME AND FIELD KIT
-
212665 BRUSH SPRING KITBRUSH SPRING KIT
-
3826729A10 BRUSH CARD KITBRUSH CARD KIT
-
4826729A10 PUMP AND END FRAME KITPUMP AND END FRAME KIT
-
5126631 PUMP SEAL KITPUMP SEAL KIT
-
6826729A10 END FRAME KITEND FRAME KIT
-
7826729A10 ARMATURE KITARMATURE KIT
-
812664 THRU BOLT KITTHRU BOLT KIT
Все узлы модели:
- Bottom Cowl
- Carburetor
- Choke Plate and Throttle Levers
- Crankshaft(Connecting Rod Forging # is 636-8118)
- Crankshaft(Connecting Rod Forging # is 644-818141)
- Cylinder Block and End Caps
- Driveshaft Housing
- Dual Engine Extension Kit
- Exhaust Manifold and Exhaust Plate
- Flywheel/Starter Motor
- Fuel Lines
- Fuel Pump
- Gear Housing(Drive-Standard/Counter Rotation)
- Gear Housing(Prop-Counter Rotation 135/150/175/200)
- Gear Housing(Prop-Standard Rotation135/150/175/200)
- Gear Housing(Propshaft)(XR4/Magnum II)
- Ignition Coil/Voltage Regulator
- Instrumentation
- Key Switch Assembly
- Oil Injection Components
- Power Steering Components
- Power Trim Components(Design I)
- Power Trim Components(Design II)
- Power Trim Motor(Use With Design II Power Trim System)
- • Power Trim Pump(Use With Design I Power Trim Pump)
- Reed Block and Cylinder Head
- Service/Support Material
- Starter Motor Assembly
- Steering Attaching Kit(XR4/ Magnum II)
- Swivel Bracket(Casting #1499-8710-6)
- Swivel Bracket(Casting #1499-8710-7)
- Throttle Lever and Shift Shaft
- Top Cowl and Front Shield
- Transom Brackets
- Wiring Harness/Starter Solenoid
