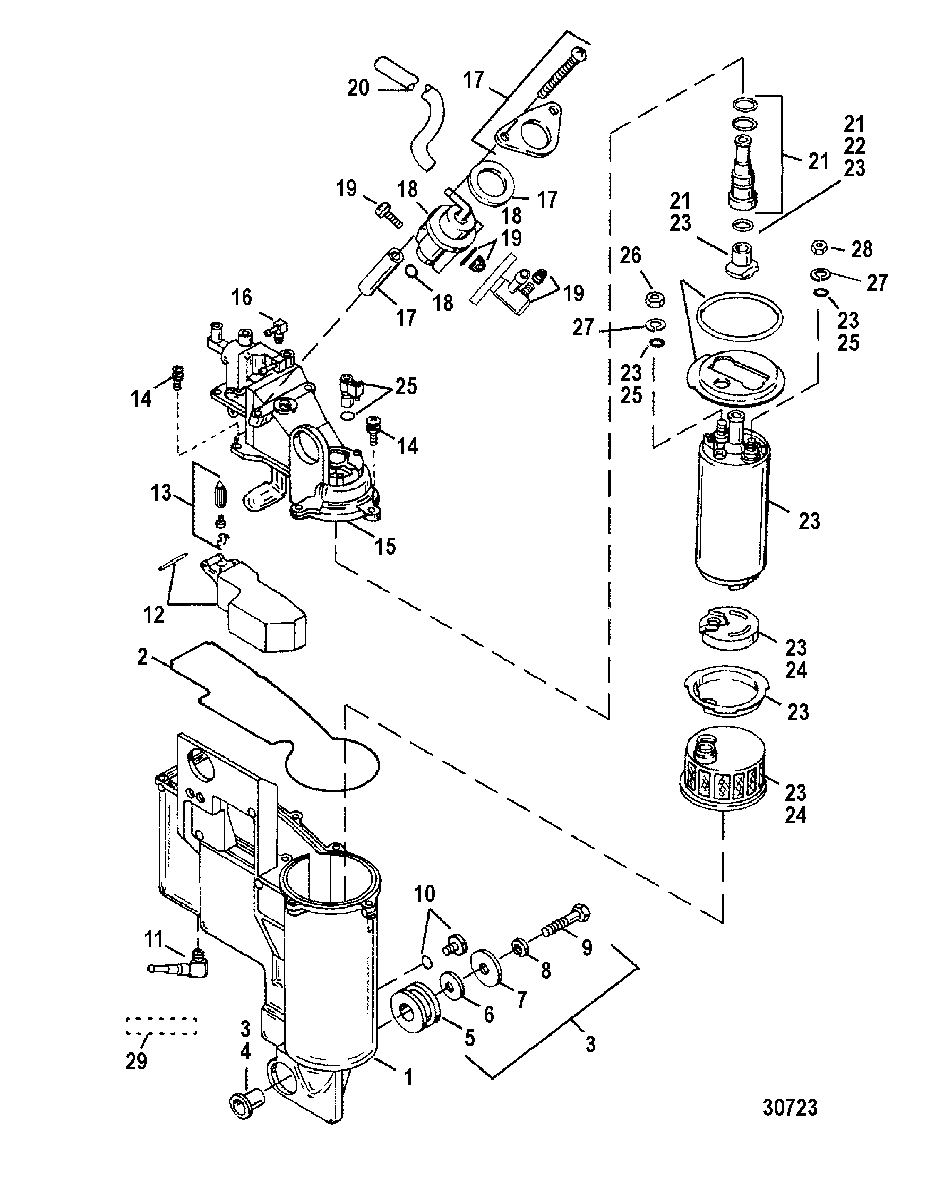

FUEL MANAGEMENT SYSTEM для Mercury - V-200 (EFI) 0G960500 THRU 0T408999
-
№АртикулНазвание
-
-14817A31 MANAGEMENT ASSEMBLY, FuelMANAGEMENT ASSEMBLY, Fuel
-
18140111 BODY KITBODY KIT
-
2809086 O-RINGO-RING
-
3809092A1 SCREW KIT, MountingSCREW KIT, Mounting
-
423-809078 COLLARCOLLAR
-
525-88033 GROMMETGROMMET
-
612-8090622 WASHERWASHER
-
712-8090621 WASHERWASHER
-
813-400256 LOCKWASHERLOCKWASHER
-
910-8090611 SCREWSCREW
-
1010-809091 SCREW KITSCREW KIT
-
1121-424811 VALVEVALVE
-
1215445 FLOAT KITFLOAT KIT
-
1315446 VALVE KIT, FloatVALVE KIT, Float
-
1410-8140762 SCREW KITSCREW KIT
-
158140102 COVER KITCOVER KIT
-
1622-8090851 ELBOW KITELBOW KIT
-
17809087 ATTACHING KITATTACHING KIT
-
188140122 REGULATOR KIT, Fuel PressureREGULATOR KIT, Fuel Pressure
-
19814233A02 SCHRADER VALVE KITSCHRADER VALVE KIT
-
2032-8276943 TUBING KITTUBING KIT
-
21809089 FITTING KIT, Fuel PumpFITTING KIT, Fuel Pump
-
2215029 O-RING AND SEAL KITO-RING AND SEAL KIT
-
23808505T01 PUMP KIT, FuelPUMP KIT, Fuel
-
24808504T1 STRAINER KITSTRAINER KIT
-
258090901 CONNECTION KITCONNECTION KIT
-
2611-8237515 NUT, (M4)NUT, (M4)
-
2713-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
2811-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
2937-80466900 DECAL, EPA Label Information
(2000) (SEE NOTE)DECAL, EPA Label Information
(2000) (SEE NOTE)
