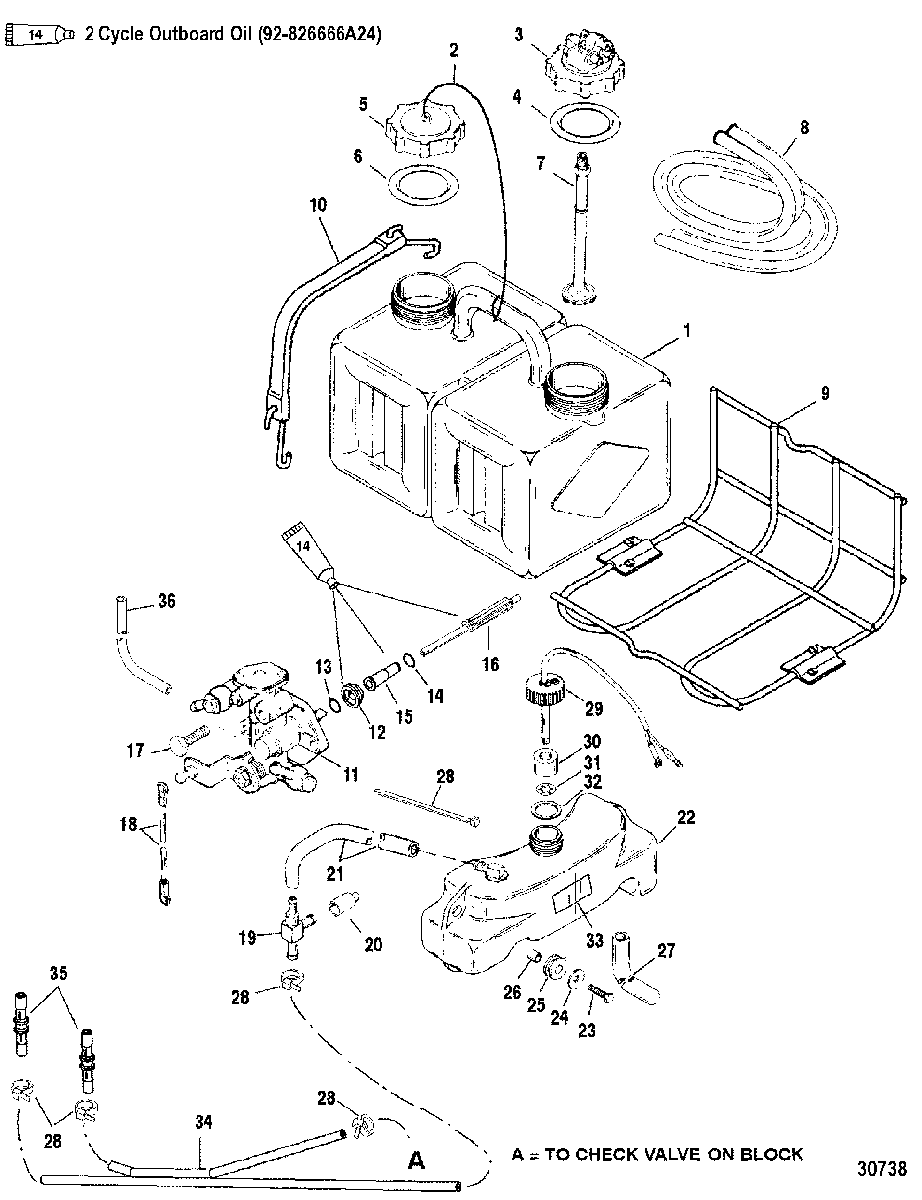

OIL INJECTION COMPONENTS для Mercury - V-200 (EFI) 0G960500 THRU 0T408999
-
№АртикулНазвание
-
-1257-8742A22 TANK ASSEMBLY, Remote OilTANK ASSEMBLY, Remote Oil
-
11257-87421 TANKTANK
-
2NSS NOT SOLD SEPARATE, CORDNOT SOLD SEPARATE, CORD
-
3816190A4 SENDER ASSEMBLY, Oil LevelSENDER ASSEMBLY, Oil Level
-
425-11332 O-RING, (2.225 x .210)O-RING, (2.225 x .210)
-
536-43298A2 CAP ASSEMBLYCAP ASSEMBLY
-
625-11332 O-RING, (2.225 x .210)O-RING, (2.225 x .210)
-
732-99802 TUBETUBE
-
832-99439 HOSE, (114.00 Inches)HOSE, (114.00 Inches)
-
912335A1 BRACKET KITBRACKET KIT
-
1012323A1 CORD/HOOK KITCORD/HOOK KIT
-
11815699T PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
128141032 BUSHING, WormBUSHING, Worm
-
1325-11379 O-RINGO-RING
-
1425-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
1523-859112 BEARINGBEARING
-
1643-8591111 GEAR, DrivenGEAR, Driven
-
1710-32228 SCREW, (#10-32 x .625)SCREW, (#10-32 x .625)
-
1710-41507 SCREW, (#10-32 x 1.120)SCREW, (#10-32 x 1.120)
-
181938512 LINK ASSEMBLYLINK ASSEMBLY
-
1922-424254 FITTINGFITTING
-
20NSS NOT SOLD SEPARATE, PLUGNOT SOLD SEPARATE, PLUG
-
2132-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 6 IN.)HOSE, (57.00 Inches Bulk) (Cut to 6 IN.)
-
22994436 RESERVOIRRESERVOIR
-
2310-690201 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
2412-42118 WASHERWASHER
-
2525-42117 GROMMETGROMMET
-
2623-42116 BUSHINGBUSHING
-
2732-82381455 TUBING, (25.00 Inches Bulk) (Cut to 4-3/4 IN.)TUBING, (25.00 Inches Bulk) (Cut to 4-3/4 IN.)
-
2854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2936-43300A5 CAP ASSEMBLYCAP ASSEMBLY
-
3099022A1 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
3111-99265 PUSH NUTPUSH NUT
-
3227-43307T GASKETGASKET
-
33NSS NOT SOLD SEPARATE, DECAL, Reservoir WarningNOT SOLD SEPARATE, DECAL, Reservoir Warning
-
3432-8588531 HOSEHOSE
-
3522-858955 CONNECTORCONNECTOR
-
3632-82381335 TUBING, (15.00 Inches Bulk) (Cut to 7 IN.)TUBING, (15.00 Inches Bulk) (Cut to 7 IN.)
