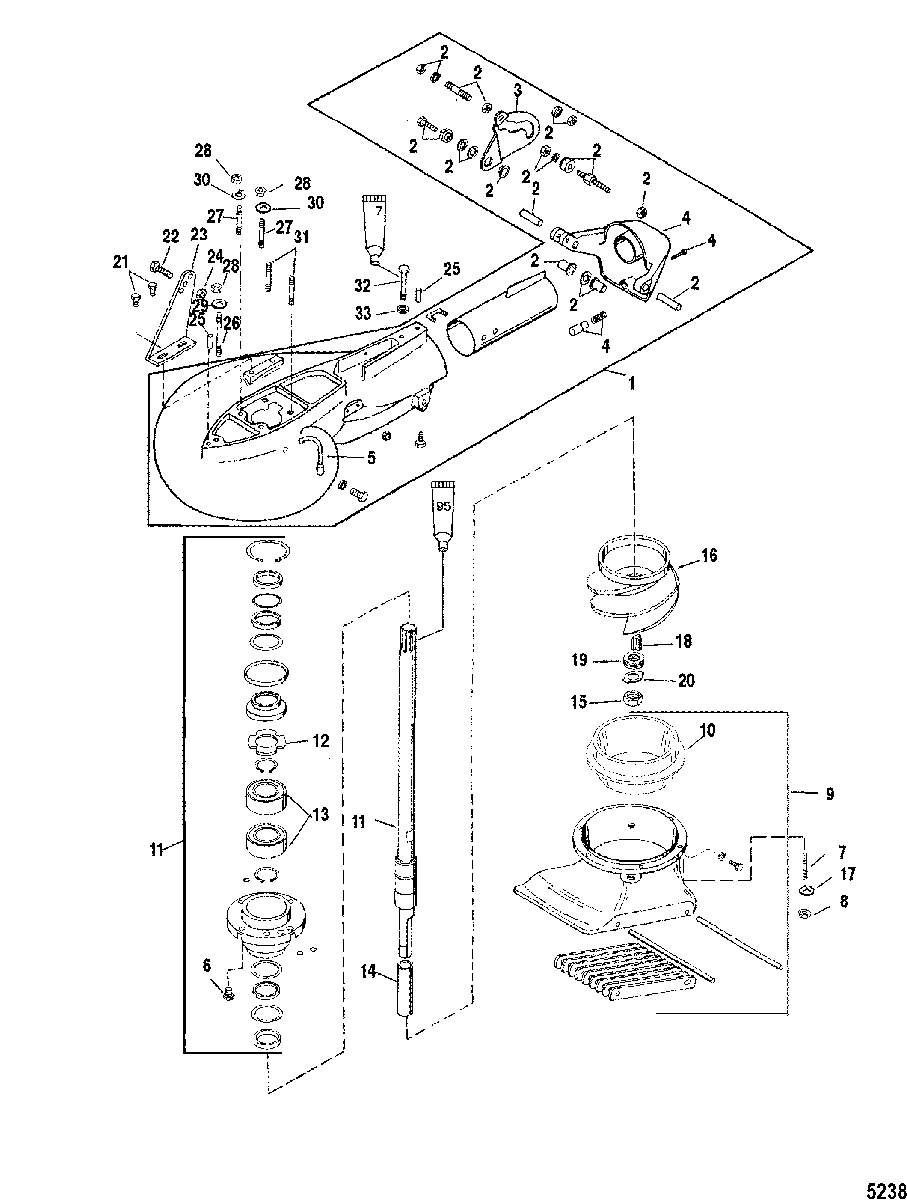

Jet Pump Assembly для Mercury - V-200 0G960500 THRU 1B226999
-
№АртикулНазвание
-
-856143A3 JET PUMP ASSEMBLYJET PUMP ASSEMBLY
-
1803145T HOUSING, PumpHOUSING, Pump
-
2878377 SHIFT LINKAGE KITSHIFT LINKAGE KIT
-
3878382 CAMCAM
-
4878380 GATE, Reverse - With BumperGATE, Reverse - With Bumper
-
532-827490 HOSE, LubeHOSE, Lube
-
610-848497 SCREW, (.312-18 x 1.00)SCREW, (.312-18 x 1.00)
-
716-855840 STUD, (.312-18 x 1.81)STUD, (.312-18 x 1.81)
-
811-82670910 NUT, (.312-18) Stainless SteelNUT, (.312-18) Stainless Steel
-
985576890 HOUSING, IntakeHOUSING, Intake
-
10855771 LINERLINER
-
1145-8M0084524 SHAFT, DriveSHAFT, Drive
-
1212-8796522 THRUST WASHERTHRUST WASHER
-
1330-8796531 BEARING, BallBEARING, Ball
-
1423-8271891 SLEEVESLEEVE
-
1511-8271901 NUTNUT
-
1647-803985T IMPELLERIMPELLER
-
1712-36001 WASHERWASHER
-
1828-801405875 KEYKEY
-
1915-801404875 SHIM, ImpellerSHIM, Impeller
-
2014-801403875 TAB WASHERTAB WASHER
-
2110-19923062 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
2210-60411 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
23801410 BRACKET, Cable SupportBRACKET, Cable Support
-
2411-82670910 NUT, (.312-18) Stainless SteelNUT, (.312-18) Stainless Steel
-
2517-801407 PIN, DowelPIN, Dowel
-
2616-786382 STUD, (.437-14/.437-20 x 3.120)STUD, (.437-14/.437-20 x 3.120)
-
2716-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
2811-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
2912-48926 WASHERWASHER
-
3012-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
3116-306671 STUD, (.250-20/.250-28 x 3.125)STUD, (.250-20/.250-28 x 3.125)
-
3210-68299 SCREW, (.375-16 x 3.00) Stainless SteelSCREW, (.375-16 x 3.00) Stainless Steel
-
3312-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
