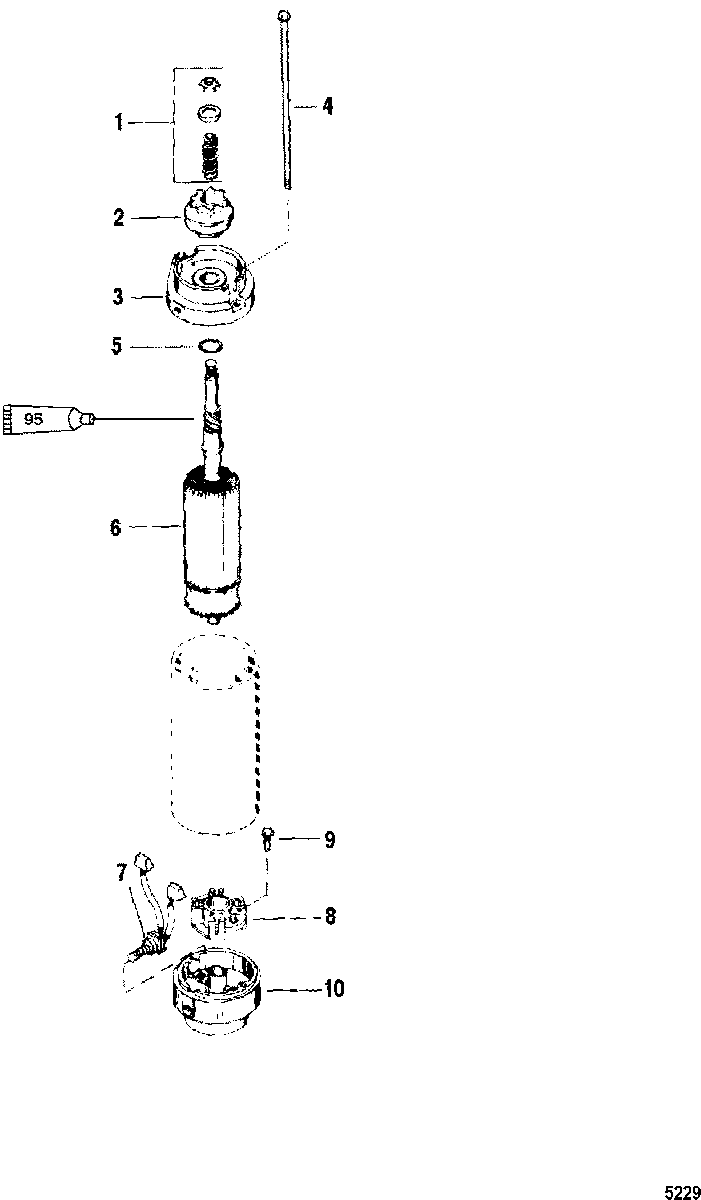

Starter Motor для Mercury - V-200 0G960500 THRU 1B226999
-
№АртикулНазвание
-
-50-893893 STARTER MOTOR ASSEMBLY
SN# 0T469023 & UpSTARTER MOTOR ASSEMBLY
SN# 0T469023 & Up -
-50-893893 STARTER MOTOR ASSEMBLY
SN# 0T409000 THRU 0T469022STARTER MOTOR ASSEMBLY
SN# 0T409000 THRU 0T469022 -
-50-893893 STARTER MOTOR ASSEMBLY
SN# 0T408999 & BelowSTARTER MOTOR ASSEMBLY
SN# 0T408999 & Below -
190645 DRIVE KITDRIVE KIT
-
213310T2 DRIVE
SN# 0T469023 & UpDRIVE
SN# 0T469023 & Up -
213310T1 PINION ASSEMBLY
SN# 0T469022 & BelowPINION ASSEMBLY
SN# 0T469022 & Below -
375660 PLATEPLATE
-
410-749681 THRU BOLTTHRU BOLT
-
5NSS NOT SOLD SEPARATE, Washer (Amercian Bosch #WA3122)NOT SOLD SEPARATE, Washer (Amercian Bosch #WA3122)
-
6792161 ARMATURE
SN# 0T409000 & UpARMATURE
SN# 0T409000 & Up -
679216 ARMATURE
SN# 0T408999 & BelowARMATURE
SN# 0T408999 & Below -
7898265016 BRUSH/SPRING KITBRUSH/SPRING KIT
-
8898265014 HOLDERHOLDER
-
9NSS NOT SOLD SEPARATE, Screw (American Bosch #02441-22-SC-30SM)NOT SOLD SEPARATE, Screw (American Bosch #02441-22-SC-30SM)
-
1015386001 END CAPEND CAP
