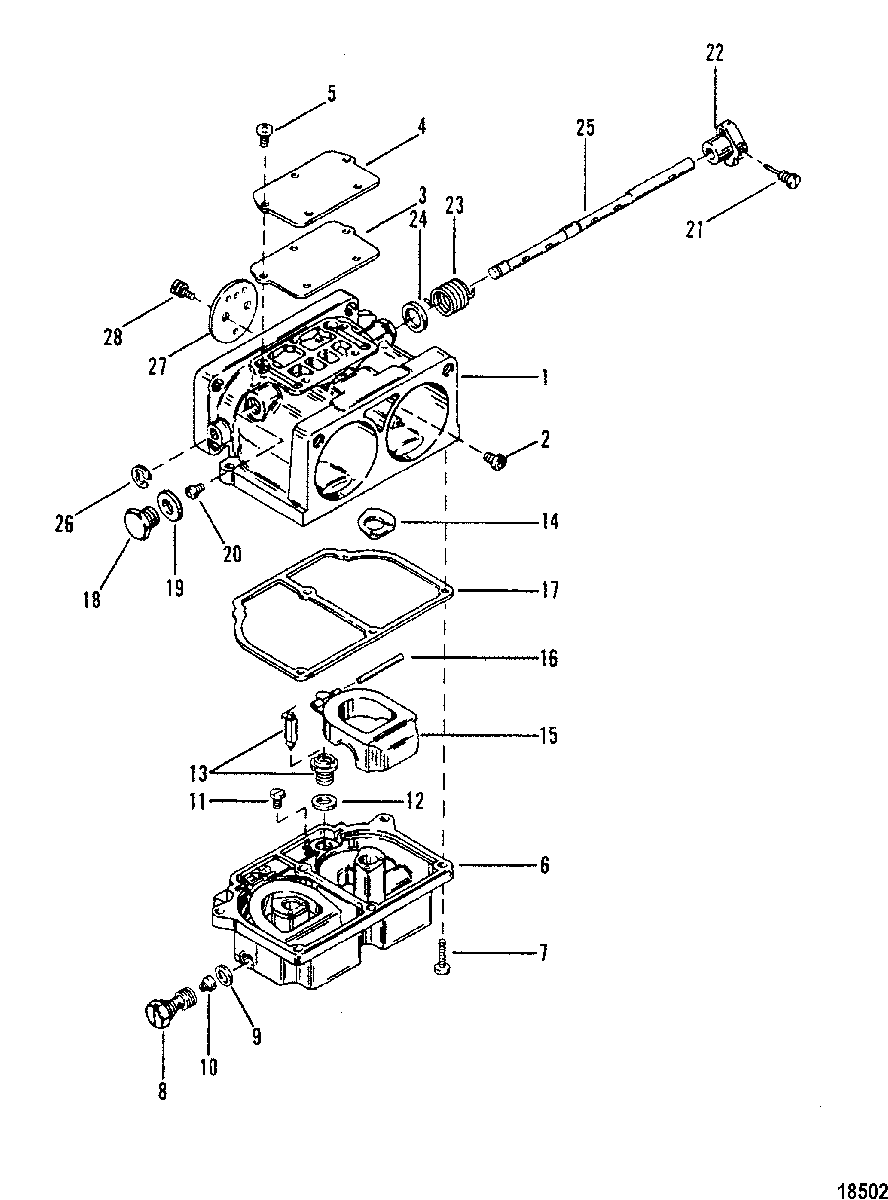

Carburetor для Mercury - V-200 5624878 THRU 0C100860
-
№АртикулНазвание
-
11374-5643A61 CARBURETOR
(WH-14)CARBURETOR
(WH-14) -
11374-5643A68 CARBURETOR
(WH-16)CARBURETOR
(WH-16) -
11374-5643A65 CARBURETOR
(TOP)( WH-18)CARBURETOR
(TOP)( WH-18) -
11374-5643A66 CARBURETOR
(CENTER)( WH-18)CARBURETOR
(CENTER)( WH-18) -
11374-5643A67 CARBURETOR
(BOTTOM)( WH-18)CARBURETOR
(BOTTOM)( WH-18) -
11386-7599A11 CARBURETOR
(TOP)(WH-20)CARBURETOR
(TOP)(WH-20) -
11386-7599A12 CARBURETOR
(CENTER)(WH-20)CARBURETOR
(CENTER)(WH-20) -
11386-7599A13 CARBURETOR
(BOTTOM)(WH-20)CARBURETOR
(BOTTOM)(WH-20) -
11374-5643A94 CARBURETOR
(TOP)(WH-28)CARBURETOR
(TOP)(WH-28) -
11374-5643A95 CARBURETOR
(CENTER)(WH-28)CARBURETOR
(CENTER)(WH-28) -
11374-5643A96 CARBURETOR
(BOTTOM)(WH-28)CARBURETOR
(BOTTOM)(WH-28) -
11374-9242A29 CARBURETOR
(TOP)(WH-39)CARBURETOR
(TOP)(WH-39) -
11374-9242A30 CARBURETOR
(CENTER)(WH-39)CARBURETOR
(CENTER)(WH-39) -
11374-9242A31 CARBURETOR
(BOTTOM)(WH-39)CARBURETOR
(BOTTOM)(WH-39) -
11374-9242T42 CARBURETOR
(TOP)(WH-46)CARBURETOR
(TOP)(WH-46) -
11374-9242T43 CARBURETOR
(CENTER) WH-46)CARBURETOR
(CENTER) WH-46) -
11374-9242T44 CARBURETOR
(BOTTOM)(WH-46)CARBURETOR
(BOTTOM)(WH-46) -
21399-6249 JET, (.096), VENT BOWLJET, (.096), VENT BOWL
-
21399-3517 JET, (.084), VENT BOWLJET, (.084), VENT BOWL
-
3NSS NOT SOLD SEPARATE, Gasket-Cover PlateNOT SOLD SEPARATE, Gasket-Cover Plate
-
41395-6032 PLATEPLATE
-
51395-9597 SCREW, COVER PLATESCREW, COVER PLATE
-
6NLA No Longer Available, Fuel Bowl
(WH/3A/11)No Longer Available, Fuel Bowl
(WH/3A/11) -
61395-7822 FUEL BOWL
(WH-14/16)FUEL BOWL
(WH-14/16) -
61395-7823 FUEL BOWL
(TOP)FUEL BOWL
(TOP) -
61395-7822 FUEL BOWL
(CENTER/BOTTOM)FUEL BOWL
(CENTER/BOTTOM) -
7NSS NOT SOLD SEPARATE, Screw-Fuel BowlNOT SOLD SEPARATE, Screw-Fuel Bowl
-
81395-6025 PLUG, MAIN JETPLUG, MAIN JET
-
9NSS NOT SOLD SEPARATE, Gasket-Main JetNOT SOLD SEPARATE, Gasket-Main Jet
-
101399-4217 MAIN JET, (.062), MAIN FUELMAIN JET, (.062), MAIN FUEL
-
101395-6029 JET, (.068), MAIN FUEL
(5 CYL.ONLY)JET, (.068), MAIN FUEL
(5 CYL.ONLY) -
101395-6207 JET, (.072), MAIN FUELJET, (.072), MAIN FUEL
-
101399-3794 JET, (.074), MAIN FUELJET, (.074), MAIN FUEL
-
101399-3796 JET, (.076), MAIN FUELJET, (.076), MAIN FUEL
-
101395-6680 JET, (.078), MAIN FUELJET, (.078), MAIN FUEL
-
101395-6201 JET, (.080), MAIN FUELJET, (.080), MAIN FUEL
-
101399-3518 JET, (.082), MAIN FUELJET, (.082), MAIN FUEL
-
11NSS NOT SOLD SEPARATE, Screw-Float PinNOT SOLD SEPARATE, Screw-Float Pin
-
12NSS NOT SOLD SEPARATE, Gasket-Inlet Needle and SeatNOT SOLD SEPARATE, Gasket-Inlet Needle and Seat
-
131395-7624 INLET NEEDLE AND SEAT
(WH-3A/11)INLET NEEDLE AND SEAT
(WH-3A/11) -
131395-7824 INLET NEEDLE AND SEAT ASSEMBLYINLET NEEDLE AND SEAT ASSEMBLY
-
14NSS NOT SOLD SEPARATE, Gasket-Nozzle BossNOT SOLD SEPARATE, Gasket-Nozzle Boss
-
151395-9267 FLOAT
(WH-3/3A/11)FLOAT
(WH-3/3A/11) -
151395-9267 FLOATFLOAT
-
16NSS NOT SOLD SEPARATE, Pin-Float LeverNOT SOLD SEPARATE, Pin-Float Lever
-
17NSS NOT SOLD SEPARATE, Gasket-Fuel BowlNOT SOLD SEPARATE, Gasket-Fuel Bowl
-
181395-4541 SCREW, IDLE AIR BLEED JETSCREW, IDLE AIR BLEED JET
-
19NSS NOT SOLD SEPARATE, Gasket-Bleed Jet PlugNOT SOLD SEPARATE, Gasket-Bleed Jet Plug
-
201395-7394 JET, (.044), IDLE AIR BLEEDJET, (.044), IDLE AIR BLEED
-
201399-5317 JET, (.046), IDLE AIR BLEEDJET, (.046), IDLE AIR BLEED
-
201395-6359 JET, (.052), IDLE AIR BLEEDJET, (.052), IDLE AIR BLEED
-
201399-5213 JET, (.056), IDLE AIRJET, (.056), IDLE AIR
-
211395-6027 SCREW, THROTTLE LEVERSCREW, THROTTLE LEVER
-
2267752 LEVER
(WH-3/3A/11/14/16)LEVER
(WH-3/3A/11/14/16) -
2287607 THROTTLE LEVERTHROTTLE LEVER
-
23NSS NOT SOLD SEPARATE, Spring-Throttle ReturnNOT SOLD SEPARATE, Spring-Throttle Return
-
241395-6031 SPACER, THROTTLE LEVERSPACER, THROTTLE LEVER
-
251395-6022 SHAFTSHAFT
-
26NSS NOT SOLD SEPARATE, Ring-Retainer-Throttle ShaftNOT SOLD SEPARATE, Ring-Retainer-Throttle Shaft
-
271395-6023 THROTTLE VALVE
(WH-3/3A/11/14/16/18/20/22)THROTTLE VALVE
(WH-3/3A/11/14/16/18/20/22) -
271395-9416 THROTTLE VALVETHROTTLE VALVE
-
28NSS NOT SOLD SEPARATE, Screw-Throttle ValveNOT SOLD SEPARATE, Screw-Throttle Valve
-
-1395-6452 GASKET AND PACKING SETGASKET AND PACKING SET
-
-1395-7826 REPAIR PARTS KITREPAIR PARTS KIT
