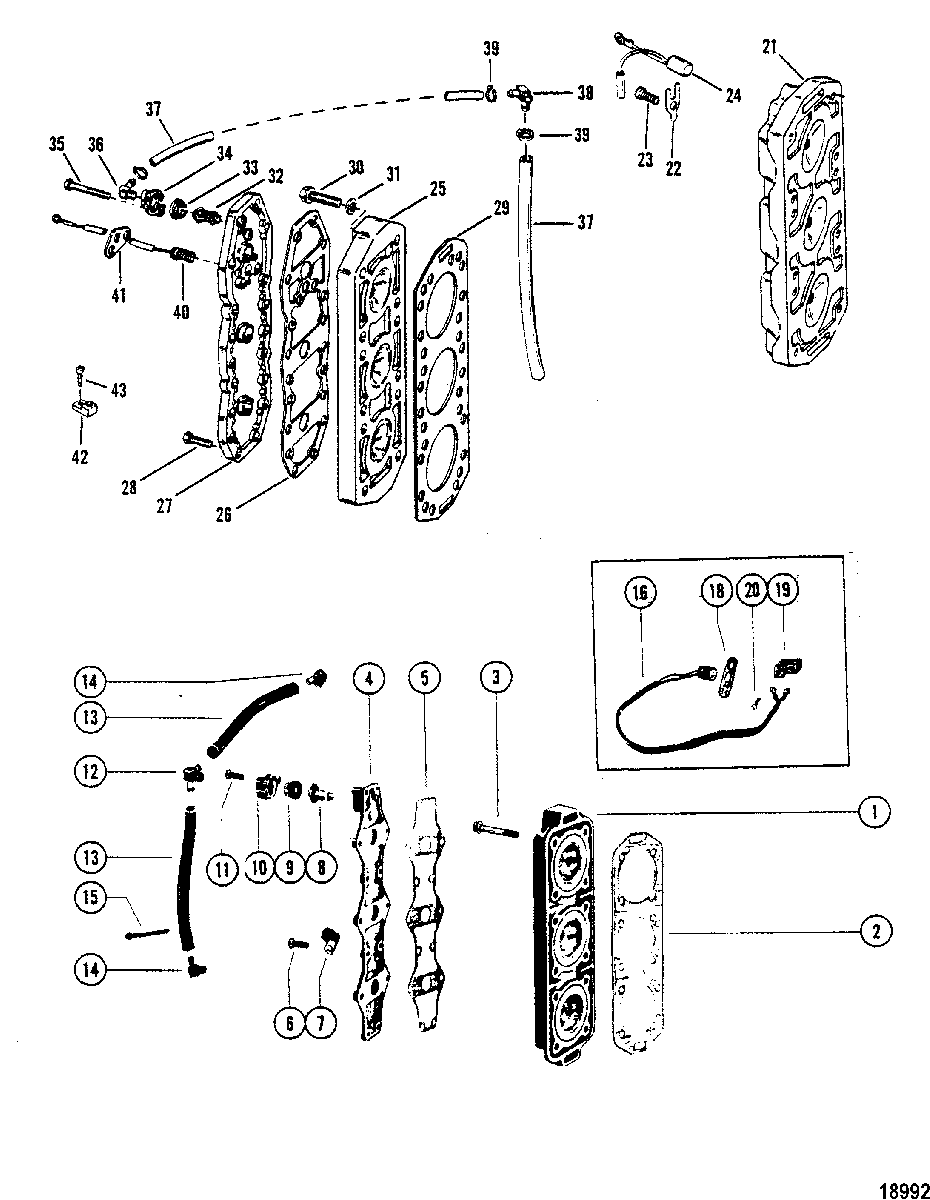

Cylinder Head для Mercury - V-200 5624878 THRU 0C100860
-
№АртикулНазвание
-
1NLA No Longer Available, Cylinder Head
(DESIGN I)No Longer Available, Cylinder Head
(DESIGN I) -
227-41244T02 GASKET
(DESIGN I)GASKET
(DESIGN I) -
310-668631 SCREW, (.375-16 X 2.5)
(DESIGN I)SCREW, (.375-16 X 2.5)
(DESIGN I) -
4NLA No Longer Available, Cover-Cylinder
(DESIGN I)No Longer Available, Cover-Cylinder
(DESIGN I) -
527-65788 GASKET
(DESIGN I)GASKET
(DESIGN I) -
610-35386 SCREW, (.312-18 x 1.00)
(DESIGN I)SCREW, (.312-18 x 1.00)
(DESIGN I) -
610-74824 SCREW, (.312-18 x 1.250)
(DESIGN I)SCREW, (.312-18 x 1.250)
(DESIGN I) -
754-47483 J CLIP
(DESIGN I)J CLIP
(DESIGN I) -
875692 THERMOSTAT
(DESIGN I)THERMOSTAT
(DESIGN I) -
927-62386001 GASKET
(DESIGN I)GASKET
(DESIGN I) -
1090390A1 COVER KIT
(DESIGN I)COVER KIT
(DESIGN I) -
11NLA No Longer Available, Screw
(2"- FLANGED HEAD)(DESIGN I)No Longer Available, Screw
(2"- FLANGED HEAD)(DESIGN I) -
1110-815549 SCREW, .312-18 x 2.00
(2")(DESIGN I)SCREW, .312-18 x 2.00
(2")(DESIGN I) -
1110-35386 SCREW, (.312-18 x 1.00)
(1")(DESIGN I)SCREW, (.312-18 x 1.00)
(1")(DESIGN I) -
1222-68728 FITTING
(DESIGN I)FITTING
(DESIGN I) -
1332-77653101 HOSE, (48.00 Inches Bulk)
(DESIGN I)HOSE, (48.00 Inches Bulk)
(DESIGN I) -
1422-687271 FITTING, (90 Degree)
(DESIGN I)FITTING, (90 Degree)
(DESIGN I) -
1561990 CABLE TIE, (14.00 Inches)
(DESIGN I)CABLE TIE, (14.00 Inches)
(DESIGN I) -
1678799 TEMPERATURE SENDER, (19.50 Inch)
(DESIGN I)TEMPERATURE SENDER, (19.50 Inch)
(DESIGN I) -
18NLA No Longer Available, Cover
(DESIGN I)No Longer Available, Cover
(DESIGN I) -
1986-45915 TERMINAL BLOCK
(DESIGN I)TERMINAL BLOCK
(DESIGN I) -
2010-69079 SCREW, (#10-16 x .440)
(DESIGN I)SCREW, (#10-16 x .440)
(DESIGN I) -
2115221A5 CYLINDER HEAD
(1 PIECE DESIGN) (DESIGN II)CYLINDER HEAD
(1 PIECE DESIGN) (DESIGN II) -
22137151 RETAINER
(USE WITH REF.#21) (DESIGN II)RETAINER
(USE WITH REF.#21) (DESIGN II) -
2310-98257 SCREW, (.312-18 x .500)
(USE WITH REF.#21) (DESIGN II)SCREW, (.312-18 x .500)
(USE WITH REF.#21) (DESIGN II) -
2413536A7 TEMPERATURE SENSOR
(USE WITH REF.#21) (DESIGN II)TEMPERATURE SENSOR
(USE WITH REF.#21) (DESIGN II) -
25NLA No Longer Available, Cylinder Head
(2 PIECE DESIGN) (DESIGN II)No Longer Available, Cylinder Head
(2 PIECE DESIGN) (DESIGN II) -
2627-96278 GASKET
(2 PIECE DESIGN)(DESIGN II)GASKET
(2 PIECE DESIGN)(DESIGN II) -
27NLA No Longer Available, Cover-Cylinder
(2 PIECE DESIGN)(DESIGN II)No Longer Available, Cover-Cylinder
(2 PIECE DESIGN)(DESIGN II) -
2810-74824 SCREW, (.312-18 x 1.250)
(2 PIECE DESIGN)(DESIGN II)SCREW, (.312-18 x 1.250)
(2 PIECE DESIGN)(DESIGN II) -
2927-41247T01 GASKET
(DESIGN II)GASKET
(DESIGN II) -
3010-98534 SCREW, (.375-16 X 2.30)
(DESIGN II)SCREW, (.375-16 X 2.30)
(DESIGN II) -
3112-25909 WASHER, (.406 x .812 x .065)
(DESIGN II)WASHER, (.406 x .812 x .065)
(DESIGN II) -
3275692 THERMOSTAT
(DESIGN II)THERMOSTAT
(DESIGN II) -
3327-62386001 GASKET
(DESIGN II)GASKET
(DESIGN II) -
3490390A1 COVER KIT
(DESIGN II)COVER KIT
(DESIGN II) -
3510-815549 SCREW, .312-18 x 2.00
(2" - NOT USED WITH REF.#21)(DESIGN II)SCREW, .312-18 x 2.00
(2" - NOT USED WITH REF.#21)(DESIGN II) -
3510-35386 SCREW, (.312-18 x 1.00)
(1" - QTY. OF 4 USED WITH REF. #21)(DESIGN II)SCREW, (.312-18 x 1.00)
(1" - QTY. OF 4 USED WITH REF. #21)(DESIGN II) -
3622-687271 FITTING, (90 Degree)
(DESIGN II)FITTING, (90 Degree)
(DESIGN II) -
3732-77653101 HOSE, (48.00 Inches Bulk)
(DESIGN II)HOSE, (48.00 Inches Bulk)
(DESIGN II) -
3822-68728 FITTING
(DESIGN II)FITTING
(DESIGN II) -
3954-816311T CABLE TIE, (8.00 Inches)
(DESIGN II)CABLE TIE, (8.00 Inches)
(DESIGN II) -
4097465 TEMPERATURE SENDER
(DESIGN II)TEMPERATURE SENDER
(DESIGN II) -
4196282 COVER
( NOT USED WITH REF.#21)(DESIGN II)COVER
( NOT USED WITH REF.#21)(DESIGN II) -
4286-45915 TERMINAL BLOCK
( NOT USED WITH REF.#21) (DESIGN II)TERMINAL BLOCK
( NOT USED WITH REF.#21) (DESIGN II) -
4310-69079 SCREW, (#10-16 x .440)
( NOT USED WITH REF.#21) (DESIGN II)SCREW, (#10-16 x .440)
( NOT USED WITH REF.#21) (DESIGN II) -
-27-89221A88 GASKET SET
SN# Merc-6203991/Mariner-6201970 & UpGASKET SET
SN# Merc-6203991/Mariner-6201970 & Up -
-27-89221A80 GASKET SET
SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969GASKET SET
SN# Merc-6073192/Mariner-6055033 THRU Merc-6203990/Mariner-6201969
