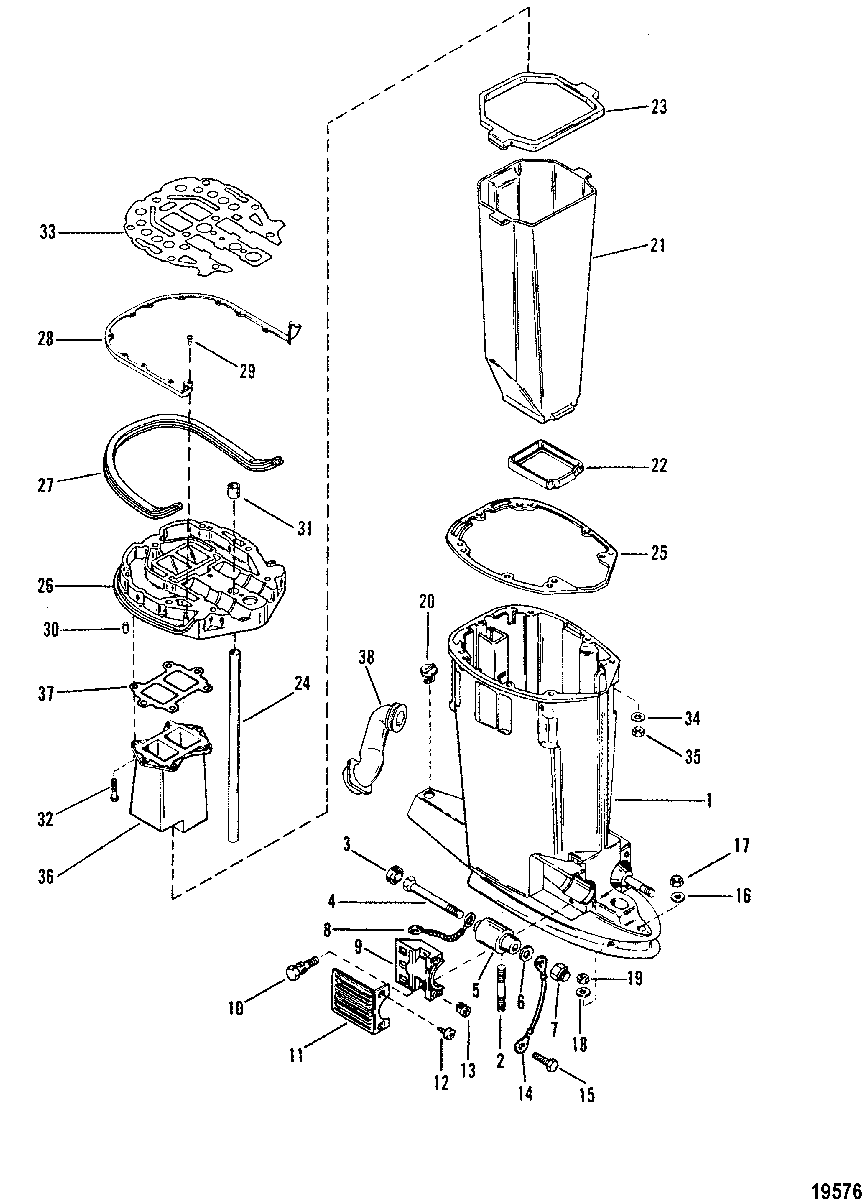

DRIVESHAFT HOUSING AND EXHAUST TUBE для Mercury - V-200XRI (EFI) 0C291520 THRU 0D081999
-
№АртикулНазвание
-
11590-8343T10 DRIVESHAFT HOUSING (BLACK)DRIVESHAFT HOUSING (BLACK)
-
11590-8343T10 DRIVESHAFT HOUSING (GRAY)DRIVESHAFT HOUSING (GRAY)
-
216-56295 STUD, (.437 x 2.69), DRIVE SHAFT HSG./GEAR HSG.STUD, (.437 x 2.69), DRIVE SHAFT HSG./GEAR HSG.
-
325067 BUMPER, LOWER MOUNT SCREWBUMPER, LOWER MOUNT SCREW
-
410-898831 SCREW, (.500-20 x 6.00), LOWER MOUNTSCREW, (.500-20 x 6.00), LOWER MOUNT
-
577327 MOUNT, LOWERMOUNT, LOWER
-
612-49339 WASHER, (.8125), LOWER MOUNT SCREWWASHER, (.8125), LOWER MOUNT SCREW
-
711-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
888238A10 WIRE ASSEMBLY, GroundWIRE ASSEMBLY, Ground
-
954-8M0036782 CLAMP, LOWER MOUNTCLAMP, LOWER MOUNT
-
1010-66727 SCREW, (.312-18 x 1.250), LOWER MOUNT CLAMP ATTACHINGSCREW, (.312-18 x 1.250), LOWER MOUNT CLAMP ATTACHING
-
11100-8M4500752 COVER, LOWER MOUNT CLAMP (BLACK)COVER, LOWER MOUNT CLAMP (BLACK)
-
11100-8M4500752 COVER, LOWER MOUNT CLAMP (GRAY)COVER, LOWER MOUNT CLAMP (GRAY)
-
1210-88417 SCREW, (#12-24 x .620), COVER ATTACHINGSCREW, (#12-24 x .620), COVER ATTACHING
-
1311-35521 NUT, NYLON - COVER TO CLAMP SCREWNUT, NYLON - COVER TO CLAMP SCREW
-
1488238A10 WIRE ASSEMBLY, GroundWIRE ASSEMBLY, Ground
-
1510-41508 SCREW, (.250-20 x .500), GROUND WIRESCREW, (.250-20 x .500), GROUND WIRE
-
1612-48926 WASHER, GEAR HOUSING STUDWASHER, GEAR HOUSING STUD
-
1711-29489 NUT, GEAR HOUSING STUD (CAP)NUT, GEAR HOUSING STUD (CAP)
-
1812-45176 WASHER, (.453 x .812 x .105), GEAR HOUSING STUDWASHER, (.453 x .812 x .105), GEAR HOUSING STUD
-
1911-34933 NUT, (.437-20), GEAR HOUSING STUDNUT, (.437-20), GEAR HOUSING STUD
-
2019-64649 PLUG, DRIVE SHAFT HOUSINGPLUG, DRIVE SHAFT HOUSING
-
2118276T EXHAUST TUBEEXHAUST TUBE
-
2266350001 SEAL, EXHAUST TUBE (LOWER)SEAL, EXHAUST TUBE (LOWER)
-
238M0039076 SEAL, EXHAUST TUBE (UPPER)SEAL, EXHAUST TUBE (UPPER)
-
2432-8M0042788 TUBE, WATERTUBE, WATER
-
2527-991734 GASKET, DRIVE SHAFT HOUSING TO PLATEGASKET, DRIVE SHAFT HOUSING TO PLATE
-
2618233A20 PLATE ASSEMBLY, DRIVE SHAFT HOUSINGPLATE ASSEMBLY, DRIVE SHAFT HOUSING
-
278M0043165 SEAL, BRACKETSEAL, BRACKET
-
2868011 BRACKET, SEAL RETAININGBRACKET, SEAL RETAINING
-
2910-878608 SCREW, (#10-16 x .500), BRACKET TO PLATESCREW, (#10-16 x .500), BRACKET TO PLATE
-
3017-43044 PIN, Dowel, LOCATINGPIN, Dowel, LOCATING
-
3126-38970 SEAL, WATER TUBESEAL, WATER TUBE
-
3210-90192 SCREW, (.250-20 x .750), EXTENSION TO PLATESCREW, (.250-20 x .750), EXTENSION TO PLATE
-
3327-183076 GASKET, DRIVE SHAFT HOUSING PLATEGASKET, DRIVE SHAFT HOUSING PLATE
-
3412-20553 WASHER, POWER HEAD STUDWASHER, POWER HEAD STUD
-
3511-69254 NUT, POWER HEAD STUDNUT, POWER HEAD STUD
-
3617303T1 DIFFUSER (175)DIFFUSER (175)
-
36879288T71 EXH. EXTENSION (200)EXH. EXTENSION (200)
-
3727-782461 GASKET, EXHAUST EXTENSIONGASKET, EXHAUST EXTENSION
-
38814618 BOOT, IDLE EXHAUSTBOOT, IDLE EXHAUST
-
-27-815791A92 GASKET SET
(200)GASKET SET
(200) -
-27-815791A92 GASKET SET
(175)GASKET SET
(175)
