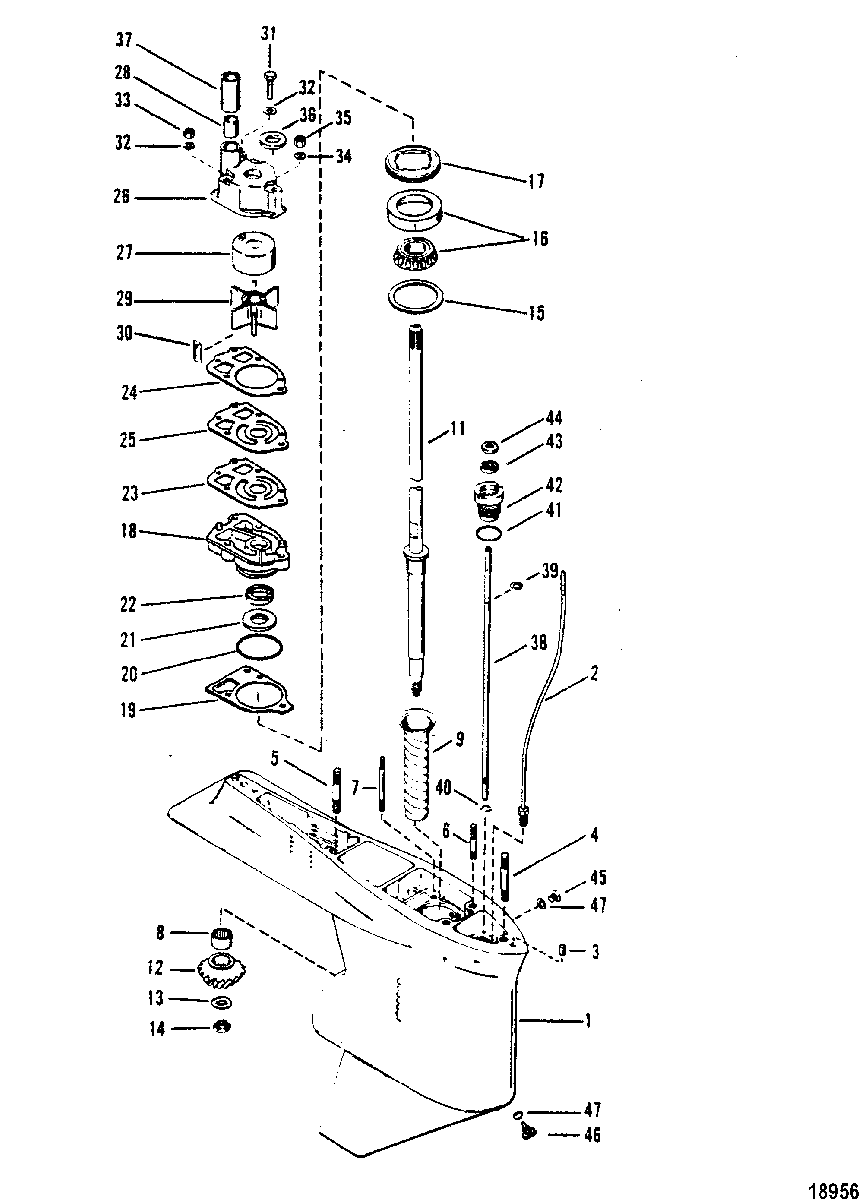

GEAR HOUSING(DRIVESHAFT)(1.87:1) для Mercury - V-200XRI (EFI) 0C291520 THRU 0D081999
-
№АртикулНазвание
-
-1647-9148T84 GEAR HOUSING, STANDARD ROTATION 1.87:1 GEAR RATIO (BLACK)GEAR HOUSING, STANDARD ROTATION 1.87:1 GEAR RATIO (BLACK)
-
-1647-9148T84 GEAR HOUSING, STANDARD ROTATION 1.87:1 GEAR RATIO (GRAY)GEAR HOUSING, STANDARD ROTATION 1.87:1 GEAR RATIO (GRAY)
-
11647-9148T47 GEAR HOUSING ASSEMBLY (BASIC - BLACK)GEAR HOUSING ASSEMBLY (BASIC - BLACK)
-
11647-9148T47 GEAR HOUSING ASSEMBLY (BASIC - GRAY)GEAR HOUSING ASSEMBLY (BASIC - GRAY)
-
222-85822A10 CONNECTOR ASSEMLBYCONNECTOR ASSEMLBY
-
317-43044 PIN, DowelPIN, Dowel
-
416-786382 STUD, (.438 x 3.12)STUD, (.438 x 3.12)
-
516-8M0133358 STUD, (.44 x 2.06)STUD, (.44 x 2.06)
-
616-8M0034463 STUD, (.312 x 3.38)STUD, (.312 x 3.38)
-
716-306671 STUD, (.250-20/.250-28 x 3.125)STUD, (.250-20/.250-28 x 3.125)
-
831-42647A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
923-43998 SLEEVE, LUBRICATIONSLEEVE, LUBRICATION
-
1145-897624T DRIVESHAFTDRIVESHAFT
-
12N.S.S. Not Sold Seperate, Pinion Gear (PART OF 43-44104A2)Not Sold Seperate, Pinion Gear (PART OF 43-44104A2)
-
1312-92721 WASHERWASHER
-
1411-35921 NUT, (.625-18)NUT, (.625-18)
-
1515-8M0063267 SHIM SETSHIM SET
-
1631-36387A1 BEARING, RollerBEARING, Roller
-
178245191 NUTNUT
-
1846-8M0077147 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
1927-426311 GASKETGASKET
-
2025-896523 O-RING, (2.175 x .175)O-RING, (2.175 x .175)
-
2126-89238 OIL SEALOIL SEAL
-
2226-16977 OIL SEALOIL SEAL
-
2327-8M0090319 GASKET (LOWER)GASKET (LOWER)
-
2427-858524 GASKET (UPPER)GASKET (UPPER)
-
25324351 FACE PLATEFACE PLATE
-
2646-96148T1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
2748752T INSERTINSERT
-
2826-38970 SEALSEAL
-
2947-89984T4 IMPELLERIMPELLER
-
3028-8M0032834 KEYKEY
-
3110-96411 SCREW, (#14-8 x 2.25)SCREW, (#14-8 x 2.25)
-
3212-29245 WASHER, (.281 x .500 x .060)WASHER, (.281 x .500 x .060)
-
3311-8267119 NUT, (.250-28)NUT, (.250-28)
-
3412-36001 WASHERWASHER
-
3511-13436 NUTNUT
-
3625-30271 RING, RUBBER (DRIVE SHAFT) (OLD DESIGN)RING, RUBBER (DRIVE SHAFT) (OLD DESIGN)
-
3723-29804T SLEEVESLEEVE
-
38789022 SHAFT, SHIFT LOWERSHAFT, SHIFT LOWER
-
3953-29641 E RINGE RING
-
4053-78907 RETAINING RING (OLD DESIGN)RETAINING RING (OLD DESIGN)
-
4125-25439 O-RING, (.862 x .103)O-RING, (.862 x .103)
-
4223-77631A2 BUSHING ASSEMBLYBUSHING ASSEMBLY
-
4326-8164641 OIL SEALOIL SEAL
-
4412-77674 WASHER, RUBBERWASHER, RUBBER
-
4510-79953Q04 SCREW, (.375-16 x .250), GREASE FILLERSCREW, (.375-16 x .250), GREASE FILLER
-
4622-8M0058389 SCREW, Magnetic, DRAINSCREW, Magnetic, DRAIN
-
4712-191833 WASHER, FiberWASHER, Fiber
-
-46-96148A8 WATER PUMP REBUILD KITWATER PUMP REBUILD KIT
-
-26-89238A2 SEAL KITSEAL KIT
-
-27-815791A92 GASKET SET
(200)GASKET SET
(200) -
-27-815791A92 GASKET SET
(175)GASKET SET
(175)
