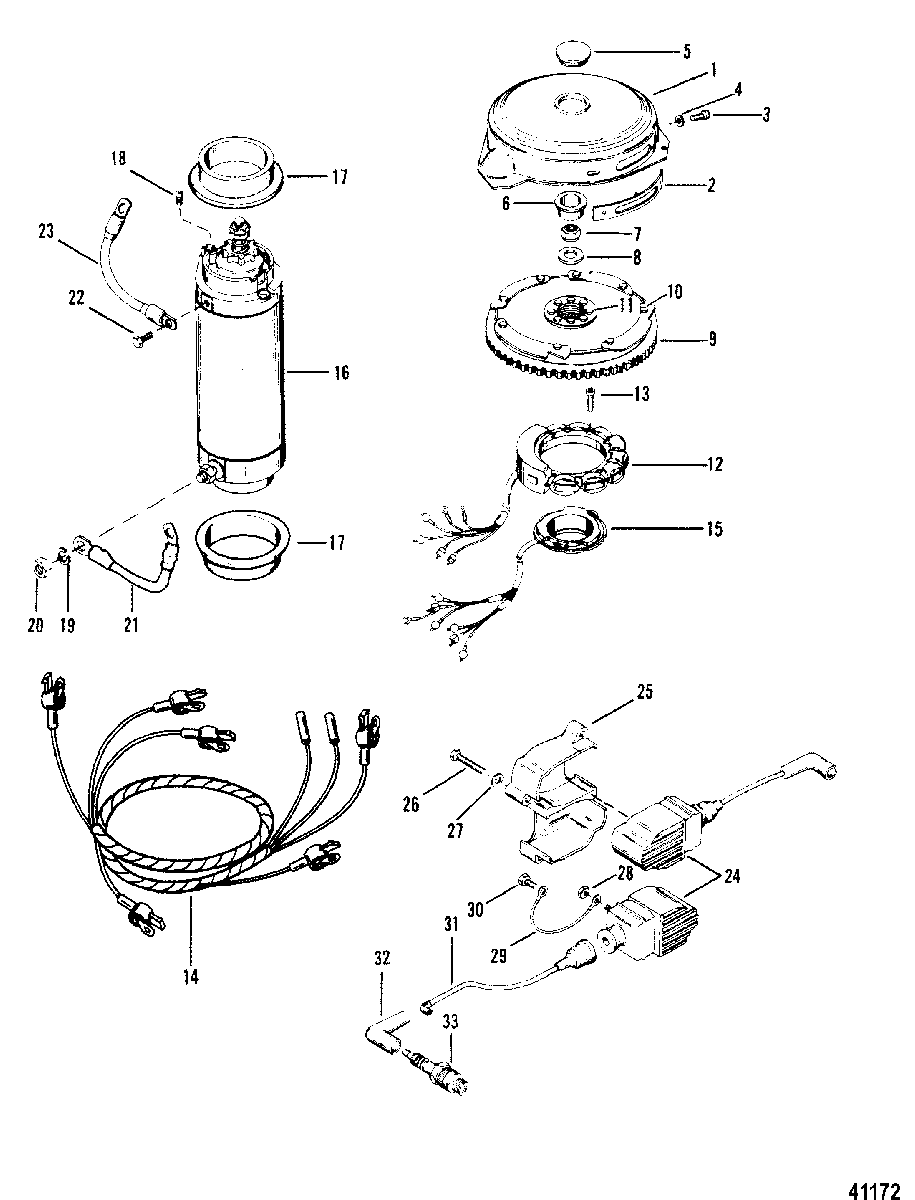

FLYWHEEL, STARTER MOTOR AND IGNITION COILS для Mercury - V-220 0B117316 & Up
-
№АртикулНазвание
-
179918A1 COVER KIT, FLYWHEELCOVER KIT, FLYWHEEL
-
279022 MARKER, TIMINGMARKER, TIMING
-
310-37572 SCREW, (.190-32 x .380)SCREW, (.190-32 x .380)
-
412-72761 WASHER, (.203 x .562 x .060) Stainless Steel, TIMING MARKER SCREWWASHER, (.203 x .562 x .060) Stainless Steel, TIMING MARKER SCREW
-
519-89219001 PLUG, FLYWHEEL COVERPLUG, FLYWHEEL COVER
-
619-45907 PLUG, Yellow, FLYWHEELPLUG, Yellow, FLYWHEEL
-
711-52901 NUT, (.625-18), FLYWHEELNUT, (.625-18), FLYWHEEL
-
812-33001 WASHER, (.641 x 1.250 x .190), FLYWHEELWASHER, (.641 x 1.250 x .190), FLYWHEEL
-
9271-859238A9 FLYWHEELFLYWHEEL
-
1010-32417 SCREW, (.250-28 x .625), FLYWHEEL PLATESCREW, (.250-28 x .625), FLYWHEEL PLATE
-
1110-68997 SCREW, (.312-24 x .750), FLYWHEEL HUBSCREW, (.312-24 x .750), FLYWHEEL HUB
-
12398-5454A35 STATORSTATOR
-
1310-19926100 SCREW, (#10-24 x 1.00), STATORSCREW, (#10-24 x 1.00), STATOR
-
1484-69739A3 HARNESS ASSEMBLY, COIL TO SWITCH BOX
(#2, 4 AND 6)HARNESS ASSEMBLY, COIL TO SWITCH BOX
(#2, 4 AND 6) -
1596455A11 TRIGGER PLATE ASSEMBLYTRIGGER PLATE ASSEMBLY
-
1650-893893 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
1723-8M0034918 COLLAR, STARTER MOTORCOLLAR, STARTER MOTOR
-
188M0043376 STOP, RubberSTOP, Rubber
-
1913-26992 LOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINALLOCKWASHER, (.250) Stainless Steel, STARTER MOTOR TERMINAL
-
2011-20890 NUT, (.250-20), STARTER MOTOR TERMINALNUT, (.250-20), STARTER MOTOR TERMINAL
-
2184-93388A14 CABLE ASSEMBLY, Black, SOLENOID TO STARTER MOTORCABLE ASSEMBLY, Black, SOLENOID TO STARTER MOTOR
-
2210-69035 SCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTORSCREW AND LOCKWASHER, (.250-20 x .625) Stainless Steel, CABLE TO STARTER MOTOR
-
2384-93388A1 CABLE ASSEMBLY, (6.00 Inches) Black, PLATE TO STARTER MOTORCABLE ASSEMBLY, (6.00 Inches) Black, PLATE TO STARTER MOTOR
-
24339-832757A4 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
2567614 COVER, IGNITION COILCOVER, IGNITION COIL
-
2610-88447 SCREW, (.190-32 x 1.62), IGNITION COIL COVERSCREW, (.190-32 x 1.62), IGNITION COIL COVER
-
2712-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, COIL COVER SCREWWASHER, (.192 x .375 x .0312) Stainless Steel, COIL COVER SCREW
-
2811-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINALNUT, (#10-32) Brass, IGNITION COIL TERMINAL
-
2984-88807A6 CABLE ASSEMBLY, (3.50 Inches) Black, IGNITION COILCABLE ASSEMBLY, (3.50 Inches) Black, IGNITION COIL
-
3010-68513 SCREW, (#10-32 x .375) Stainless Steel, GROUND STRAPSCREW, (#10-32 x .375) Stainless Steel, GROUND STRAP
-
3184-813715A1 LEAD ASSEMBLY, HIGH TENSIONLEAD ASSEMBLY, HIGH TENSION
-
3285-63709A1 BOOT/TERMINAL KIT, HIGH TENSION CABLEBOOT/TERMINAL KIT, HIGH TENSION CABLE
-
3333-13686Q SPARK PLUGSPARK PLUG
-
3333-14103568 SPARK PLUG
(CANADA/BELGIUM)SPARK PLUG
(CANADA/BELGIUM)
