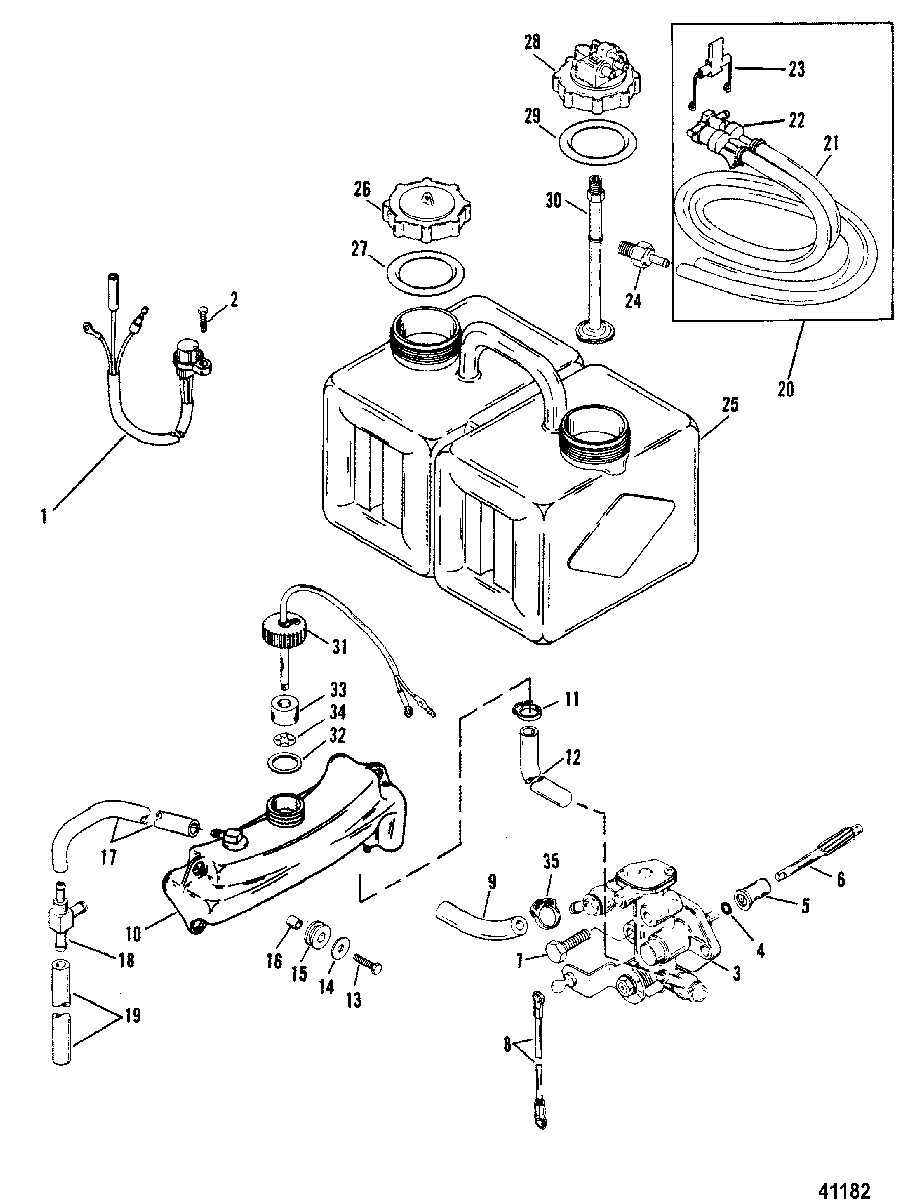

OIL INJECTION COMPONENTS для Mercury - V-220 0B117316 & Up
-
№АртикулНазвание
-
112430A4 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
210-48409 SCREW, (#10-16 x .625) Stainless Steel, SENSOR ATTACHINGSCREW, (#10-16 x .625) Stainless Steel, SENSOR ATTACHING
-
3815699T PUMP, OilPUMP, Oil
-
425-11379 O-RING, OIL PUMPO-RING, OIL PUMP
-
523-41429A2 BEARING ASSEMBLY, DRIVE GEARBEARING ASSEMBLY, DRIVE GEAR
-
643-14563 GEAR, DrivenGEAR, Driven
-
710-32228 SCREW, (#10-32 x .625), OIL PUMP TO CRANKCASESCREW, (#10-32 x .625), OIL PUMP TO CRANKCASE
-
710-41507 SCREW, (#10-32 x 1.120), OIL PUMP TO CRANKCASESCREW, (#10-32 x 1.120), OIL PUMP TO CRANKCASE
-
81938512 LINK, THROTTLE LEVER TO OIL PUMPLINK, THROTTLE LEVER TO OIL PUMP
-
932-82381335 TUBING, OIL PUMPTUBING, OIL PUMP
-
10994436 RESERVOIR, OilRESERVOIR, Oil
-
1154-415823 CLAMP, OIL HOSE (LARGE)CLAMP, OIL HOSE (LARGE)
-
1232-82381455 TUBING, OIL RESERVOIR TO OIL PUMP (5-1/4")TUBING, OIL RESERVOIR TO OIL PUMP (5-1/4")
-
1310-690201 SCREW, (#10-32 x .875), OIL RESERVOIR ATTACHINGSCREW, (#10-32 x .875), OIL RESERVOIR ATTACHING
-
1412-42118 WASHER, OIL RESERVOIR SCREWWASHER, OIL RESERVOIR SCREW
-
1525-42117 GROMMET, OIL RESERVOIR SCREWGROMMET, OIL RESERVOIR SCREW
-
1623-42116 BUSHING, OIL RESERVOIR SCREWBUSHING, OIL RESERVOIR SCREW
-
1732-8M0108355 LINE, (57.00 Inches Bulk), OILLINE, (57.00 Inches Bulk), OIL
-
1822-42425 TEE, OIL TUBINGTEE, OIL TUBING
-
1932-9072925 HOSE, OIL (6-3/4")HOSE, OIL (6-3/4")
-
20NSS NOT SOLD SEPARATE, HOUSING ASSEMBLY
(Kit - NLA)(Order parts separately)NOT SOLD SEPARATE, HOUSING ASSEMBLY
(Kit - NLA)(Order parts separately) -
2132-99439 HOSE, (114.00 Inches)HOSE, (114.00 Inches)
-
2212540A3 HOUSINGHOUSING
-
2312242A1 LATCHLATCH
-
2421-8781051 FITTING, CHECK VALVE (CRANKCASE)FITTING, CHECK VALVE (CRANKCASE)
-
251257-87421 TANKTANK
-
2636-43298A2 CAP ASSEMBLY, OIL TANKCAP ASSEMBLY, OIL TANK
-
2725-11332 O-RING, (2.225 x .210), CAPO-RING, (2.225 x .210), CAP
-
28816190A4 HOUSING ASSEMBLY, AdaptorHOUSING ASSEMBLY, Adaptor
-
2925-11332 O-RING, (2.225 x .210), ADAPTOR HOUSINGO-RING, (2.225 x .210), ADAPTOR HOUSING
-
3032-99802 TUBE, OIL PICK-UPTUBE, OIL PICK-UP
-
3136-43300A9 CAP ASSEMBLY, OIL RESERVOIRCAP ASSEMBLY, OIL RESERVOIR
-
3227-43307T GASKET, RESERVOIR CAPGASKET, RESERVOIR CAP
-
3399022A1 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
3411-99265 PUSH NUTPUSH NUT
-
3554-415821 CLAMP, OIL HOSE (SMALL)CLAMP, OIL HOSE (SMALL)
