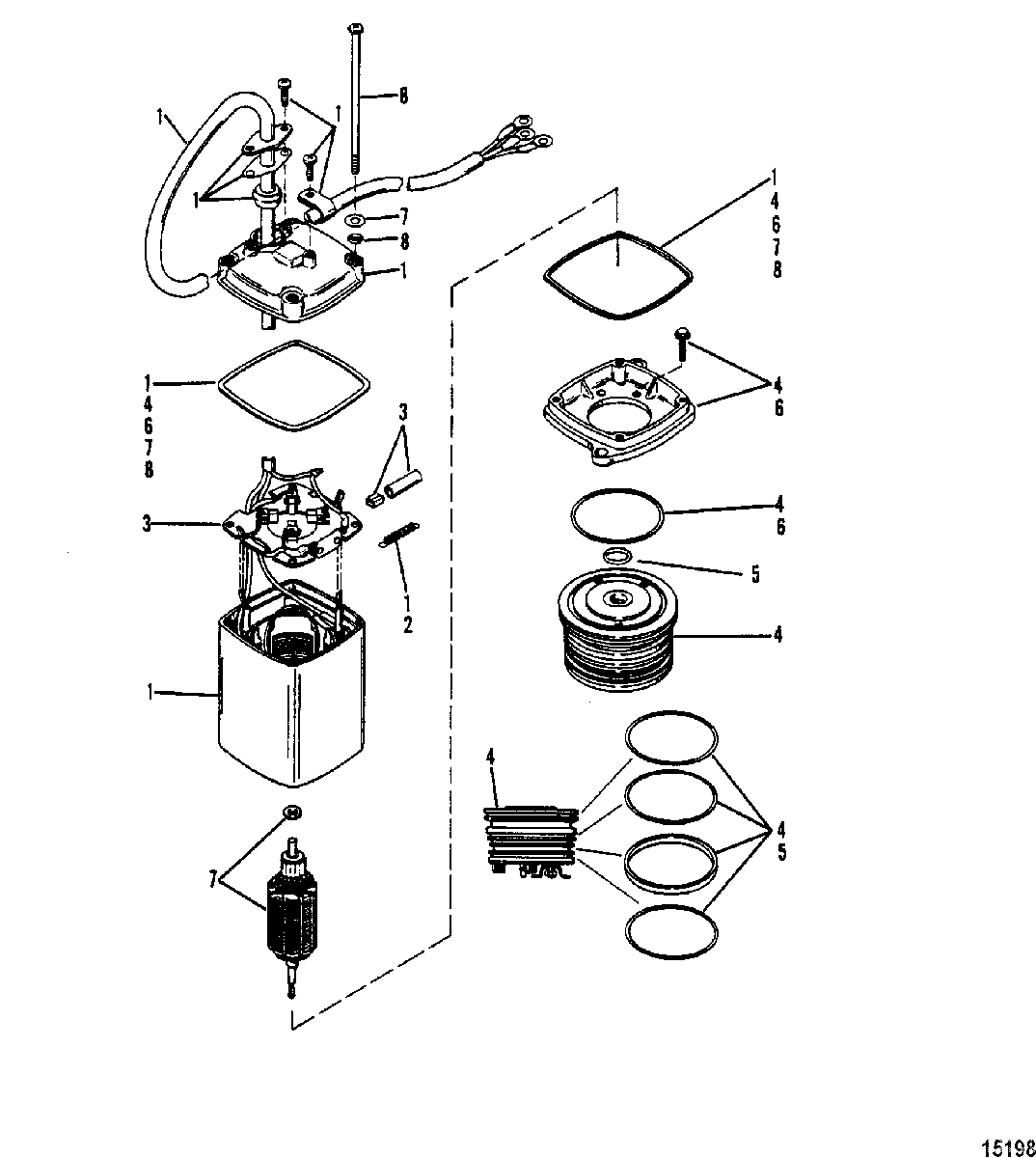

POWER TRIM PUMP для Mercury - XR-4 0B242885 THRU 0C100860
-
№АртикулНазвание
-
-826729A10 PUMP AND MOTORPUMP AND MOTOR
-
1826729A10 FRAME AND FIELD KITFRAME AND FIELD KIT
-
212665 SPRING KIT, BrushSPRING KIT, Brush
-
3826729A10 BRUSH CARD KITBRUSH CARD KIT
-
4826729A10 PUMP AND END FRAME KITPUMP AND END FRAME KIT
-
5126631 SEAL KIT, PumpSEAL KIT, Pump
-
6826729A10 END FRAME KITEND FRAME KIT
-
7826729A10 ARMATURE KITARMATURE KIT
-
812664 THRU BOLT KITTHRU BOLT KIT
Все узлы модели:
- CARBURETOR ASSEMBLY
- CHOKE PLATE AND THROTTLE LEVERS
- COWL MOUNTING BRACKET
- COWLS AND FRONT COVER
- CRANKSHAFT, PISTONS AND CONNECTING RODS
- CYLINDER BLOCK AND END CAPS
- DRIVESHAFT HOUSING AND EXHAUST TUBE
- EXHAUST MANIFOLD AND EXHAUST PLATE
- FLYWHEEL, STARTER MOTOR AND IGNITION COILS
- FUEL PUMP AND CARBURETOR
- GEAR HOUSING(DRIVESHAFT) (CASTING #1674-814247C)
- GEAR HOUSING(DRIVESHAFT)(CASTING #1655-9572C)
- GEAR HOUSING(PROPELLER SHAFT) (CASTING #1674-814247C)
- GEAR HOUSING(PROPELLER SHAFT)(CASTING #1655-9572C)
- OIL INJECTION COMPONENTS
- POWER TRIM COMPONENTS
- • POWER TRIM PUMP
- REED BLOCK AND CYLINDER HEAD
- Service/Support Material
- STARTER MOTOR ASSEMBLY
- SWIVEL BRACKET AND STEERING ARM
- TACHOMETER, TRIM GAUGE, TEMPERATURE GAUGE
- THROTTLE LEVER AND SHIFT SHAFT
- TRANSOM BRACKET
- WIRING HARNESS, STARTER SOLENOID AND RECTIFIER
