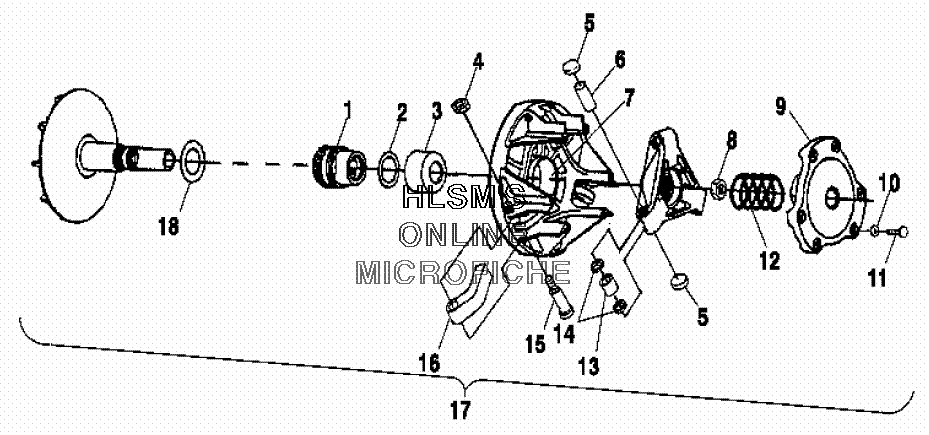

CLUTCH - DRIVE для Polaris MAGNUM 500 EB (A00CD50AB) - 2000 года выпуска
-
№АртикулНазвание
-
11520231 CLUTCH, DRIVE, 1-WAY, HLRDCLUTCH, DRIVE, 1-WAY, HLRD
-
27556009 WASHERWASHER
-
35631119 SPACERSPACER
-
47541906 NUT, FLEX LOCNUT, FLEX LOC
-
55431936 BUTTON, CLUTCHBUTTON, CLUTCH
-
65020422 PIN, ROLLERPIN, ROLLER
-
73585712 BEARINGBEARING
-
87547130 LIMITING NUT, KITLIMITING NUT, KIT
-
93576510 BEARING, COVERBEARING, COVER
-
107552801 LOCK WASHERLOCK WASHER
-
117512176 SCREWSCREW
-
127041157 SPRING, CLUTCHSPRING, CLUTCH
-
131321457 ROLLER/BUSHING ASSY.ROLLER/BUSHING ASSY.
-
145430945 WASHERWASHER
-
157512266 BOLT, SPECIALBOLT, SPECIAL
-
165630513 WT, SHIFT 10MHWT, SHIFT 10MH
-
171321706 CLUTCH, DRIVE BRAKING (INCL. ALL LESS 4,12)CLUTCH, DRIVE BRAKING (INCL. ALL LESS 4,12)
-
187556008 WASHERWASHER
