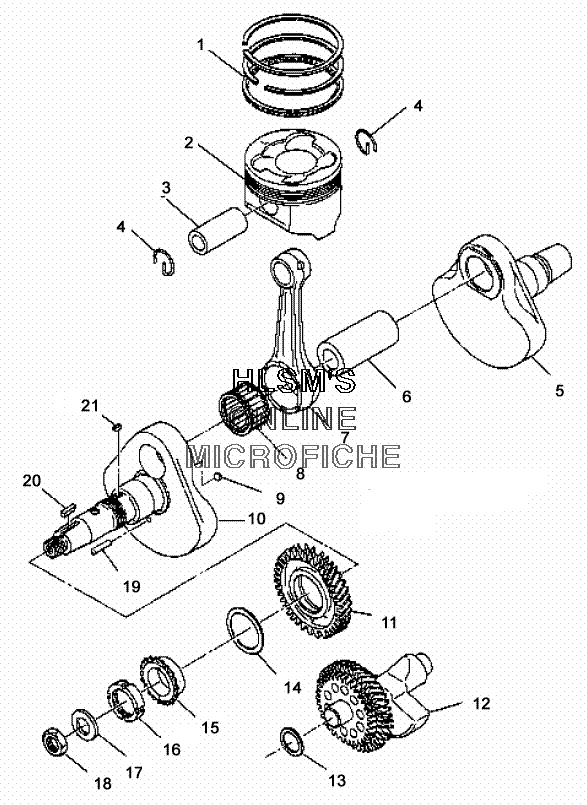

CRANKSHAFT W/ PISTON для Polaris MAGNUM 500 EB (A00CD50AB) - 2000 года выпуска
-
№АртикулНазвание
-
13085379 RING SET (STD)RING SET (STD)
-
13085380 RING SET (.25MM/.010 OS) (OPT)RING SET (.25MM/.010 OS) (OPT)
-
13085381 RING SET (.50MM/.020 OS) (OPT)RING SET (.50MM/.020 OS) (OPT)
-
23085866 PISTON SET (STD) (INCL. 2-4)PISTON SET (STD) (INCL. 2-4)
-
23085867 PISTON, SET (0.25 O/S) (INCL. 2-4) (OPT)PISTON, SET (0.25 O/S) (INCL. 2-4) (OPT)
-
23085868 PISTON, SET (0.50 O/S) (INCL. 2-4) (OPT)PISTON, SET (0.50 O/S) (INCL. 2-4) (OPT)
-
43085534 CLIPCLIP
-
53085374 CRANKSHAFT#2, PTO SIDECRANKSHAFT#2, PTO SIDE
-
63085341 PIN, CRANKPIN, CRANK
-
73085376 ROD, CONNECTINGROD, CONNECTING
-
83085400 BEARING, LARGE ENDBEARING, LARGE END
-
93085024 BALL, STEELBALL, STEEL
-
103085373 CRANKSHAFT#1, MAG SIDECRANKSHAFT#1, MAG SIDE
-
103085399 CRANKSHAFT ASSY. (INCL. 5-11,19)CRANKSHAFT ASSY. (INCL. 5-11,19)
-
113085852 BALANCER, GEARBALANCER, GEAR
-
123085404 SHAFT, BALANCERSHAFT, BALANCER
-
133084895 SPACER (0.8) (OPT)SPACER (0.8) (OPT)
-
133084896 SPACER (1.0) (OPT)SPACER (1.0) (OPT)
-
133084897 SPACER (1.2) (OPT)SPACER (1.2) (OPT)
-
143084892 SPACER (0.8) (OPT)SPACER (0.8) (OPT)
-
143084893 SPACER (1.0) (OPT)SPACER (1.0) (OPT)
-
143084894 SPACER (1.2) (OPT)SPACER (1.2) (OPT)
-
143240088 SPACER (0.6) (OPT)SPACER (0.6) (OPT)
-
153084882 SPROCKET 1SPROCKET 1
-
163085528 NUT, SLITNUT, SLIT
-
173083904 WASHERWASHER
-
183083905 LOCKNUTLOCKNUT
-
193085346 PIN, DOWELPIN, DOWEL
-
203081447 KEYKEY
-
213080130 KEY, WOODRUFFKEY, WOODRUFF
