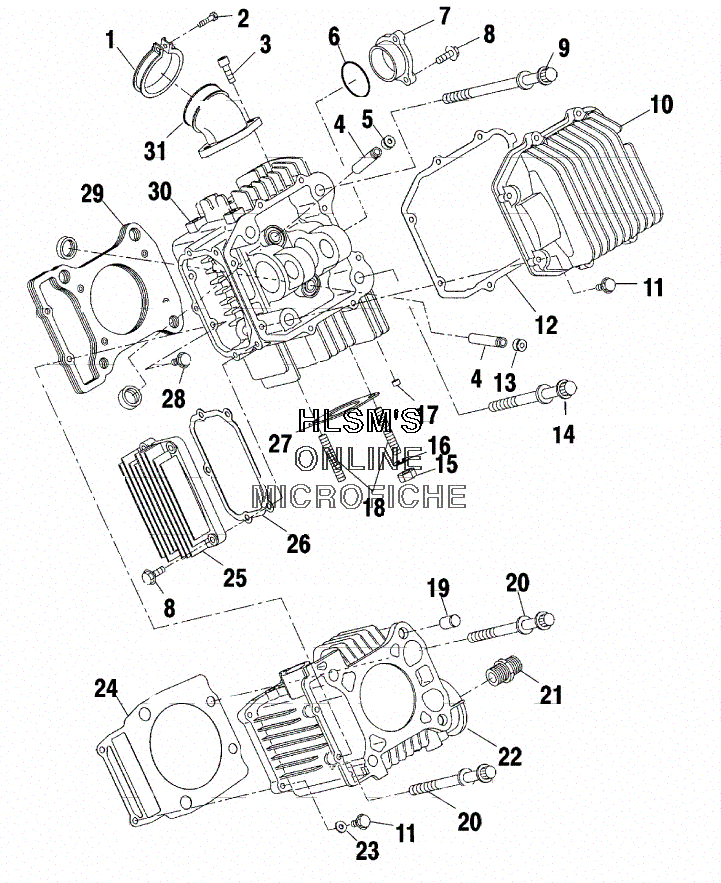

CYLINDER для Polaris SPORTSMAN 335 (A00CH33AB) (PORCHE RED) - 2000 года выпуска
-
№АртикулНазвание
-
13083166 BAND ASSY. (INCL. 2)BAND ASSY. (INCL. 2)
-
23081497 SCREWSCREW
-
33081330 BOLT, ALLENBOLT, ALLEN
-
43084994 GUIDE, VALVEGUIDE, VALVE
-
53084858 SEAL, INTAKE VALVESEAL, INTAKE VALVE
-
63084867 O-RINGO-RING
-
73084866 ADAPTER, CAMSHAFTADAPTER, CAMSHAFT
-
83084877 BOLT, FLANGEBOLT, FLANGE
-
93084875 BOLTBOLT
-
103085767 COVER, ROCKERCOVER, ROCKER
-
113084874 BOLT, FLANGEBOLT, FLANGE
-
123085831 GASKET, ROCKER COVERGASKET, ROCKER COVER
-
133084859 SEAL, EXHAUST VALVESEAL, EXHAUST VALVE
-
143085832 BOLT (HEAD)BOLT (HEAD)
-
153080285 NUTNUT
-
163080530 WASHER LOCKWASHER LOCK
-
173084862 PLUG, BLINDPLUG, BLIND
-
183085326 STUDSTUD
-
193084838 PIN, STRAIGHTPIN, STRAIGHT
-
203084873 BOLT, FLANGEBOLT, FLANGE
-
213084849 UNION, OIL PUMPUNION, OIL PUMP
-
223086847 CYLINDER, UNITCYLINDER, UNIT
-
233082206 WASHERWASHER
-
243085827 GASKET, CYLINDERGASKET, CYLINDER
-
253085830 COVER, CAMSHAFTCOVER, CAMSHAFT
-
263086850 GASKET, COVER CAMGASKET, COVER CAM
-
273085075 GASKET, EXHAUSTGASKET, EXHAUST
-
283084215 BOLT, FLANGEBOLT, FLANGE
-
293085829 GASKET, HEADGASKET, HEAD
-
303086849 HEAD, CYLINDER (INCL. 4,5,13,17,18)HEAD, CYLINDER (INCL. 4,5,13,17,18)
-
313084879 ADAPTERADAPTER
