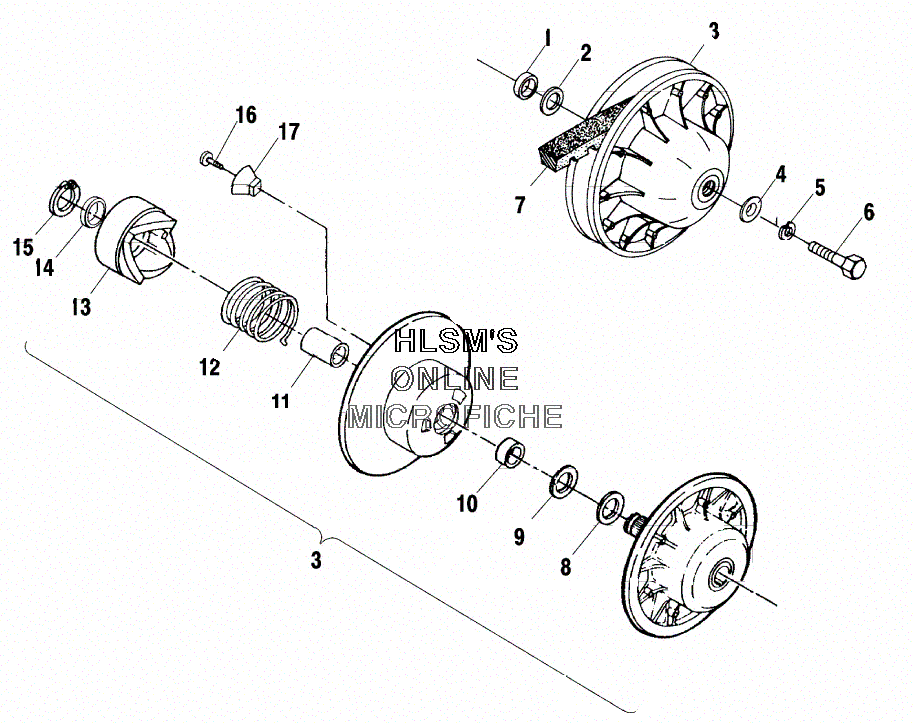

DRIVEN CLUTCH для Polaris SPORTSMAN 335 (A00CH33AB) (PORCHE RED) - 2000 года выпуска
-
№АртикулНазвание
-
15010409 SPACER, DRIVEN, ATVSPACER, DRIVEN, ATV
-
27556401 BUSHING (OPT)BUSHING (OPT)
-
31322182 CLUTCH, DRIVEN, 3-ANGLE, HVY RET (INCL. 8-17)CLUTCH, DRIVEN, 3-ANGLE, HVY RET (INCL. 8-17)
-
45220646 WASHER, DOMEDWASHER, DOMED
-
57552901 LOCK WASHERLOCK WASHER
-
67515327 BOLTBOLT
-
73211077 BELT, DRIVE, ATV, CLOSE TOLBELT, DRIVE, ATV, CLOSE TOL
-
87555898 WASHER (.020'') (OPT)WASHER (.020'') (OPT)
-
87556076 WASHER (.25'') (OPT)WASHER (.25'') (OPT)
-
97556804 WASHER (OPT)WASHER (OPT)
-
103576504 BUSHING, DRIVENBUSHING, DRIVEN
-
113576511 BUSHINGBUSHING
-
127041198 SPRING, CLUTCH (RED)SPRING, CLUTCH (RED)
-
135131447 RAMP, COMP (MACH)RAMP, COMP (MACH)
-
145210752 SPACERSPACER
-
157710448 RING, RET.RING, RET.
-
167511854 BOLTBOLT
-
175430766 BUTTON, RAMPBUTTON, RAMP
