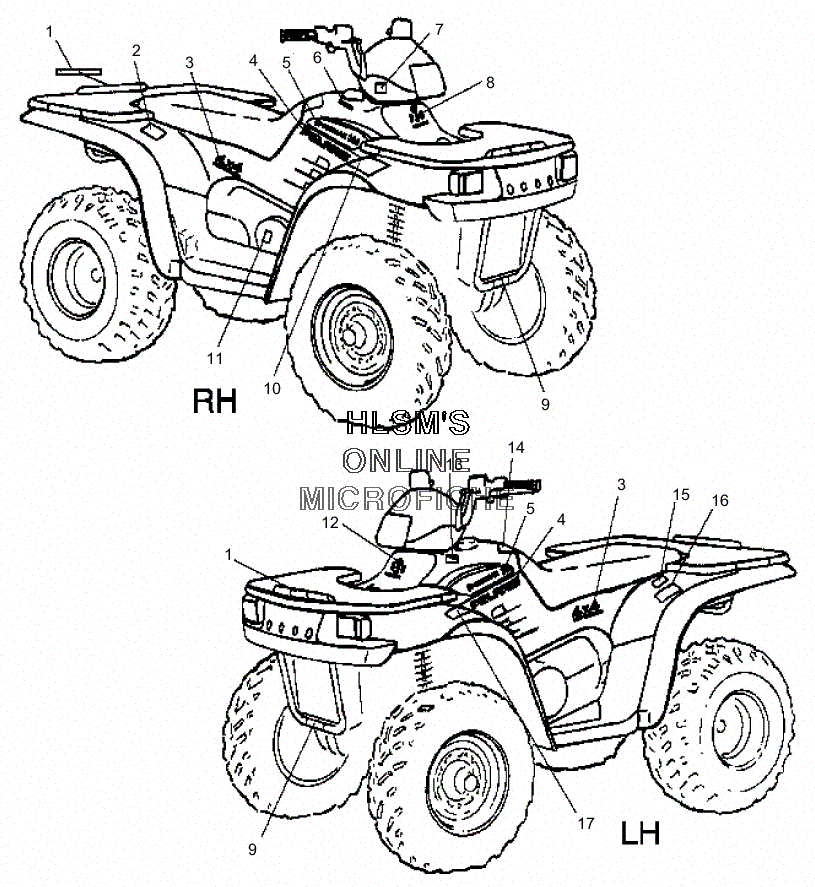

DECALS для Polaris SPORTSMAN 335 (A00CH33AD) (PORCHE RED) - 2000 года выпуска
-
№АртикулНазвание
-
17074954 DECAL, DECK (REAR)DECAL, DECK (REAR)
-
27074110 DECAL, LOAD DIST. (4 WHL.)DECAL, LOAD DIST. (4 WHL.)
-
37078455 DECAL, ''4X4 ISD'' (GOLD/LEFT)DECAL, ''4X4 ISD'' (GOLD/LEFT)
-
37078456 DECAL, ''4X4 ISD'' (GOLD/RIGHT)DECAL, ''4X4 ISD'' (GOLD/RIGHT)
-
47078452 DECL, ''POLARIS'', SIDEPANEL (BLACK)DECL, ''POLARIS'', SIDEPANEL (BLACK)
-
57078809 DECAL, TANK SIDE, ''335'' (LEFT)DECAL, TANK SIDE, ''335'' (LEFT)
-
57078810 DECAL,TANK SIDE,RH,''335'' (RIGHT)DECAL,TANK SIDE,RH,''335'' (RIGHT)
-
67074935 DECAL 95-97 WARNING AWD SWITCHDECAL 95-97 WARNING AWD SWITCH
-
77078003 DECAL-HEADLIGHT ADJUSTMENTDECAL-HEADLIGHT ADJUSTMENT
-
87078808 DECAL, ''335''4-STK, COVER (FRONT)DECAL, ''335''4-STK, COVER (FRONT)
-
97074220 DECAL, MACPHERSON STRUTDECAL, MACPHERSON STRUT
-
107079085 DECAL - WARNDECAL - WARN
-
117078577 DECAL, DRAIN RECOILDECAL, DRAIN RECOIL
-
127078315 LOGO, 45TH ANNIVERSARY (BUILT BEFORE 12/31/99)LOGO, 45TH ANNIVERSARY (BUILT BEFORE 12/31/99)
-
127078465 DECAL, STAR LOGO (BUILT AFTER 12/31/99)DECAL, STAR LOGO (BUILT AFTER 12/31/99)
-
137076273 DECAL, OVERRIDE SW.(AWD)DECAL, OVERRIDE SW.(AWD)
-
147078253 DECALDECAL
-
157077920 DECAL, 98 WARNING PASS.DECAL, 98 WARNING PASS.
-
167075834 DECAL, TIRE PRESSDECAL, TIRE PRESS
-
177079083 DECAL - WARNDECAL - WARN
