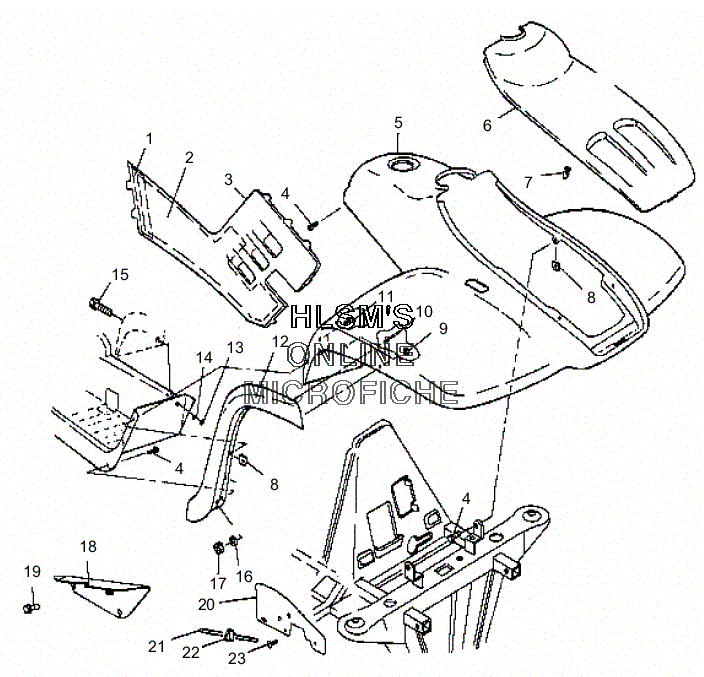

FENDER - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 335 (A00CH33AD) (PORCHE RED) - 2000 года выпуска
-
№АртикулНазвание
-
15811491 FOIL, SIDEPANEL GEN IV (RIGHT)FOIL, SIDEPANEL GEN IV (RIGHT)
-
25810996 FOIL, FOAM SIDEPANELFOIL, FOAM SIDEPANEL
-
35431809-136 PANEL, SIDE (LEFT/PORCHE RED)PANEL, SIDE (LEFT/PORCHE RED)
-
32620085-136 PANEL/FOIL ASSY. (RIGHT/PORCHE RED)PANEL/FOIL ASSY. (RIGHT/PORCHE RED)
-
47512232 BOLTBOLT
-
47512232 BOLTBOLT
-
52631987-136 CAB SERVICE (FRONT/PORCHE RED)CAB SERVICE (FRONT/PORCHE RED)
-
65432088-136 COVER (FRONT/P.RED)COVER (FRONT/P.RED)
-
77670085 CLIP, SPRINGCLIP, SPRING
-
87670057 NUT, SPEEDNUT, SPEED
-
97670068 NUT, PUSH-ONNUT, PUSH-ON
-
107661645 RIVETRIVET
-
117517312 SCREWSCREW
-
125431798 GUARD, MUD (FRONT/LEFT/BLACK)GUARD, MUD (FRONT/LEFT/BLACK)
-
125431799 GUARD, MUD (FRONT/RIGHT/BLACK)GUARD, MUD (FRONT/RIGHT/BLACK)
-
137541925 NUTNUT
-
147555792 WASHERWASHER
-
157512085 SCREWSCREW
-
167555931 WASHERWASHER
-
177542122 NUT, LOCKNUT, LOCK
-
185244913-067 GUARD, SPLASH (RIGHT/BLACK)GUARD, SPLASH (RIGHT/BLACK)
-
185244914-067 GUARD, SPLASH (RIGHT/BLACK)GUARD, SPLASH (RIGHT/BLACK)
-
197517685 SCREWSCREW
-
205811917 SHIELD, DEFLECTORSHIELD, DEFLECTOR
-
215411668 BREATHER, LINE (112 CM) (SLIT) (OPT)BREATHER, LINE (112 CM) (SLIT) (OPT)
-
227670109 CLIP, ROUTINGCLIP, ROUTING
-
237621509 RIVET, PLASTI-LOC.RIVET, PLASTI-LOC.
