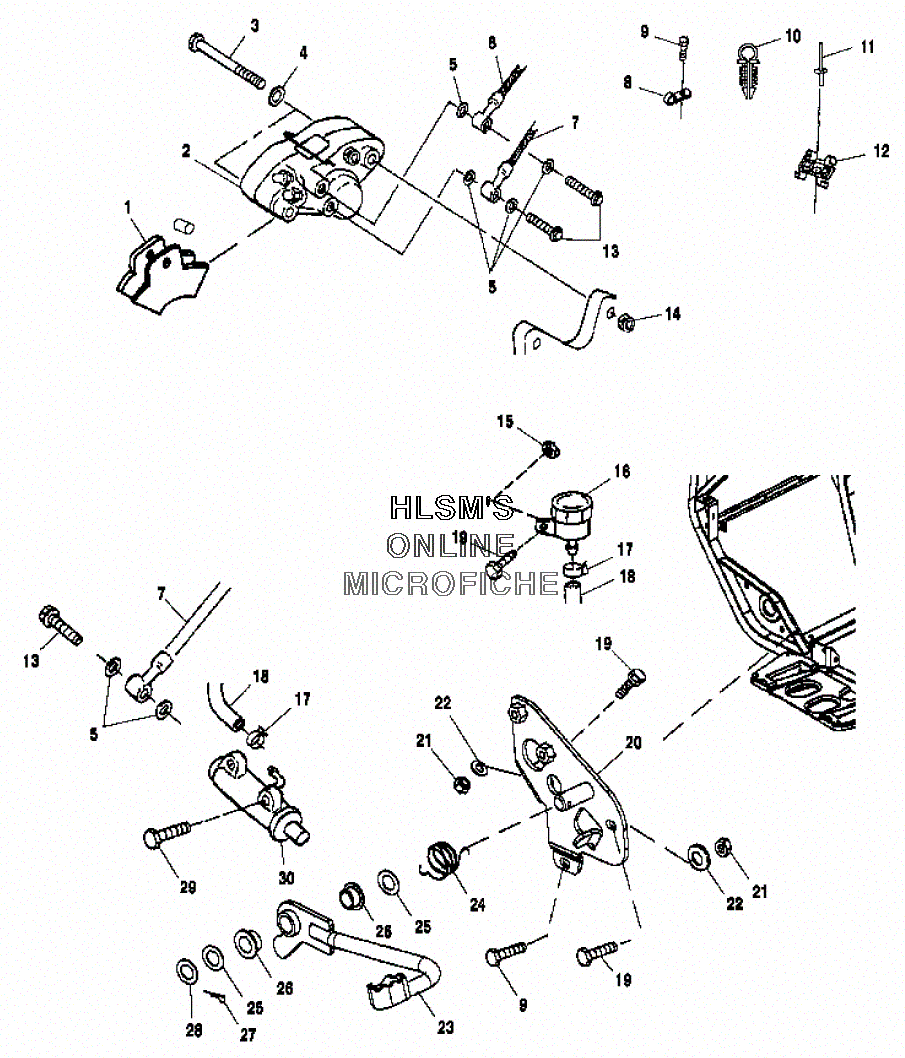

BRAKE - REAR для Polaris XPEDITION 425 (A00CK42AA) (DESERT DUNE) - 2000 года выпуска
-
№АртикулНазвание
-
12201189 BRAKEPAD, AXLE WW KIT (REAR) (INCL. SPACER AND PIN)BRAKEPAD, AXLE WW KIT (REAR) (INCL. SPACER AND PIN)
-
11910339 BRAKEPADBRAKEPAD
-
11930860 BRAKEPADBRAKEPAD
-
21910270 CALIPER ASSY., BRAKE DH2PCALIPER ASSY., BRAKE DH2P
-
37515406 SCREW CAPSCREW CAP
-
47555806 WASHERWASHER
-
55410988 SEALSEAL
-
61910286 LINE, BRAKE HAND MASTER CYLINDER (FRONT)LINE, BRAKE HAND MASTER CYLINDER (FRONT)
-
71910288 LINE, BRAKE FOOT MASTER CYLINDER (REAR)LINE, BRAKE FOOT MASTER CYLINDER (REAR)
-
87080573 CLAMP, RUBBER-COATED (.562)CLAMP, RUBBER-COATED (.562)
-
97517386 SCREWSCREW
-
107080762 CLIP, BRAKELINE (.250 ID)CLIP, BRAKELINE (.250 ID)
-
117661048 RIVETRIVET
-
127080816 CLIP-T, DUAL (3/16'' LINE)CLIP-T, DUAL (3/16'' LINE)
-
131930674 BOLT, BANJO BRAKEBOLT, BANJO BRAKE
-
147542403 NUT, LOCKNUT, LOCK
-
157542153 NUTNUT
-
161930854 RESERVOIR ASSY., BRAKE (REAR)RESERVOIR ASSY., BRAKE (REAR)
-
177080003 CLAMP, HOSECLAMP, HOSE
-
181910331 HOSE, RESERVOIR HBHOSE, RESERVOIR HB
-
197512240 BOLTBOLT
-
201012753-067 MOUNT, PIVOT BRAKE (REAR/BLACK)MOUNT, PIVOT BRAKE (REAR/BLACK)
-
217542122 NUT, LOCKNUT, LOCK
-
227558301 WASHERWASHER
-
231012991-067 BRAKE ROD, HB 5-SPEED (BLACK)BRAKE ROD, HB 5-SPEED (BLACK)
-
247041750 SPRING, TORSION BRAKESPRING, TORSION BRAKE
-
257555919 WASHERWASHER
-
265433189 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
277661401 COTTER PINCOTTER PIN
-
287556090 WASHER, SPRINGWASHER, SPRING
-
297515158 SCREWSCREW
-
301910311 BRAKE MASTER CYLINDER, FOOT BANJOBRAKE MASTER CYLINDER, FOOT BANJO
