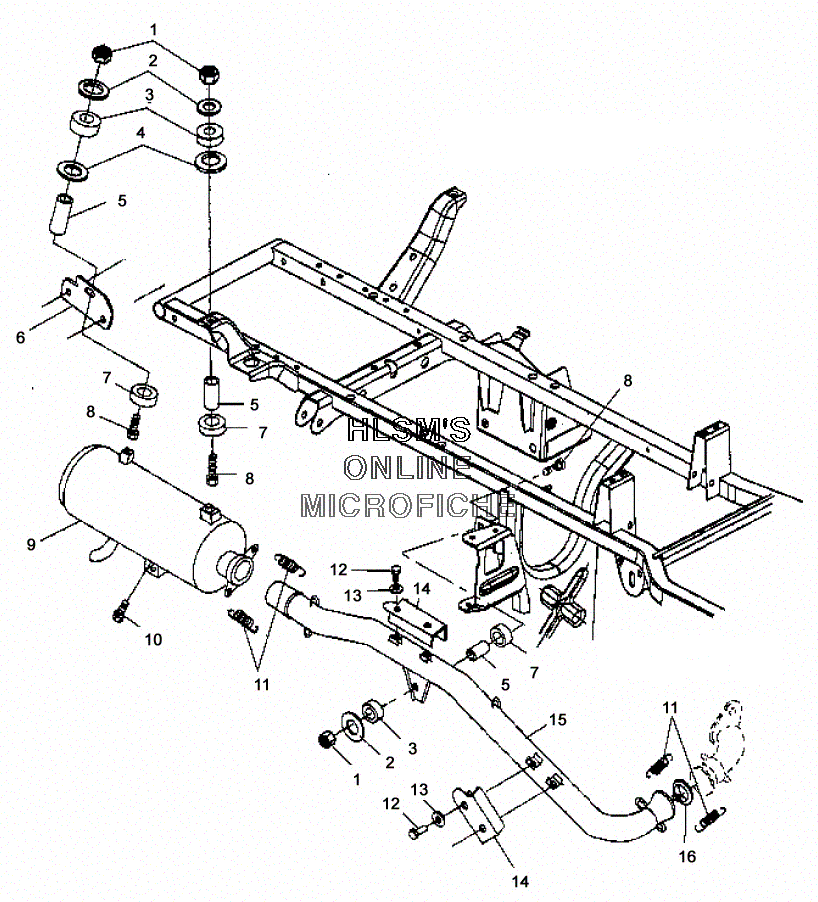

EXHAUST SYSTEM для Polaris DIESEL (A01CH46CA) - 2001 года выпуска
-
№АртикулНазвание
-
17542324 NUTNUT
-
27555716 WASHERWASHER
-
35410436 WASHER, RUBBERWASHER, RUBBER
-
47555863 BUSHINGBUSHING
-
55010192 BUSHING, RES. MOUNTBUSHING, RES. MOUNT
-
75410241 DAMPENERDAMPENER
-
87515316 BOLTBOLT
-
91260715-029 SILENCER, EXHAUST (BLACK)SILENCER, EXHAUST (BLACK)
-
107512666 BOLTBOLT
-
117042031 SPRING, EXHAUSTSPRING, EXHAUST
-
127515197 SCREWSCREW
-
137555935 WASHERWASHER
-
145241678 SHIELD, HEAT, EXHAUSTSHIELD, HEAT, EXHAUST
-
151260919-029 EXHAUST PIPE (BLACK)EXHAUST PIPE (BLACK)
-
165240898 SEAL, EXHAUSTSEAL, EXHAUST
