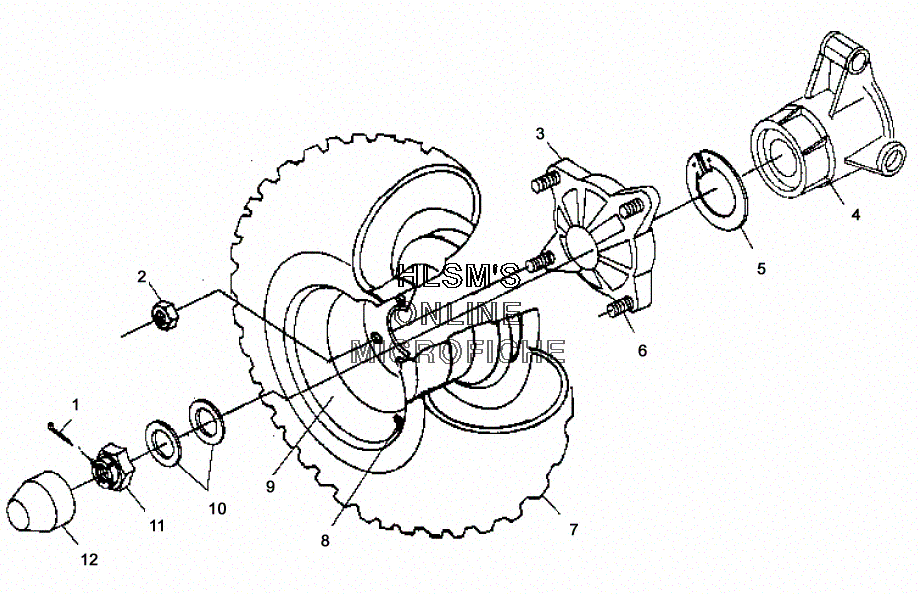

WHEEL - REAR для Polaris DIESEL (A01CH46CA) - 2001 года выпуска
-
№АртикулНазвание
-
17661404 PIN, COTTERPIN, COTTER
-
27542459 NUT, FLANGEDNUT, FLANGED
-
35131649 HUB, WHEEL (REAR)HUB, WHEEL (REAR)
-
57710440 RING, RETAININGRING, RETAINING
-
67515513 STUDSTUD
-
75410948 TIRE, TRACKER (REAR) (25X11-10)TIRE, TRACKER (REAR) (25X11-10)
-
81525017 VALVE, RIMVALVE, RIM
-
91520217-117 RIM (8.5X10) (REAR/SILVER)RIM (8.5X10) (REAR/SILVER)
-
107555796 WASHER, CONEWASHER, CONE
-
117543005 NUT, CASTLENUT, CASTLE
-
125411164 DUSTCOVER, HUBDUSTCOVER, HUB
