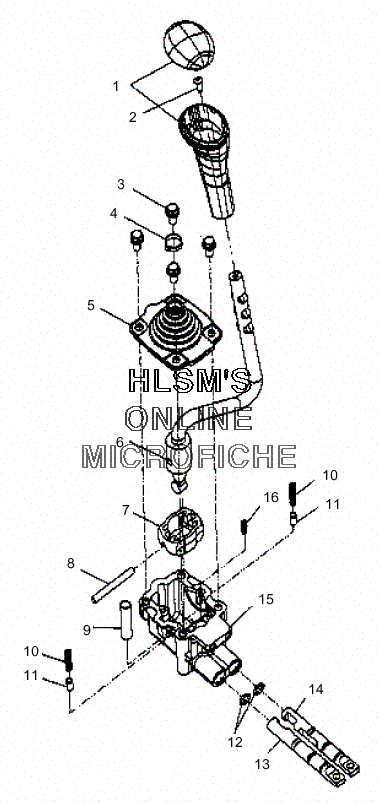

GEAR SELECTOR для Polaris MAGNUM 325 2X4 (A01CB32AA) - 2001 года выпуска
-
№АртикулНазвание
-
01341271 SELECTOR ASSY., GEAR (INCL. 1-16)SELECTOR ASSY., GEAR (INCL. 1-16)
-
13233195 GEAR SELECT KNOB, HLR ASSY. (BLACK)GEAR SELECT KNOB, HLR ASSY. (BLACK)
-
27512024 SCREWSCREW
-
33233649 SCREWSCREW
-
43233131 STRAP, WIRESTRAP, WIRE
-
53233648 COVER, GEAR SELECTOR BOOTCOVER, GEAR SELECTOR BOOT
-
63233658 SUBASSY., HANDLE GEAR SELECTORSUBASSY., HANDLE GEAR SELECTOR
-
73233646 PLASTIC, SPHEREPLASTIC, SPHERE
-
83233754 PIN, DOWELPIN, DOWEL
-
93233644 PIN, DOWELPIN, DOWEL
-
103233642 SPRING, DETENTSPRING, DETENT
-
113233060 BULLET, DETENTBULLET, DETENT
-
123233076 O-RINGO-RING
-
133233639 SLIDE, LOWSLIDE, LOW
-
143233640 SLIDE, HIGH/REVSLIDE, HIGH/REV
-
153233641 GEAR, SELECTOR BODYGEAR, SELECTOR BODY
-
163233643 SPRING, CENTERINGSPRING, CENTERING
