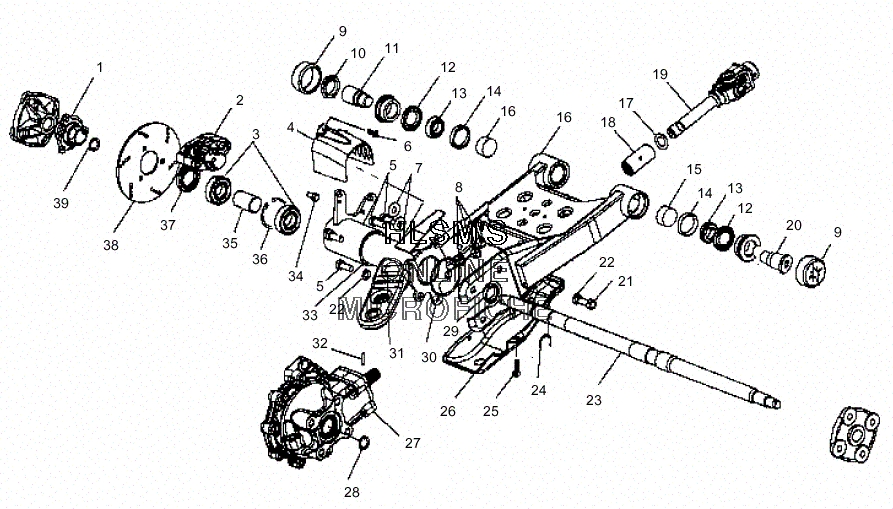

SUSPENSION - REAR SWING ARM W/ AXLE для Polaris MAGNUM 325 2X4 (A01CB32AA) - 2001 года выпуска
-
№АртикулНазвание
-
15132152 HUB, BRAKE DISCHUB, BRAKE DISC
-
33513523 BEARING, BALL DBL SEALBEARING, BALL DBL SEAL
-
45411653 SHIELD, BRAKE LINE (REAR)SHIELD, BRAKE LINE (REAR)
-
57517604 BOLTBOLT
-
67512084 SCREWSCREW
-
77555721 WASHERWASHER
-
87542703 NUT, FLEXNUT, FLEX
-
95411532 CAP, SWINGARM PIVOTCAP, SWINGARM PIVOT
-
105131863 NUT, JAM SWINGARM PIVOTNUT, JAM SWINGARM PIVOT
-
115131864 PIVOT, SWINGARM THREADEDPIVOT, SWINGARM THREADED
-
123610072 SEAL, SWINGARM PIVOTSEAL, SWINGARM PIVOT
-
133554506 BEARING, TAPER ROLL.CONEBEARING, TAPER ROLL.CONE
-
143554507 BEARING, TAPER ROLL CUPBEARING, TAPER ROLL CUP
-
155411602 SEAL, SWINGARM PIVOTSEAL, SWINGARM PIVOT
-
161541577 SWINGARM, ASSY. (INCL. 14,15)SWINGARM, ASSY. (INCL. 14,15)
-
175411092 O-RINGO-RING
-
185132201 COUPLING, PROP SHAFT GREASEDCOUPLING, PROP SHAFT GREASED
-
187080433 ZERK, FITTING THREADEDZERK, FITTING THREADED
-
191380137 PROPSHAFT ASSY. (REAR)PROPSHAFT ASSY. (REAR)
-
205132683 PIVOT, SWINGARM (RIGHT)PIVOT, SWINGARM (RIGHT)
-
217517585 BOLT, HEX HEAD GR5-ZBOLT, HEX HEAD GR5-Z
-
227553201 LOCK WASHERLOCK WASHER
-
235131862 AXLE (REAR)AXLE (REAR)
-
247710482 RING, RETAININGRING, RETAINING
-
257517612 SCREWSCREW
-
261012881 SKID PLATE (REAR)SKID PLATE (REAR)
-
265242851-067 PLATE, SKID HOUSING (REAR/BLACK)PLATE, SKID HOUSING (REAR/BLACK)
-
265811716 PAD, RUBBERPAD, RUBBER
-
285411531 O-RINGO-RING
-
295131930 COLLAR, AXLE LOCK (REAR)COLLAR, AXLE LOCK (REAR)
-
305411707 O-RINGO-RING
-
317072533 DECAL, HITCH (1225)DECAL, HITCH (1225)
-
327661913 PIN, SPRINGPIN, SPRING
-
331013193-067 AXLE TUBE, WELD (LEFT/BLACK)AXLE TUBE, WELD (LEFT/BLACK)
-
347515481 BOLTBOLT
-
355132075 SPACER, BEARINGSPACER, BEARING
-
367710471 RING, RETAINER INTRING, RETAINER INT
-
373610071 SEAL, AXLE (REAR)SEAL, AXLE (REAR)
-
385243678 DISC, BRAKE (7.00 OD,.188 THK)DISC, BRAKE (7.00 OD,.188 THK)
-
395411092 O-RINGO-RING
