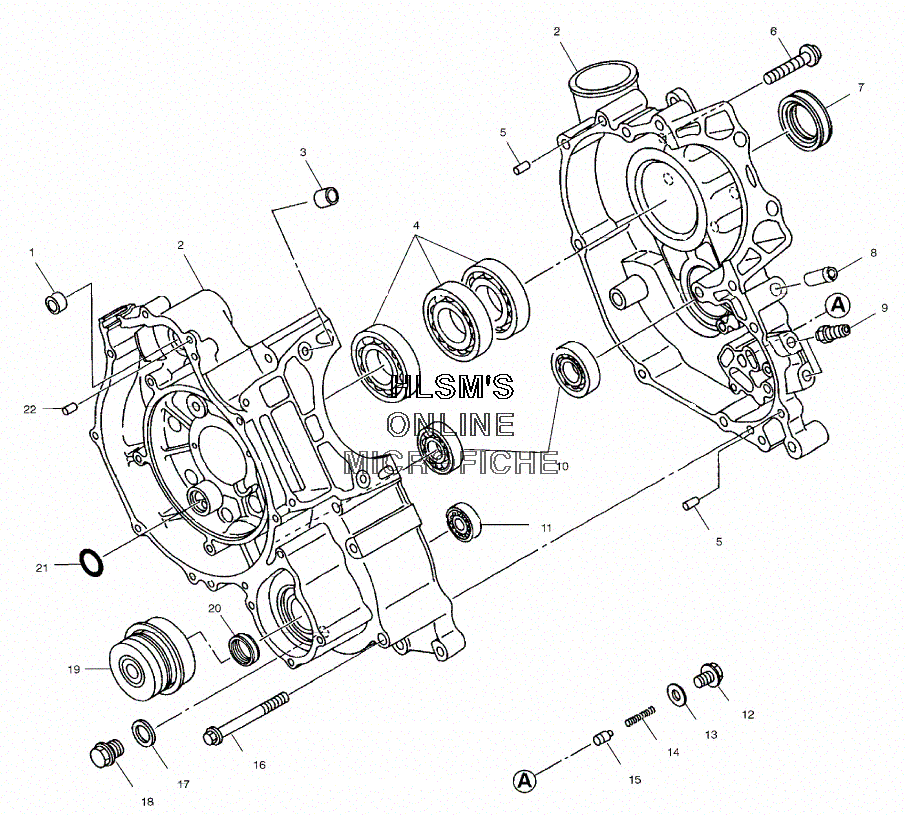

CRANKCASE для Polaris MAGNUM 500 HDS (A01CD50FB) (GUN METAL) - 2001 года выпуска
-
№АртикулНазвание
-
13083669 BUSHING, STARTERBUSHING, STARTER
-
23085633 CRANKCASE ASSY. (INCL. 1,4,5,7,10,11,16,19,20,22)CRANKCASE ASSY. (INCL. 1,4,5,7,10,11,16,19,20,22)
-
33084838 PIN, STRAIGHTPIN, STRAIGHT
-
43080676 BEARING, BALLBEARING, BALL
-
53084840 PIN, DOWELPIN, DOWEL
-
63084205 SCREW AND WASHERSCREW AND WASHER
-
73084839 SEAL, OILSEAL, OIL
-
83085525 PIPE, AIR BREATHERPIPE, AIR BREATHER
-
93084842 UNIONUNION
-
103084834 BEARING, BALLBEARING, BALL
-
113084835 BEARING, BALLBEARING, BALL
-
123084845 PLUGPLUG
-
133084846 GASKET (ALUM.)GASKET (ALUM.)
-
143084844 SPRINGSPRING
-
153086810 VALVE, ONEWAYVALVE, ONEWAY
-
163084841 BOLT, FLANGEBOLT, FLANGE
-
173082956 GASKETGASKET
-
183083453 PLUG (SUBSTITUTED BY 3086749)PLUG (SUBSTITUTED BY 3086749)
-
193084837 SEAL, MECHANICALSEAL, MECHANICAL
-
203084836 SEAL, OILSEAL, OIL
-
213084847 O-RINGO-RING
-
223080103 PIN, DOWELPIN, DOWEL
