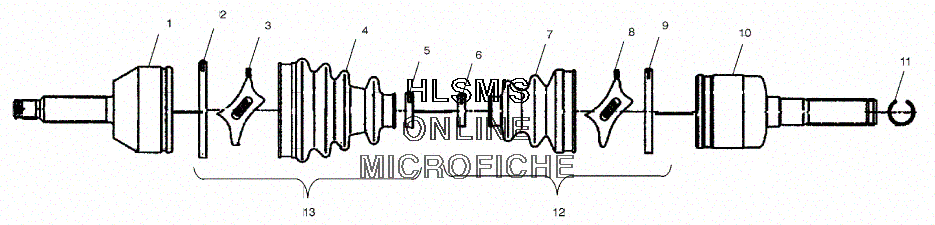

DRIVESHAFT - REAR для Polaris MAGNUM 500 HDS (A01CD50FB) (GUN METAL) - 2001 года выпуска
-
№АртикулНазвание
-
1380148 DRIVESHAFT, VISCO, (RIGHT)DRIVESHAFT, VISCO, (RIGHT)
-
1380149 DRIVESHAFT, VISCO (RIGHT)DRIVESHAFT, VISCO (RIGHT)
-
11350063 CV-JOINTCV-JOINT
-
21350062 CLAMP, LARGE 76.5 MMCLAMP, LARGE 76.5 MM
-
31350046 GREASE, REAR SHAFT 30G BTBGREASE, REAR SHAFT 30G BTB
-
43260114 BOOT, CV JOINTBOOT, CV JOINT
-
51350061 CLAMP, SMALL 25.0 MMCLAMP, SMALL 25.0 MM
-
61350057 CLAMP, SMALL 23.0 MMCLAMP, SMALL 23.0 MM
-
71350058 BOOTBOOT
-
81350059 GREASEGREASE
-
91350060 CLAMP, LARGE 66.5 MMCLAMP, LARGE 66.5 MM
-
101350055 PLUNGING, JOINT SHORT (INCL. 11)PLUNGING, JOINT SHORT (INCL. 11)
-
111350054 SPRING, RINGSPRING, RING
-
122201972 BOOT KIT (GEAR SIDE) (GEAR SIDE) (INCL. 6-9)BOOT KIT (GEAR SIDE) (GEAR SIDE) (INCL. 6-9)
-
132201630 BOOT KIT (WHEEL SIDE) (WHEEL SIDE) (INCL. 2-5)BOOT KIT (WHEEL SIDE) (WHEEL SIDE) (INCL. 2-5)
