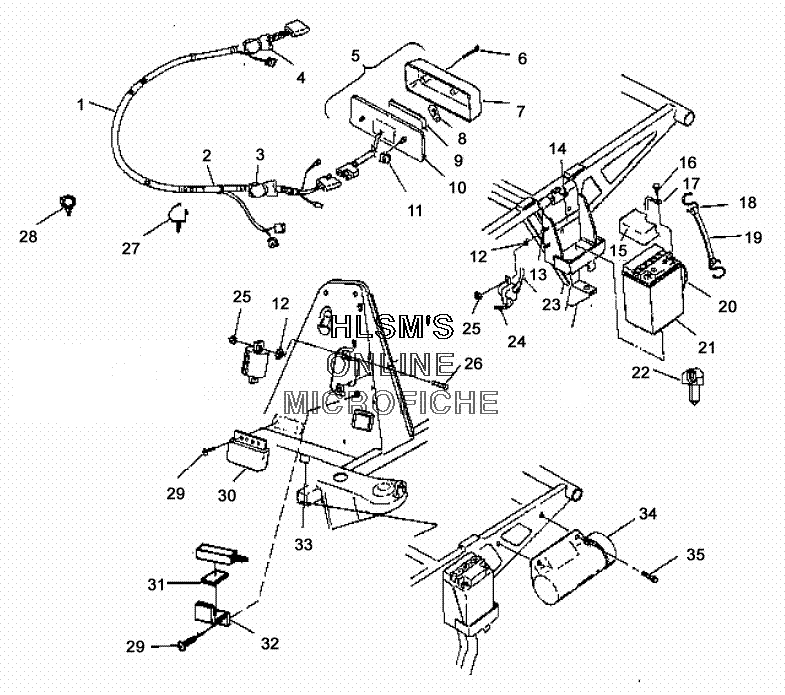

ELECTRICAL W/ TAILLIGHT ASSY. для Polaris SCRAMBLER 500 2X4 (A01BA50AB) - 2001 года выпуска
-
№АртикулНазвание
-
12460905 HARNESS, MAIN WIRE (SCR 500 2X4)HARNESS, MAIN WIRE (SCR 500 2X4)
-
27080138 STRAP, PANDUITSTRAP, PANDUIT
-
32434012 CIRCUIT BREAKER, 20 AMP.CIRCUIT BREAKER, 20 AMP.
-
42201795 CIRCUT BREAKER, FAN KITCIRCUT BREAKER, FAN KIT
-
52432038 LIGHT, TAIL/BRAKE (INCL. 6-10)LIGHT, TAIL/BRAKE (INCL. 6-10)
-
67512088 SCREW, TAILLIGHTSCREW, TAILLIGHT
-
74032085 LENS (STOP AND TAIL)LENS (STOP AND TAIL)
-
84030043 BULB, TAILLIGHTBULB, TAILLIGHT
-
94032086 GASKET (STOP AND TAIL)GASKET (STOP AND TAIL)
-
104032087 BACKING (STOP AND TAIL)BACKING (STOP AND TAIL)
-
117670093 CLIP, RETAINERCLIP, RETAINER
-
127571602 WASHERWASHER
-
137512027 SCREWSCREW
-
145810290 PAD, BATTERYPAD, BATTERY
-
155431769 COVER, BATTERYCOVER, BATTERY
-
162200361 BOLT, BATTERY KIT (SHORT)BOLT, BATTERY KIT (SHORT)
-
174010095 CABLE, BATTERY/ENGINE (BLACK)CABLE, BATTERY/ENGINE (BLACK)
-
187010032 HOOK, BATTERY H/DHOOK, BATTERY H/D
-
195410424 STRAP, BATTERY HOLDDOWNSTRAP, BATTERY HOLDDOWN
-
205432077 TUBE, BATTERY VENTTUBE, BATTERY VENT
-
214140006 BATTERYBATTERY
-
227670102 CLIP, SILENCERCLIP, SILENCER
-
234010094 CABLE, BATTERY/SOLENOID (RED)CABLE, BATTERY/SOLENOID (RED)
-
244010093 CABLE, SOLENOID/STARTERCABLE, SOLENOID/STARTER
-
257541925 NUTNUT
-
267512007 SCREWSCREW
-
277670109 CLIP, ROUTINGCLIP, ROUTING
-
284020149 CLIP, ROSEBUDCLIP, ROSEBUD
-
297512024 SCREWSCREW
-
304010137 LIMITER, RPM 350 HZ (LR44-3)LIMITER, RPM 350 HZ (LR44-3)
-
315810317 PAD, FUELTANK BRACKETPAD, FUELTANK BRACKET
-
325241416 BRACKET, CDIBRACKET, CDI
-
338360012 EDGE TRIM (BLACK)EDGE TRIM (BLACK)
-
342620087 TOOLBOX ASSY. (BUILT BEFORE 2/19/01)TOOLBOX ASSY. (BUILT BEFORE 2/19/01)
-
342632221 ASSY., TOOL BOX (BUILT AFTER 2/19/01)ASSY., TOOL BOX (BUILT AFTER 2/19/01)
-
345811079 GASKET, TOOLBOX LID (BUILT BEFORE 2/19/01)GASKET, TOOLBOX LID (BUILT BEFORE 2/19/01)
-
345812027 GASKET (BUILT AFTER 2/19/01)GASKET (BUILT AFTER 2/19/01)
-
345433777 LID (BUILT AFTER 2/19/01)LID (BUILT AFTER 2/19/01)
-
357517386 SCREWSCREW
