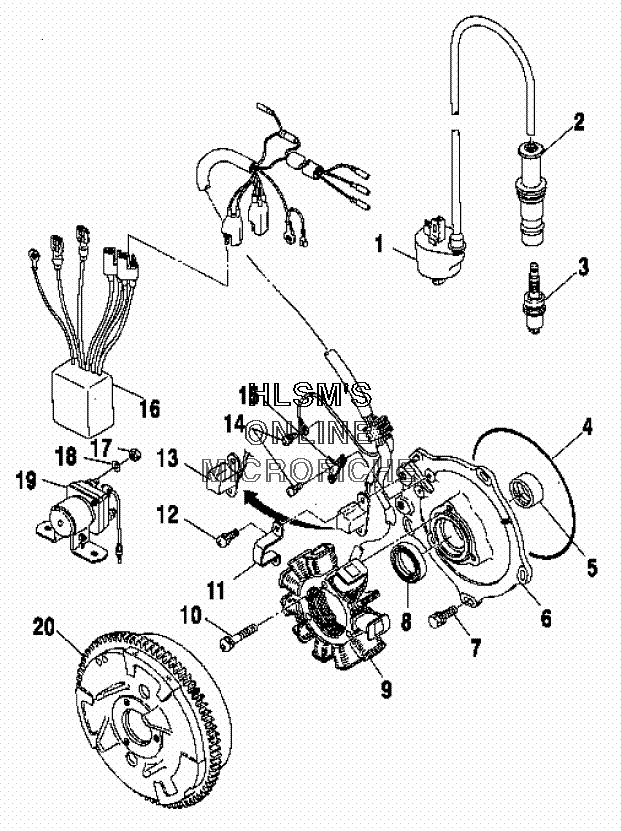

MAGNETO для Polaris SCRAMBLER 500 2X4 (A01BA50AB) - 2001 года выпуска
-
№АртикулНазвание
-
13084690 COIL ASSY., IGNITION (INCL. 1,2)COIL ASSY., IGNITION (INCL. 1,2)
-
13084979 COIL, IGNITIONCOIL, IGNITION
-
23084980 CAP, SPARKPLUGCAP, SPARKPLUG
-
33084997 SPARKPLUG (4)SPARKPLUG (4)
-
43084978 O-RINGO-RING
-
53084972 BEARING, METALBEARING, METAL
-
63086980 ASSY., PLATE (INCL. 5,6,8-12,15,14)ASSY., PLATE (INCL. 5,6,8-12,15,14)
-
63086981 PLATEPLATE
-
73081657 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
83084973 SEAL, OILSEAL, OIL
-
93086984 STATOR (INCL. 13)STATOR (INCL. 13)
-
103086985 SCREW AND WASHERSCREW AND WASHER
-
113085554 BAND, PULSEBAND, PULSE
-
123084976 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
133085360 COIL, PULSERCOIL, PULSER
-
143081256 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
153084977 CLAMPCLAMP
-
163086982 CDI, SYSTEMCDI, SYSTEM
-
173083073 NUTNUT
-
183080077 WASHER SPRINGWASHER SPRING
-
193085521 SOLENOIDSOLENOID
-
203086983 FLYWHEELFLYWHEEL
