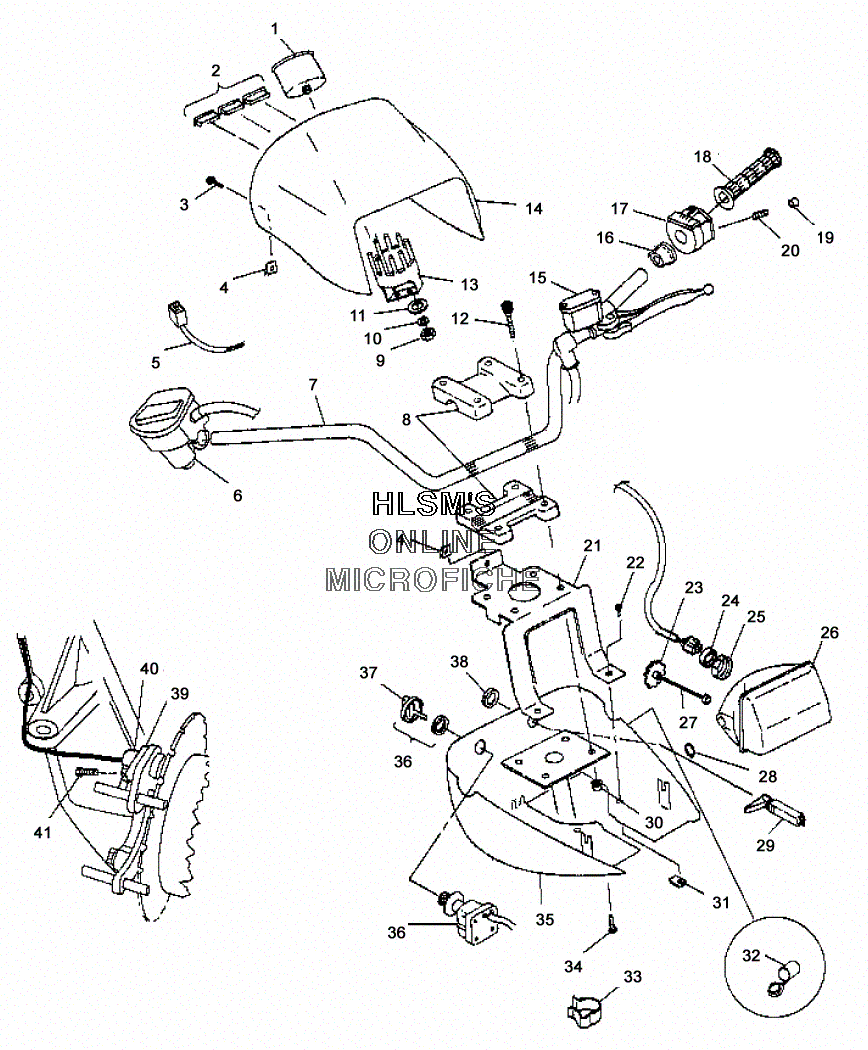

HANDLEBAR W/ HEADLIGHT для Polaris SPORTSMAN 500 DUSE (A01CH50AD) - 2001 года выпуска
-
№АртикулНазвание
-
13280290 SPEEDOMETER, 6-PULSESPEEDOMETER, 6-PULSE
-
25430967 PLUG, INDICATOR HOLEPLUG, INDICATOR HOLE
-
24040053 INDIC ''HOT TEMPERATURE''INDIC ''HOT TEMPERATURE''
-
24040054 INDIC ''NEUT./REV.''INDIC ''NEUT./REV.''
-
37511881 SCREWSCREW
-
47670086 NUTNUT
-
52460668 HARNESS, CENTER PANELHARNESS, CENTER PANEL
-
75242987-067 TUBE, HANDLEBAR, GEN 4, POD (BLACK)TUBE, HANDLEBAR, GEN 4, POD (BLACK)
-
82200774 HANDLEBAR BLOCK, KIT (INCL. BLOCKS AND 8,12,30)HANDLEBAR BLOCK, KIT (INCL. BLOCKS AND 8,12,30)
-
85630616-067 BLOCK, HANDLEBAR RETAINER (BLACK)BLOCK, HANDLEBAR RETAINER (BLACK)
-
97541933 NUT, BRASSNUT, BRASS
-
107555868 WASHER, LOCK (S.S.)WASHER, LOCK (S.S.)
-
117558212 WASHERWASHER
-
127515189 SCREWSCREW
-
133280291 CLAMP, BACK ELEC.SPEEDO 3.38''CLAMP, BACK ELEC.SPEEDO 3.38''
-
145433947-315A POD, HEADLGHT UPPER, BSC WETCAMOPOD, HEADLGHT UPPER, BSC WETCAMO
-
165432926 SPACER, SWITCH (LEFT)SPACER, SWITCH (LEFT)
-
174010262 SWITCH, HANDLEBAR H/L/O REV/ORSWITCH, HANDLEBAR H/L/O REV/OR
-
185431030 GRIP, HANDLEBAR (BLACK)GRIP, HANDLEBAR (BLACK)
-
195432952 PLUG, HOLEPLUG, HOLE
-
207517625 SCREW, SETSCREW, SET
-
215240586-067 BRACKET, POD MOUNTING (BLACK)BRACKET, POD MOUNTING (BLACK)
-
227517317 SCREWSCREW
-
234032079 KNOB, ADJUSTINGKNOB, ADJUSTING
-
245411120 BOOT, HEADLIGHTBOOT, HEADLIGHT
-
254032077 COLLAR, LOCKCOLLAR, LOCK
-
264032075 LENS AND REFLECTOR ASSY.LENS AND REFLECTOR ASSY.
-
262870448 BULB, QUARTZ.H/L INDYBULB, QUARTZ.H/L INDY
-
274032078 ROD, ADJUSTINGROD, ADJUSTING
-
285410163 O-RINGO-RING
-
297080902 CABLE, CHOKE FRICTIONCABLE, CHOKE FRICTION
-
292200188 CHOKE, CONTROL KITCHOKE, CONTROL KIT
-
307542122 NUT, LOCKNUT, LOCK
-
317670089 NUT, U-TYPENUT, U-TYPE
-
324010283 RECEPTACLE-POD MNT, 12 VOLTRECEPTACLE-POD MNT, 12 VOLT
-
337080631 CLIP, CABLE RETAINCLIP, CABLE RETAIN
-
347522021 SCREWSCREW
-
355433366-070 POD, HEADLIGHT LOWER (BLACK)POD, HEADLIGHT LOWER (BLACK)
-
364110264 SWITCH, IGNITION (INCL. KEY)SWITCH, IGNITION (INCL. KEY)
-
364010278 KEY BLANK (6700 AND 6800 SERIES) SEE NOTE:KEY BLANK (6700 AND 6800 SERIES) SEE NOTE:
-
375433534 KEY COVER-KEYSWITCHKEY COVER-KEYSWITCH
-
387080229 NUTNUT
-
394010298 SENSOR, HALL EFFECTSENSOR, HALL EFFECT
-
405132382 CAP-HALL SENSORCAP-HALL SENSOR
-
417517658 SCREWSCREW
