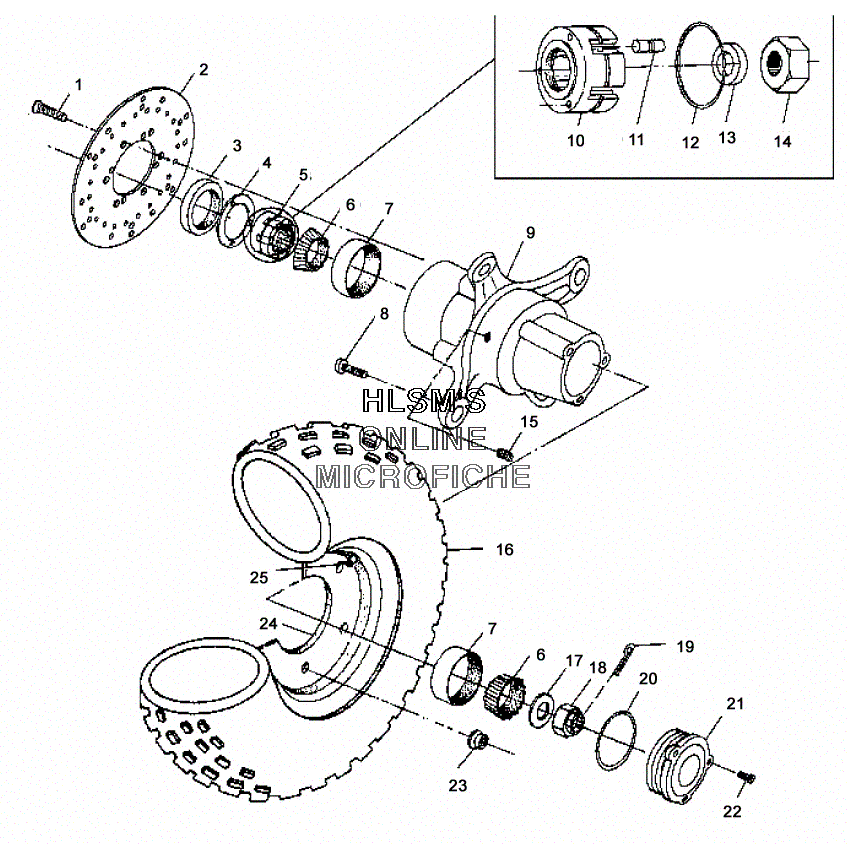

WHEEL - FRONT для Polaris SPORTSMAN 500 DUSE (A01CH50AD) - 2001 года выпуска
-
№АртикулНазвание
-
17512325 BOLTBOLT
-
25243676 DISC, BRAKEDISC, BRAKE
-
33610019 SEAL, HUB (FRONT)SEAL, HUB (FRONT)
-
45211148 PLATE, ARMATUREPLATE, ARMATURE
-
51520281 CLUTCH, HUB E/M (FRONT)CLUTCH, HUB E/M (FRONT)
-
63554506 BEARING, TAPERED ROLL.CONEBEARING, TAPERED ROLL.CONE
-
73554507 BEARING, TAPERED ROLL CUPBEARING, TAPERED ROLL CUP
-
87515523 STUDSTUD
-
91520243 HUB ASSY., SHRT (3-LOBE) W/BEARING RACE (INCL. 3,7,8)HUB ASSY., SHRT (3-LOBE) W/BEARING RACE (INCL. 3,7,8)
-
103250028 CAGE, ROLLCAGE, ROLL
-
113250010 ROLLSROLLS
-
123250032 SPRING, GARTERSPRING, GARTER
-
131321814 SPACERSPACER
-
143250030 CAMCAM
-
157052045 PLUG, PIPEPLUG, PIPE
-
165410947 TIRE (FRONT)TIRE (FRONT)
-
177556004 WASHERWASHER
-
187542810 NUT, SLOTTEDNUT, SLOTTED
-
197661401 COTTER PINCOTTER PIN
-
205410470 O-RINGO-RING
-
215432611 CAP, HUB 3-LOBE AWDCAP, HUB 3-LOBE AWD
-
227512027 SCREWSCREW
-
237542459 NUT, FLANGEDNUT, FLANGED
-
241520269-067 RIM (FRONT/BLACK)RIM (FRONT/BLACK)
-
251525017 VALVE, RIMVALVE, RIM
