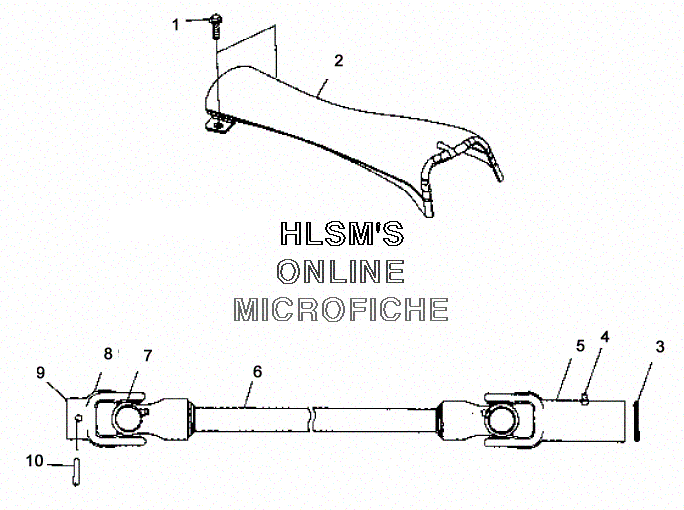

DRIVESHAFT - INTERMEDIATE для Polaris SPORTSMAN 6X6 (A01CL50AA) - 2001 года выпуска
-
№АртикулНазвание
-
17512232 BOLTBOLT
-
25433154 GUARD, PROP SHAFT FRONTGUARD, PROP SHAFT FRONT
-
35411092 O-RINGO-RING
-
47080424 FITTING, LUBEFITTING, LUBE
-
53260131 YOKEYOKE
-
61350072 SHAFT, PROP (94 DIA X 16.8)SHAFT, PROP (94 DIA X 16.8)
-
73260104 CROSS AND BEARING KITCROSS AND BEARING KIT
-
83260133 YOKEYOKE
-
91380169 SHAFT, PROP ASSY. (INCL. 5-8)SHAFT, PROP ASSY. (INCL. 5-8)
-
107661913 PIN, SPRINGPIN, SPRING
