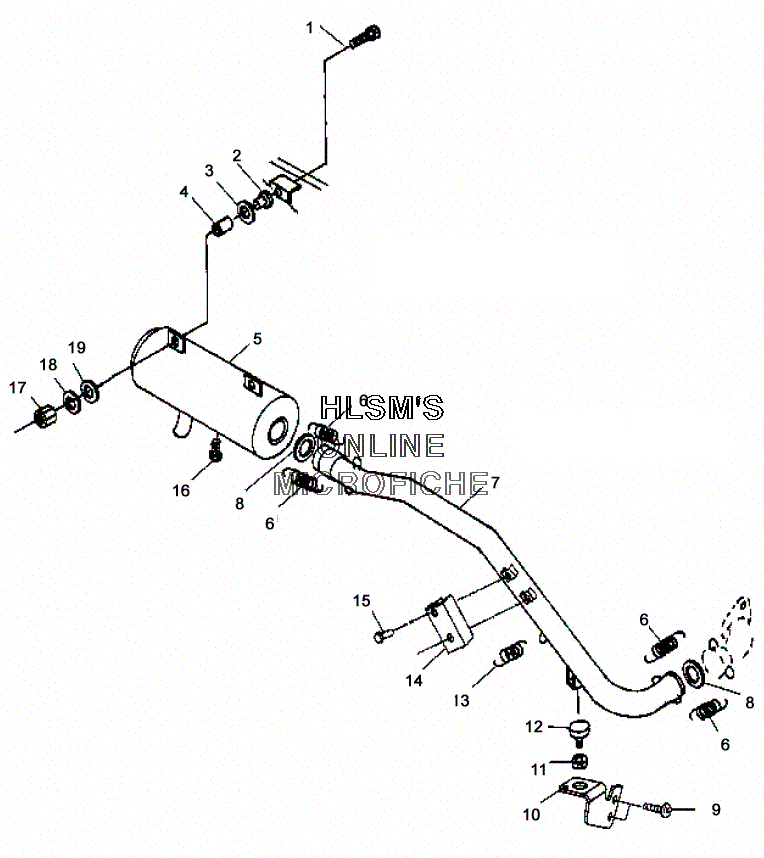

EXHAUST SYSTEM для Polaris SPORTSMAN 6X6 (A01CL50AA) - 2001 года выпуска
-
№АртикулНазвание
-
17515316 BOLTBOLT
-
25410241 DAMPENERDAMPENER
-
37555863 BUSHINGBUSHING
-
45010192 BUSHING, RES. MOUNTBUSHING, RES. MOUNT
-
51260989-029 SILENCER (BLACK)SILENCER (BLACK)
-
67041804 SPRING, EXHAUSTSPRING, EXHAUST
-
71260946-029 EXHAUST PIPE, 1.62 O.D (BLACK)EXHAUST PIPE, 1.62 O.D (BLACK)
-
85243518 SEAL, EXHAUSTSEAL, EXHAUST
-
97512232 BOLTBOLT
-
105242344-067 BRACKET, EXHAUST SUPPORT (BLACK)BRACKET, EXHAUST SUPPORT (BLACK)
-
117542301 NUT, HEXAGONNUT, HEXAGON
-
123110064 MOUNT, TORQUE-STOPMOUNT, TORQUE-STOP
-
137042029 SPRING, EXHAUSTSPRING, EXHAUST
-
145244014 SHIELD, HEAT EXHAUSTSHIELD, HEAT EXHAUST
-
157517615 SCREWSCREW
-
167512666 BOLTBOLT
-
177542324 NUTNUT
-
187555716 WASHERWASHER
-
195410436 WASHER, RUBBERWASHER, RUBBER
