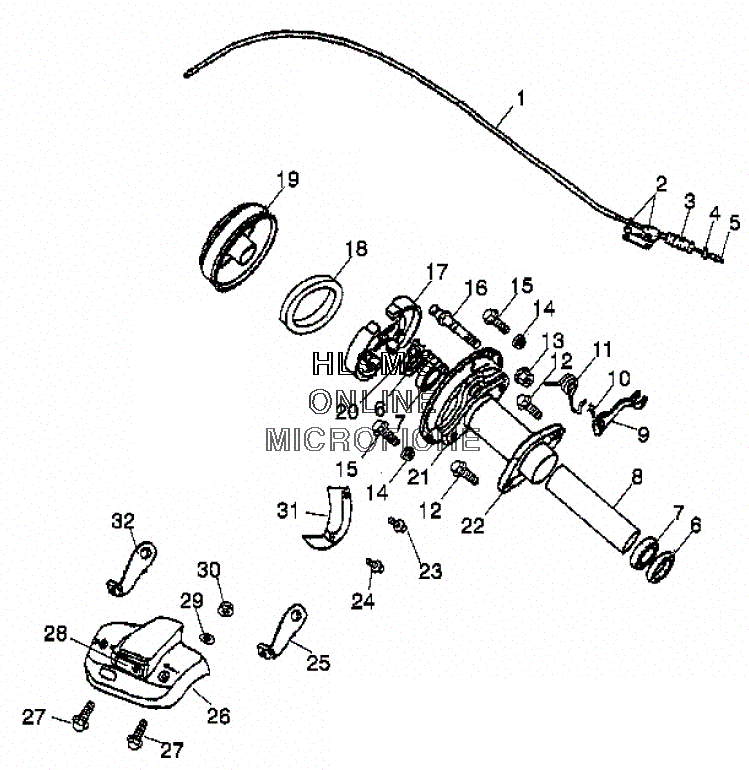

BRAKE - REAR для Polaris SPORTSMAN 90 (A01FA09CA) - 2001 года выпуска
-
№АртикулНазвание
-
10450438 CABLE, BRAKE (REAR)CABLE, BRAKE (REAR)
-
20450268 NUT, FLANGENUT, FLANGE
-
30450435 SPRING, CABLE, BRAKE (REAR)SPRING, CABLE, BRAKE (REAR)
-
40450437 FIXTURE, BRAKE (REAR)FIXTURE, BRAKE (REAR)
-
50450436 NUT, ADJUST, BRAKENUT, ADJUST, BRAKE
-
60450430 SEAL, OILSEAL, OIL
-
70450429 BEARING, NEEDLEBEARING, NEEDLE
-
80450428 TUBE, SPACERTUBE, SPACER
-
90450432 BRAKE, ASSY. (REAR)BRAKE, ASSY. (REAR)
-
100450433 BOLT, HEXAGONBOLT, HEXAGON
-
110450453 SPRING, BRAKE ARM (REAR)SPRING, BRAKE ARM (REAR)
-
120450451 BOLT, HEXAGONBOLT, HEXAGON
-
130450881 NUT, LOCK NYLONNUT, LOCK NYLON
-
140450529 NUT, FLANGENUT, FLANGE
-
150450452 BOLT, HEXAGONBOLT, HEXAGON
-
160450854 SHAFT, FIX BRAKE (REAR)SHAFT, FIX BRAKE (REAR)
-
170450434 SHOE, BRAKE (REAR)SHOE, BRAKE (REAR)
-
180450442 RUBBER, PROTECTIVERUBBER, PROTECTIVE
-
190450441 DRUM, BRAKE (REAR)DRUM, BRAKE (REAR)
-
200450431 SHAFT, CAM, BRAKE (REAR)SHAFT, CAM, BRAKE (REAR)
-
210450440 PLATE, BRAKE (REAR)PLATE, BRAKE (REAR)
-
220450427 SEAT, FIXED, AXLE (REAR)SEAT, FIXED, AXLE (REAR)
-
230450325 BOLT, HEXAGONBOLT, HEXAGON
-
240450298 BOLT, HEXAGONBOLT, HEXAGON
-
250450812 BRACKET, GUARD (RIGHT)BRACKET, GUARD (RIGHT)
-
260450751 COVER (REAR)COVER (REAR)
-
270450340 BOLT, HEXAGONBOLT, HEXAGON
-
280450834 REFLECTOR (REAR)REFLECTOR (REAR)
-
290450643 WASHER, PLAINWASHER, PLAIN
-
300450447 NUT, FLANGENUT, FLANGE
-
310450833 COVER, PROTECTIVECOVER, PROTECTIVE
-
320450813 BRACKET, GUARD (LEFT)BRACKET, GUARD (LEFT)
