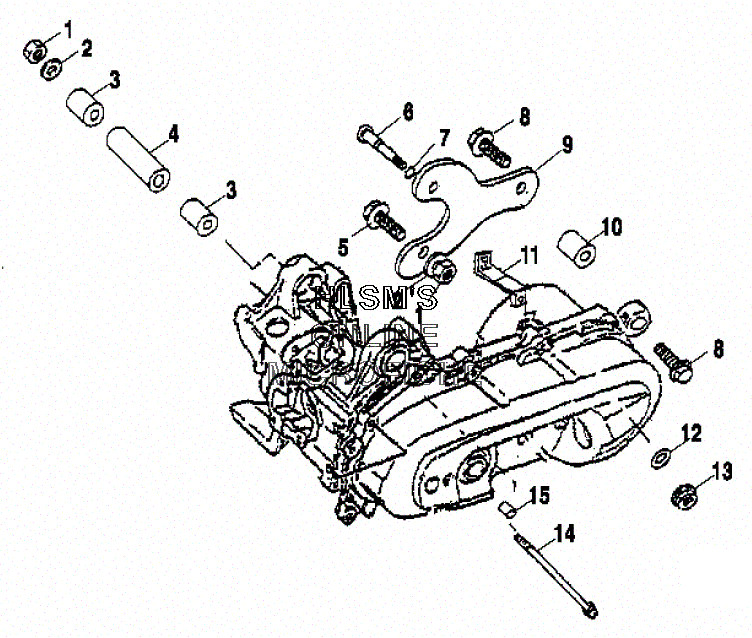

MOUNTING - ENGINE для Polaris SPORTSMAN 90 (A01FA09CA) - 2001 года выпуска
-
№АртикулНазвание
-
10450271 NUT, HEXAGONNUT, HEXAGON
-
20450286 WASHERWASHER
-
30450284 BUSHING, RUBBER 96400, 233538BUSHING, RUBBER 96400, 233538
-
40450283 TUBE, FIXED, ENGINE (FRONT)TUBE, FIXED, ENGINE (FRONT)
-
50450270 BOLT, HEXAGONBOLT, HEXAGON
-
60450266 SHAFT, FIXED, ENGINE BRACKETSHAFT, FIXED, ENGINE BRACKET
-
70450709 O-RINGO-RING
-
80450684 BOLT, HEXAGON WASHERBOLT, HEXAGON WASHER
-
90450269 BRACKET, ENGINEBRACKET, ENGINE
-
100450132 BUSHING, RUBBERBUSHING, RUBBER
-
110450287 PLATE, FIXED, OIL TANKPLATE, FIXED, OIL TANK
-
120450192 WASHERWASHER
-
130450268 NUT, FLANGENUT, FLANGE
-
140450285 BOLT, HEXAGONBOLT, HEXAGON
-
150450278 COLLARCOLLAR
