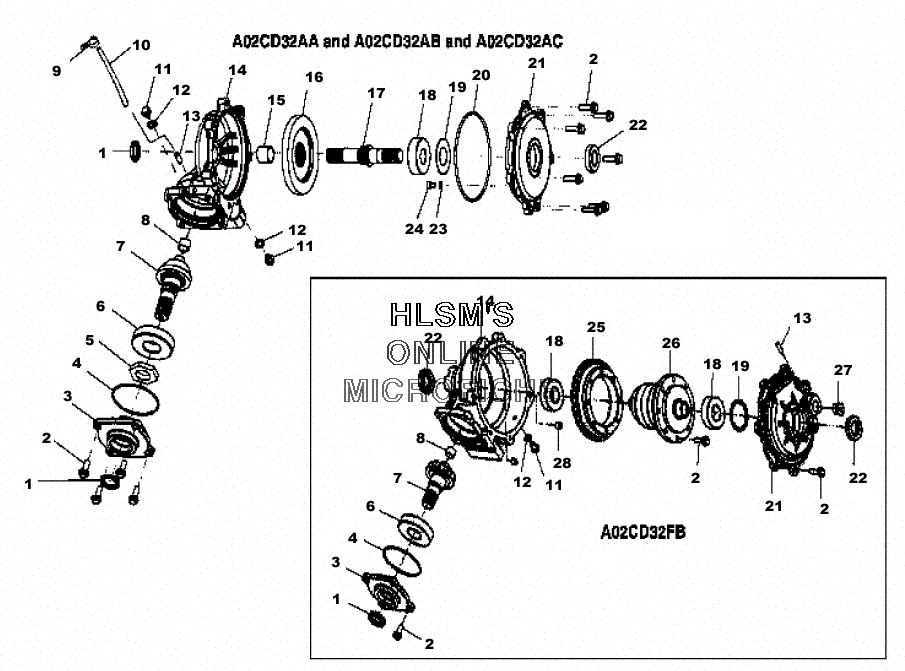

DIFFERENTIAL - FRONT для Polaris MAGNUM 325 4X4 (A02CD32AB) (MOSSY OAK CAMO) - 2002 года выпуска
-
№АртикулНазвание
-
13233319 SEALSEAL
-
23233252 SCREWSCREW
-
33233573 GEARCASE,COVERGEARCASE,COVER
-
43233588 O-RING 151O-RING 151
-
53233574 NUTNUT
-
63233589 BEARING,BALLBEARING,BALL
-
73233590 SHAFT,HYPOID 10T 7DP FSHAFT,HYPOID 10T 7DP F
-
83233591 BUSHINGBUSHING
-
97080756 CLIP,SNAP-INCLIP,SNAP-IN
-
108450003-1525 FUEL LINE,1/4 ID(1525 CM.)FUEL LINE,1/4 ID(1525 CM.)
-
113233253 PLUG-HEX FLANGEPLUG-HEX FLANGE
-
123233254 PLUG, WASHERPLUG, WASHER
-
133233524 TUBE,VENTTUBE,VENT
-
143233592 GEARCASE,FRONT HOUSINGGEARCASE,FRONT HOUSING
-
153233593 BUSHINGBUSHING
-
163233594 GEAR,BEVEL 37T 7DP FGEAR,BEVEL 37T 7DP F
-
173233595 SHAFT,OUTPUT,FRONTSHAFT,OUTPUT,FRONT
-
183233020 BEARINGBEARING
-
193233554 SHIMSHIM
-
203233596 O-RING 225O-RING 225
-
213233597 GEARCASE,COVER OUTPUTGEARCASE,COVER OUTPUT
-
223233248 SEAL-TRIPLE LIPSEAL-TRIPLE LIP
-
233233583 SHIM .450 X .265SHIM .450 X .265
-
243233582 THRUST BUTTONTHRUST BUTTON
-
281341253 GEARCASE ASM,FRONT (INCL. 1-24)GEARCASE ASM,FRONT (INCL. 1-24)
