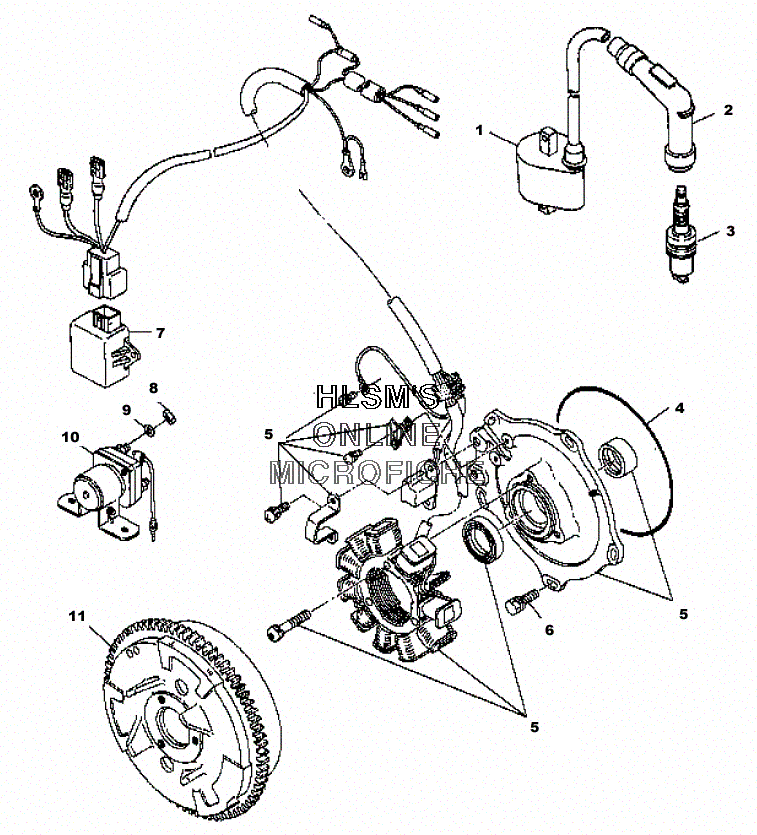

MAGNETO для Polaris MAGNUM 325 4X4 (A02CD32AB) (MOSSY OAK CAMO) - 2002 года выпуска
-
№АртикулНазвание
-
13086484 ASM-IGNITION COILASM-IGNITION COIL
-
23087037 CAP-SPARK PLUGCAP-SPARK PLUG
-
33084997 SPARKPLUG BKR6ESPARKPLUG BKR6E
-
43084978 O-RING *O-RING *
-
53086904 PLATE,ASMPLATE,ASM
-
63081657 BOLTANDWASHER ASM.BOLTANDWASHER ASM.
-
73086464 CDI SYSTEMCDI SYSTEM
-
83083073 NUTNUT
-
93080077 WASHER SPRINGWASHER SPRING
-
103085521 SOLENOID *SOLENOID *
-
113086457 FLYWHEEL W/RING GEARFLYWHEEL W/RING GEAR
