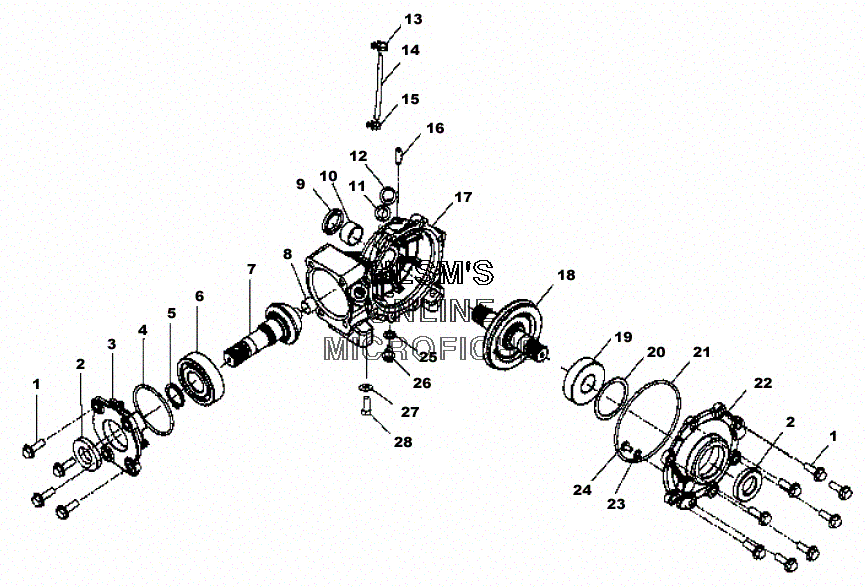

DIFFERENTIAL - FRONT для Polaris SCRAMBLER 400 4X4 (A02BG38CA) - 2002 года выпуска
-
№АртикулНазвание
-
13233252 SCREWSCREW
-
23233248 SEAL-TRIPLE LIPSEAL-TRIPLE LIP
-
33233701 INPUT COVER-FRONT HOUSINGINPUT COVER-FRONT HOUSING
-
43233700 O-RINGO-RING
-
53233699 RING-RETAININGRING-RETAINING
-
63233589 BEARING,BALLBEARING,BALL
-
73233726 PINION,INPUT,14TPINION,INPUT,14T
-
83233541 BUSHING,GARLOCKBUSHING,GARLOCK
-
93233319 SEALSEAL
-
103233697 BUSHINHG-GARLOCKBUSHINHG-GARLOCK
-
113233324 WASHERWASHER
-
123233711 PLUG,OIL FILLPLUG,OIL FILL
-
137080756 CLIP,SNAP-INCLIP,SNAP-IN
-
148450003-1525 FUEL LINE,1/4 ID(1525 CM.)FUEL LINE,1/4 ID(1525 CM.)
-
157080307 CLAMPCLAMP
-
163233524 TUBE,VENTTUBE,VENT
-
173233696 GEARCASEGEARCASE
-
183233725 SHAFT,OUTPUT (29 TEETH)SHAFT,OUTPUT (29 TEETH)
-
193233020 BEARINGBEARING
-
203233554 SHIMSHIM
-
213233693 O-RINGO-RING
-
223233724 COVER,OUTPUTCOVER,OUTPUT
-
233233583 SHIM .450 X .265SHIM .450 X .265
-
243233582 THRUST BUTTONTHRUST BUTTON
-
253233254 PLUG, WASHERPLUG, WASHER
-
263233253 PLUG-HEX FLANGEPLUG-HEX FLANGE
-
277552603 WASHERWASHER
-
287512492 SCREWSCREW
-
281341323 GEARCASE,FRONT,ASSY. (INCL. 1-12,16-26)GEARCASE,FRONT,ASSY. (INCL. 1-12,16-26)
