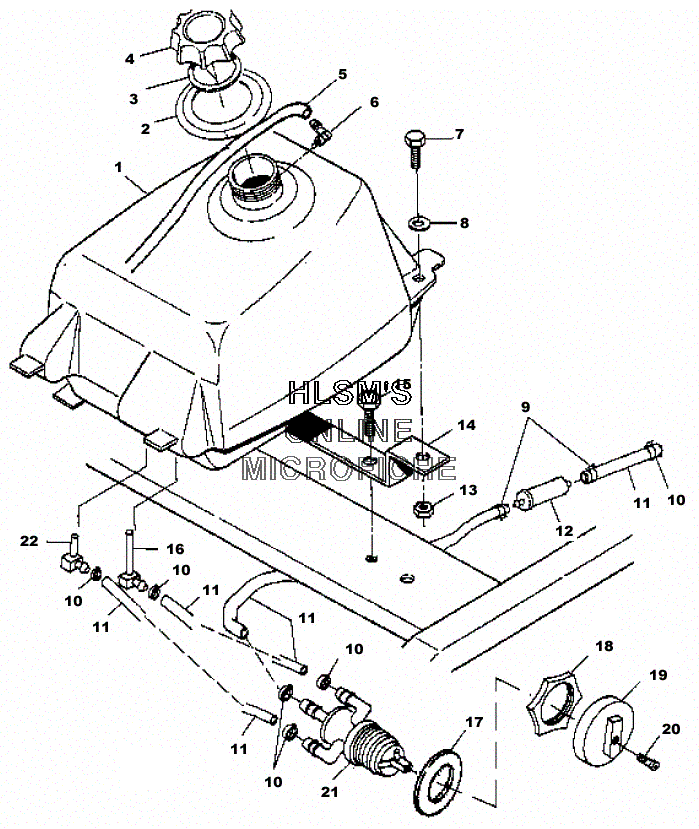

FUEL TANK для Polaris SCRAMBLER 400 4X4 (A02BG38CA) - 2002 года выпуска
-
№АртикулНазвание
-
11240082 FUELTANK,90-,PERPENDICULR (INCL. 6,16,22)FUELTANK,90-,PERPENDICULR (INCL. 6,16,22)
-
25410842 GROMMET,FUELTANKGROMMET,FUELTANK
-
35810144 GASKET-GAS CAPGASKET-GAS CAP
-
45433687 CAP,GAS TANKCAP,GAS TANK
-
58360009-600 FUEL LINE,1/8 ID,600 CM.FUEL LINE,1/8 ID,600 CM.
-
65431053 VENT, TANKVENT, TANK
-
77512310 SCREWSCREW
-
87555734 WASHERWASHER
-
97080534 CLAMP,SPRING,CLAMP,SPRING,
-
107080003 CLAMP,HOSECLAMP,HOSE
-
118450040-600 FUEL LINE,1/4 ID(600 CM.)FUEL LINE,1/4 ID(600 CM.)
-
122530008 FILTER FUEL,FILTER FUEL,
-
137542324 NUTNUT
-
145220916-067 BRKT,R.TANK MT (BLACK)BRKT,R.TANK MT (BLACK)
-
157512208 SCREWSCREW
-
167052147 ELBOW, MAINELBOW, MAIN
-
175242977 SPACER,FUEL VALVESPACER,FUEL VALVE
-
185432733 NUT,FUELVALVE,NUT,FUELVALVE,
-
195432559 KNOB,FUEL VALVEKNOB,FUEL VALVE
-
207517505 SCREWSCREW
-
217052154 VALVE,3-WAY,HORIZ PORTSVALVE,3-WAY,HORIZ PORTS
-
227052148 FITTING,FUEL OUT,90DEG,RES,ZFITTING,FUEL OUT,90DEG,RES,Z
