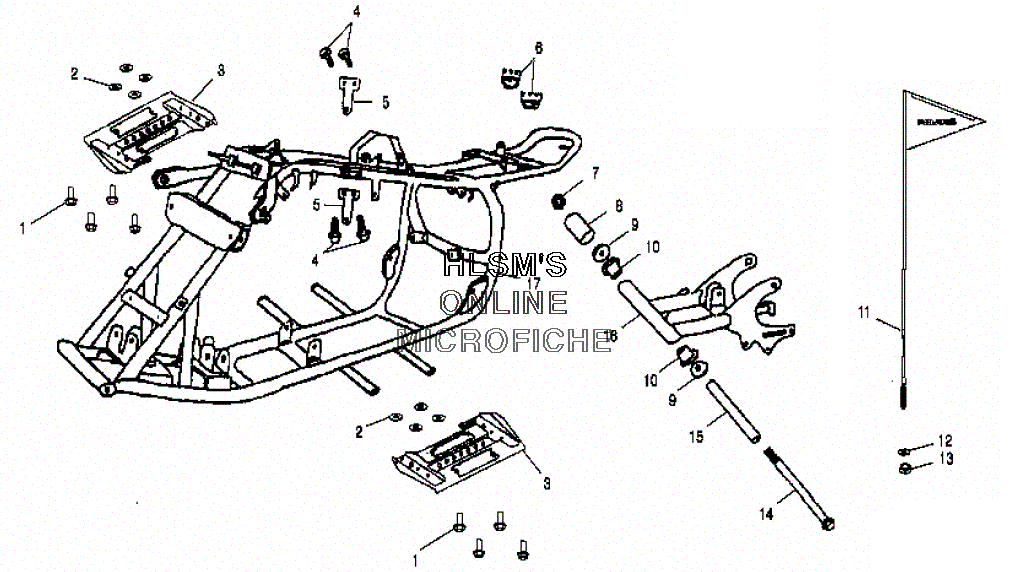

FRAME W/ SWING ARM для Polaris SCRAMBLER 90X (A02EA09CC) (YELLOW) - 2002 года выпуска
-
№АртикулНазвание
-
10450325 BOLT-HEXBOLT-HEX
-
20450613 GROMMET,FOOTRESTGROMMET,FOOTREST
-
30450591 FOOTWELL,BOTTOM BOARDFOOTWELL,BOTTOM BOARD
-
40450887 BOLT-HEX WFBOLT-HEX WF
-
50450299 PLATE,ENGINE BRACKETPLATE,ENGINE BRACKET
-
60450290 RUBBER,SEATRUBBER,SEAT
-
70450878 NUT-LOCK,NYLONNUT-LOCK,NYLON
-
80450304 SLEEVE,RUBBERSLEEVE,RUBBER
-
90450303 COVER,SWING ARM SEALCOVER,SWING ARM SEAL
-
100450302 SEAT,GREASE CONTAINSEAT,GREASE CONTAIN
-
110450993 FLAG, VISUALFLAG, VISUAL
-
120450844 WASHER-SPRINGWASHER-SPRING
-
130450845 NUT-HEXNUT-HEX
-
140450305 BOLT-HEXBOLT-HEX
-
150450301 TUBE,SPACERTUBE,SPACER
-
160450943 SWING ARM,ASSY.SWING ARM,ASSY.
-
170450978 FRAME-MAINFRAME-MAIN
