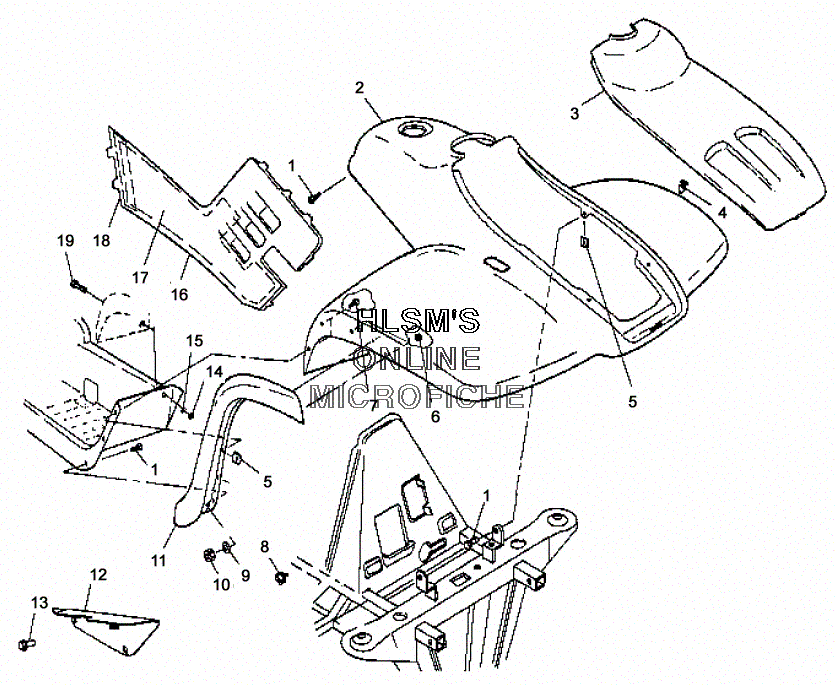

FENDER - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 400 (A02CH42AC) (MEDIUM (YELLOW) - 2002 года выпуска
-
№АртикулНазвание
-
17512232 BOLTBOLT
-
22632299-053 CAB,FRONT,SVC,MED YELLOWCAB,FRONT,SVC,MED YELLOW
-
35432088-053 COVER,FRONT,MD.YELLOWCOVER,FRONT,MD.YELLOW
-
47670085 CLIP,SPRINGCLIP,SPRING
-
57670057 NUT, SPEEDNUT, SPEED
-
67670135 NUT-SPEED,3/16NUT-SPEED,3/16
-
77517312 SCREWSCREW
-
84020139 CLIP, PLASTICCLIP, PLASTIC
-
97555931 WASHERWASHER
-
107542122 NUT-LOCKNUT-LOCK
-
115431798-070 GUARD-MUD,FRONT,LH,BLKGUARD-MUD,FRONT,LH,BLK
-
115431799-070 GUARD-MUD,FRONT,RH,BLKGUARD-MUD,FRONT,RH,BLK
-
125244913-067 GUARD-SPLASH,SPORTMAN,LH,BLKGUARD-SPLASH,SPORTMAN,LH,BLK
-
125244914-067 GUARD-SPLASH,SPORTMAN,RH,BLKGUARD-SPLASH,SPORTMAN,RH,BLK
-
137621509 RIVET,PLASTI-LOC.RIVET,PLASTI-LOC.
-
147541925 NUTNUT
-
157555792 WASHERWASHER
-
162632289-053 ASM-PANEL/FOAM,LH,MED YELLOWASM-PANEL/FOAM,LH,MED YELLOW
-
165812138 FOAM-LH,PANELFOAM-LH,PANEL
-
162620085-053 PANEL/FOIL,ASM,RH,MD.YLWPANEL/FOIL,ASM,RH,MD.YLW
-
175810996 FOIL,FOAM,SIDEPANELFOIL,FOAM,SIDEPANEL
-
185811491 FOIL,RH,SIDEPANEL,GEN IVFOIL,RH,SIDEPANEL,GEN IV
-
197512085 SCREWSCREW
