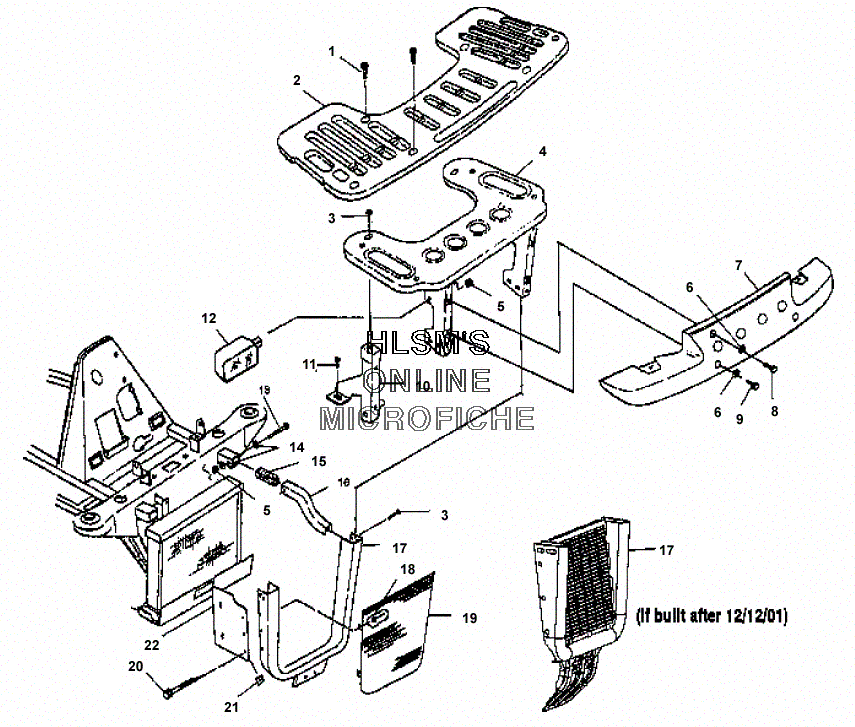

RACK AND BUMPER MOUNTING - FRONT для Polaris SPORTSMAN 400 (A02CH42AC) (MEDIUM (YELLOW) - 2002 года выпуска
-
№АртикулНазвание
-
17517685 SCREWSCREW
-
22670180-070 RACK,FRONT,BLK (INCL. WARNING DECAL)RACK,FRONT,BLK (INCL. WARNING DECAL)
-
37515399 SCREWSCREW
-
42200775 WELD-FRONT RACK SUPPORT,BLKWELD-FRONT RACK SUPPORT,BLK
-
57542324 NUTNUT
-
67555954 WASHERWASHER
-
75432155-070 BUMPER,BLK.BUMPER,BLK.
-
87515391 BOLTBOLT
-
97515390 BOLTBOLT
-
101013744-067 WELD-SUPPORT RACK,FRONT,LH,BLKWELD-SUPPORT RACK,FRONT,LH,BLK
-
101013746-067 WELD-SUPPORT,RACK,FRONT,RH,BLKWELD-SUPPORT,RACK,FRONT,RH,BLK
-
117512232 BOLTBOLT
-
122431014 H/L ASM,LH,35WH/L ASM,LH,35W
-
122431015 H/L ASM,RH,35WH/L ASM,RH,35W
-
124030059 BULB,H/L,27W.HOBBSBULB,H/L,27W.HOBBS
-
137512329 BOLTBOLT
-
147558402 WASHER STEELWASHER STEEL
-
155810467 PLUG, FRAMEPLUG, FRAME
-
165244729-067 EXTENSION-FRAME,LH,BLKEXTENSION-FRAME,LH,BLK
-
165244730-067 EXTENSION-FRAME,RH,BLKEXTENSION-FRAME,RH,BLK
-
171013772-067 WELD-BRUSH GUARD,BLKWELD-BRUSH GUARD,BLK
-
187621330 RIVET, POPRIVET, POP
-
195240591-067 GRILL,BRUSHGUARD,BLK. (IF BUILT BEFORE 12/12/01)GRILL,BRUSHGUARD,BLK. (IF BUILT BEFORE 12/12/01)
-
207512097 SCREWSCREW
-
217670094 NUTNUT
-
225433923 SHIELD-RADIATOR,SIDE,LHSHIELD-RADIATOR,SIDE,LH
-
225433924 SHEILD-RADIATOR,SIDE,RHSHEILD-RADIATOR,SIDE,RH
