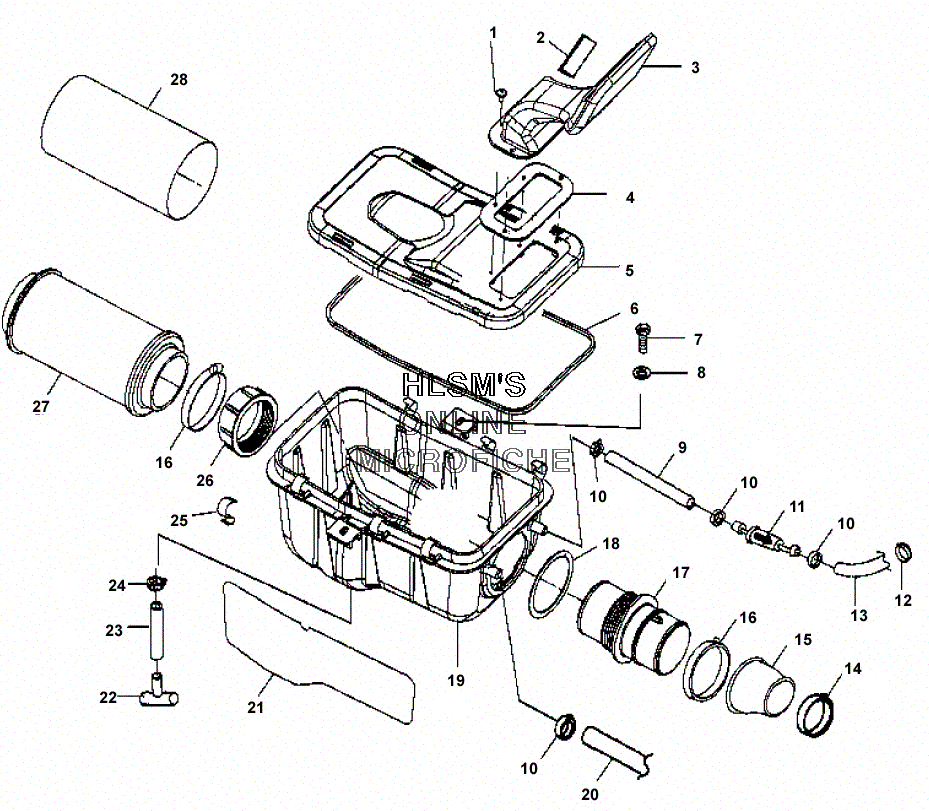

AIR BOX ASSY. для Polaris SPORTSMAN 6X6 (A02CL50AA) - 2002 года выпуска
-
№АртикулНазвание
-
17527815 SCREW,TAPPING,SCREW,TAPPING,
-
25810455 PAD,RACK MOUNTPAD,RACK MOUNT
-
35433395 DUCT,INLET,AIR BOX COVERDUCT,INLET,AIR BOX COVER
-
45411422 GASKET,INTAKEGASKET,INTAKE
-
55432868 COVER,AIRBOXCOVER,AIRBOX
-
65811482 SEAL,AIRBOX COVERSEAL,AIRBOX COVER
-
77515179 SCREWSCREW
-
87558301 WASHERWASHER
-
98450073-600 LINE,BREATHER,3/8 ID.LINE,BREATHER,3/8 ID.
-
107080699 CLAMP,HOSECLAMP,HOSE
-
112530029 FILTER,BREATHER,IN LINEFILTER,BREATHER,IN LINE
-
127080694 CLAMP,HOSE,SPRINGCLAMP,HOSE,SPRING
-
135411921 HOSE-BREATHER,NITRILEHOSE-BREATHER,NITRILE
-
147080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
155411540 BOOT,CARB,425 PVTBOOT,CARB,425 PVT
-
167080413 CLAMP,BAND,NARROWCLAMP,BAND,NARROW
-
175432473 DUCT,CARB.INLETDUCT,CARB.INLET
-
185830128 GASKET,CARB.IN.DUCTGASKET,CARB.IN.DUCT
-
195433387 BOX,AIR INTAKE,4-STROKEBOX,AIR INTAKE,4-STROKE
-
215811650 FOIL,AIRBOXFOIL,AIRBOX
-
225432377 PLUG, TRAPPLUG, TRAP
-
238450059-150 FUEL LINEFUEL LINE
-
247080650 CLAMP,HOSECLAMP,HOSE
-
255242044 CLIP,AIR BOXCLIP,AIR BOX
-
265432601 COLLAR,CARB INLETCOLLAR,CARB INLET
-
277080595 FILTER,AIR INTAKEFILTER,AIR INTAKE
-
285811633 FILTER,PRECLEAN.SLEEVEFILTER,PRECLEAN.SLEEVE
